247.203791 (13AP79XT099) - Craftsman T1900 Lawn Tractor (2015) Engine Accessories Parts Diagram

T1900 Lawn Tractor

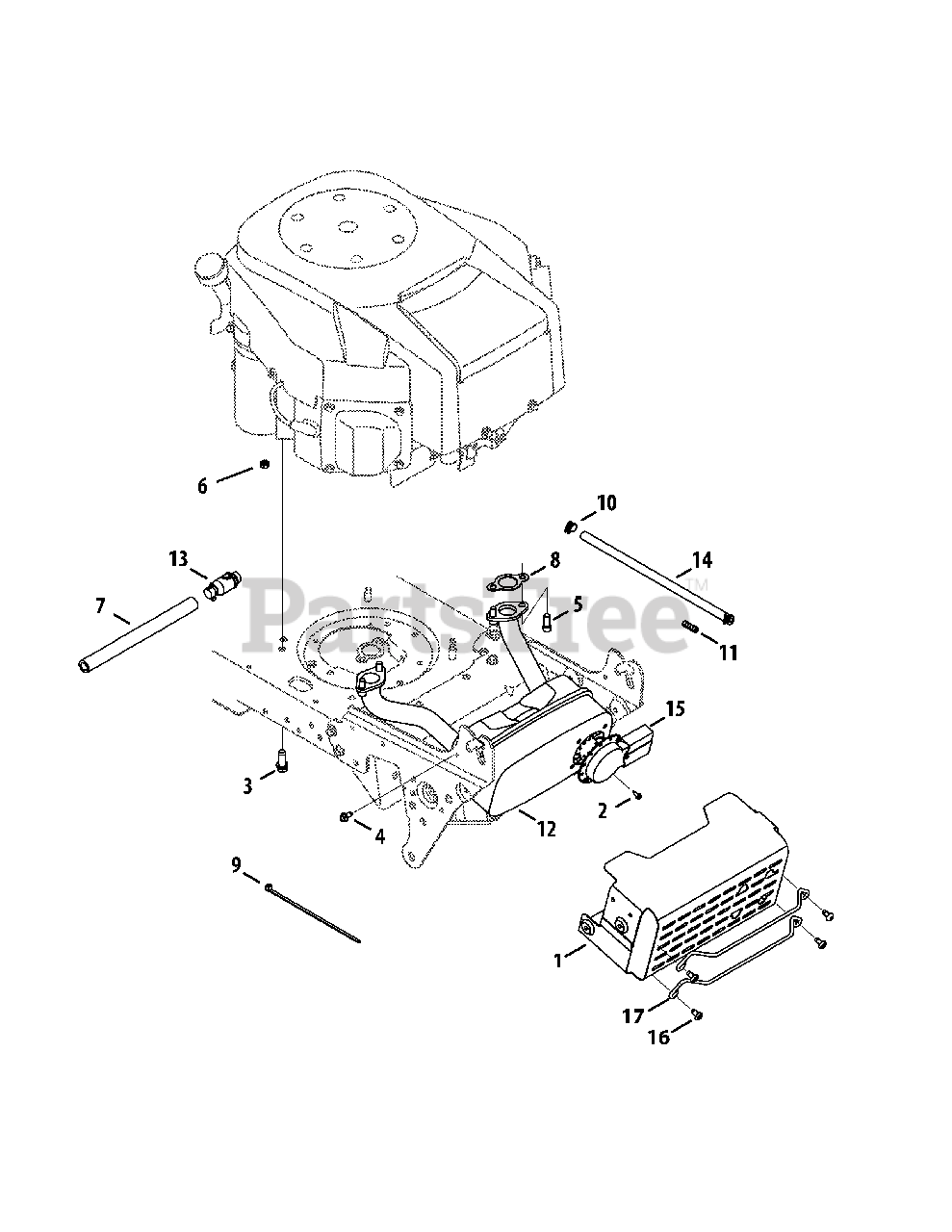

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549A-0637

Shield Ass’y, Muffler
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, Ab, #8-18, 0.500,

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683C

Screw, Self-tapping, 3/8-16, 1.000,

$6.49

$

In Stock, only 4 left!

0

4

MTD 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Screw, Socket Head, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

MTD 751-3141-14

Hose, Extension, Oil Drain

$11.99

$

In Stock, Qty 6

0

8

MTD KH-24-041-49-S

Gasket, Exhaust,Kohler

$

$

Not available

9

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

10

MTD 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

11

MTD 751-12089-28

Vent Hose

$8.99

$

In Stock, only 1 left!

0

12

MTD 751-10528B

Muffler, Kohler Twin
(Superseded to 951-10528B)

$160.99

$

In Stock, only 2 left!

0

13

MTD 951-10517A

Drain, Oil

$24.99

$

Usually ships in 3-6 days

0

14

MTD 751-10349-13

Hose, Fuel, Low Permeation, 1/4

$17.99

$

In Stock, only 3 left!

0

15

MTD 751-11053A

Muffler Deflector Long
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

16

MTD 710-05070A

Pan Torx Screw 1/4

$6.99

$

In Stock, Qty 7

0

17

MTD 747-06404A-0637

Muffler Guard Rod

$7.49

$

Usually ships in 3-6 days
