247.203776 (13A278XS299) - Craftsman T1200 Lawn Tractor (2018) Seat Adjustment Parts Diagram

T1200 Lawn Tractor

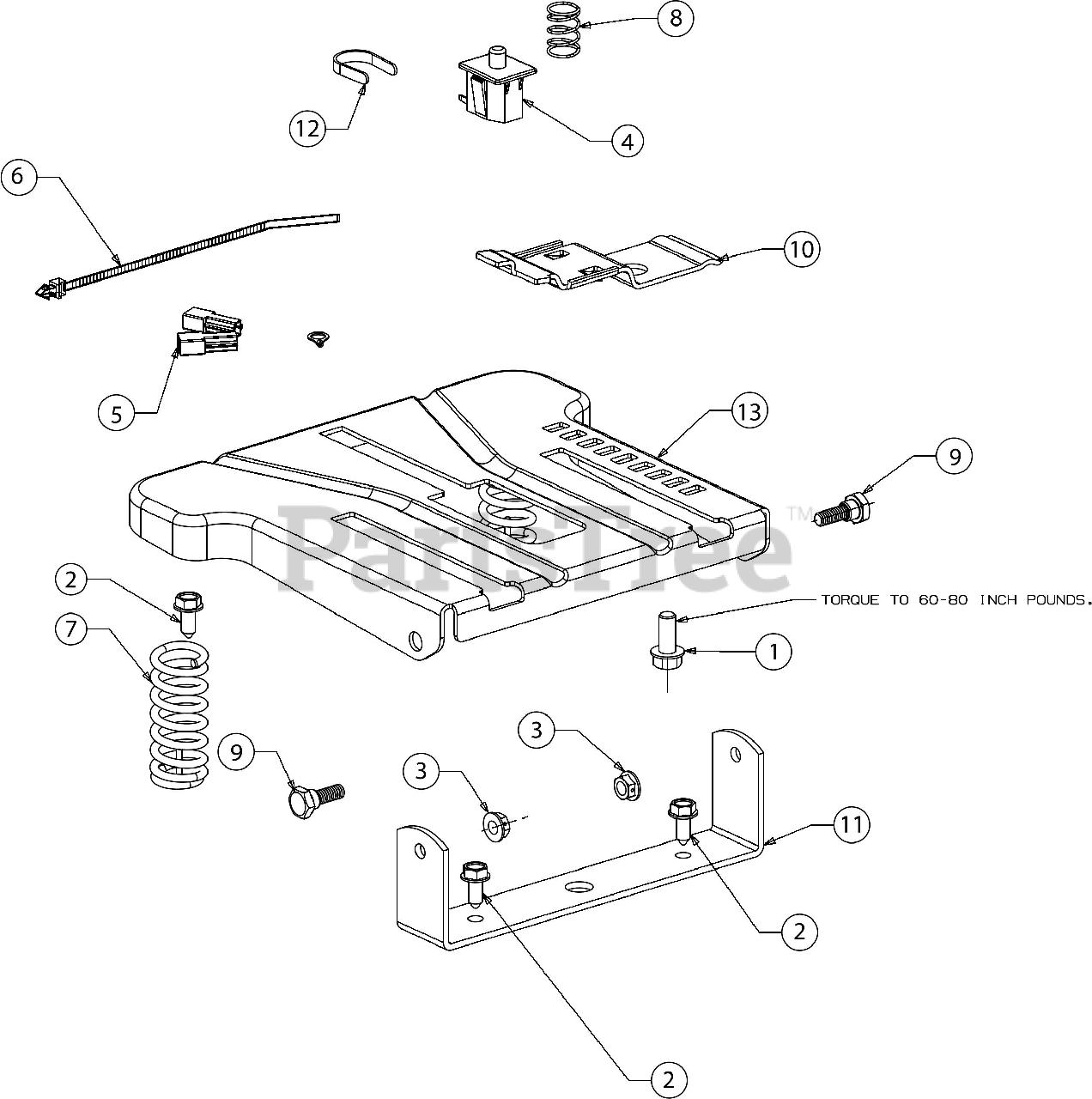

Seat Adjustment Parts Diagram

  • Title

1

MTD 710-04482

SCREW 3/8-16 X .875 GR5

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-04484

SCREW 5/16-18 X .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

4

MTD 925-05013

SEAT SWITCH

$31.99

$

In Stock, only 4 left!

0

5

MTD 725-05277

HARNESS

$34.99

$

Usually ships in 3-6 days

0

6

MTD 926-0154

PUSH MOUNT TIE

$6.49

$

Usually ships in 3-6 days

0

7

MTD 732-04035

COMPRESSION SPRING

$10.99

$

In Stock, only 1 left!

0

8

MTD 732-04563

COMPRESSION SPRING

$5.49

$

In Stock, Qty 20+

0

9

MTD 938-0296

SHOULDER SCREW .437
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

10

MTD 783-06050

SEAT ADJUST LEVER

$10.99

$

Usually ships in 3-6 days

0

11

MTD 783-06088A

SEAT PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-06088A-4021

Seat Pivot Bracket, Cub Yellow - CUB YELLOW 2 (4021)

$21.99

$

In Stock, only 3 left!

0

MTD 783-06088A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$21.99

$

In Stock, only 3 left!

0

MTD 783-06088A-0606

Seat Pivot Bracket - MAJESTIC ORANGE (0606)

$21.99

$

In Stock, only 3 left!

0

MTD 783-06088A-0691

Seat Pivot Bracket - BLACK JACK (0691)

$21.99

$

In Stock, only 3 left!

0

MTD 783-06088A-0638

BRACKET-SEAT PIVOT - MTD/TROY-BILT RED (0638)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-06088A-0650

BRACKET-SEAT PIVOT - RED METALLIC (0650)

$20.99

$

Usually ships in 3-6 days

0

MTD 783-06088A-0665

BRACKET-SEAT PIVOT - YARDMAN GREEN (0665)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-06088A-4015

BRACKET-SEAT PIVOT - FIRE RED (4015)

$21.99

$

In Stock, only 3 left!

0

$20.99

$

Usually ships in 3-6 days

0

12

MTD 783-06448

RETAINING CLIP

$5.99

$

In Stock, only 3 left!

0

13

MTD 783-06840-0637

SEAT MOUNT BRACKET

$37.99

$

Usually ships in 3-6 days

0
