247.203773 (13A278XS299) - Craftsman T1200 Lawn Tractor (2015) Drive & Rear Wheels Parts Diagram

T1200 Lawn Tractor

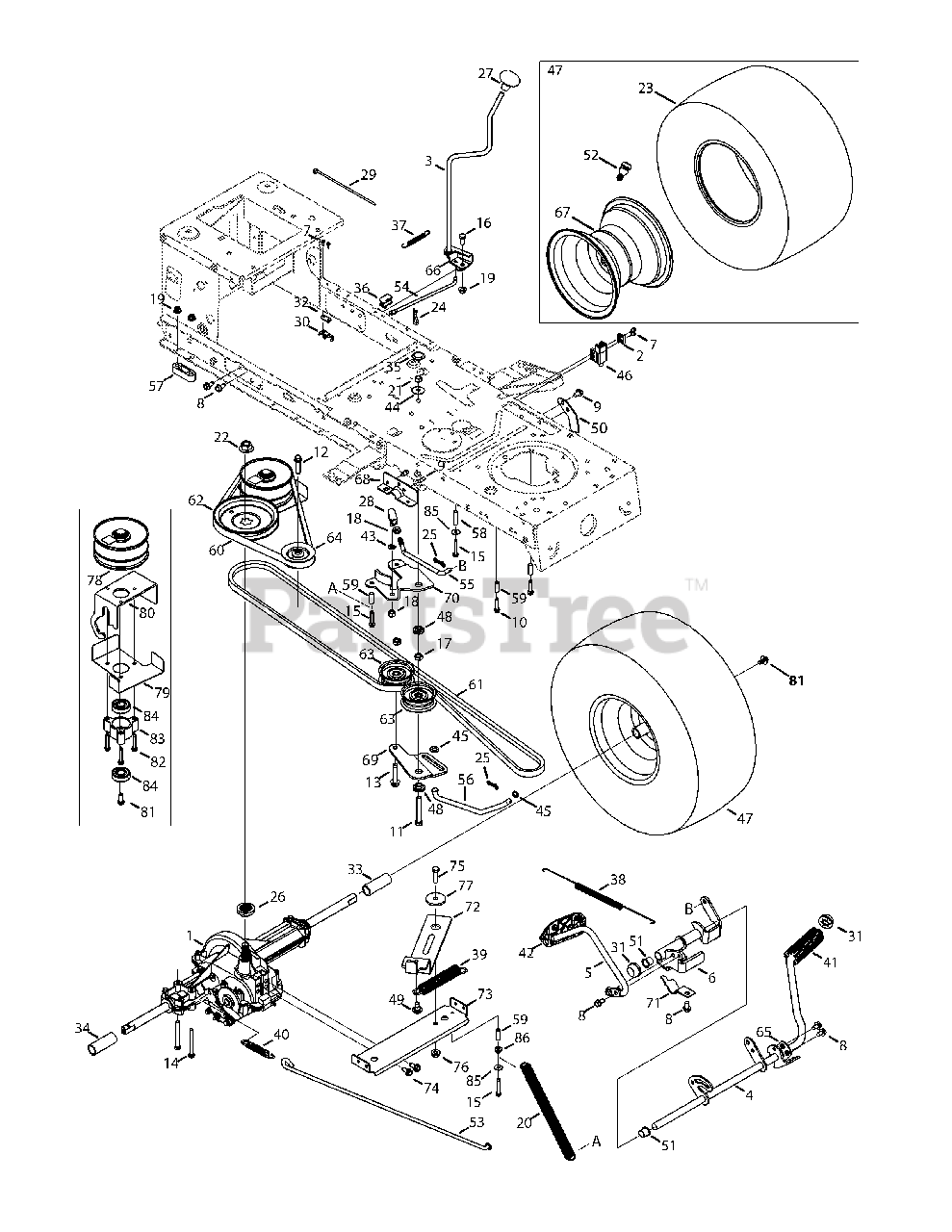

Drive & Rear Wheels Parts Diagram

  • Title

1

MTD 918-04566A

Transmission Drive Assembly
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

MTD 17962

Plate Switch

$4.99

$

In Stock, only 3 left!

0

3

MTD 647-04266

Shaft Lever Assembly
(Superseded to 647-04266A)

$26.99

$

In Stock, only 1 left!

0

4

MTD 947-04201A-0637

Pedal Assembly, drive

$47.99

$

Usually ships in 3-6 days

0

5

MTD 647-04203A-0637

Pedal Assembly, control

$20.99

$

In Stock, only 1 left!

0

6

MTD 683-04736

Pedal Bracket Assembly

$40.99

$

In Stock, only 2 left!

0

7

MTD 710-0227

Screw, 8-18:0.500

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0604A

Screw, 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0809

Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 19

0

11

MTD 710-0859

Hex Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

12

MTD 710-1007

Screw, 3/8-16 x 1.500

$6.49

$

In Stock, only 1 left!

0

13

MTD 710-1858A

Screw, 3/8-16 x 1.750

$3.99

$

In Stock, only 1 left!

0

14

MTD 710-1266

Hex Screw, 5/16-18 x .625

$9.99

$

Usually ships in 3-6 days

0

15

MTD 710-1026

Screw, 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

16

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

17

MTD 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 13

0

19

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

MTD 732-05186

Spring Extension, 1.0 OD x 11.125

$13.99

$

In Stock, only 1 left!

0

21

MTD 912-3000

Nut, 3/8-16, Centerlock
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

22

MTD 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 1 left!

0

23

MTD 734-04241-0901

Tire, 20 x 8 x 8 Rd. Sh.

$63.99

$

In Stock, only 1 left!

0

24

MTD 914-0209

Cotter Pin INT- .125 DIA

$3.99

$

In Stock, only 2 left!

0

25

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

26

MTD 718-04407

Pulley Hub, 5/8 SPLINE

$12.99

$

In Stock, only 1 left!

0

27

MTD 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

28

MTD 923-3018

Ball joint

$16.99

$

In Stock, Qty 20+

0

29

MTD 725-0157

Cable tie

$3.99

$

In Stock, only 2 left!

0

30

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, only 1 left!

0

31

MTD 726-0214

Push Cap, 5/8

$10.99

$

In Stock, only 3 left!

0

32

MTD 926-0320

Plate Insulator Nut

$6.99

$

In Stock, Qty 11

0

33

MTD 731-04602

Sleeve, .758 x .821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

34

MTD 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

35

MTD 731-06330

Plug, 7/8

$4.99

$

Usually ships in 3-6 days

0

36

MTD 731-06894

Shift Plate Bearing

$6.49

$

In Stock, only 1 left!

0

37

MTD 732-04488

Spring Extension, .38 OD x 3.25 LG

$6.49

$

In Stock, only 3 left!

0

38

MTD 732-04612

Spring Extension, .70 OD X 12.00

$16.99

$

In Stock, only 1 left!

0

39

MTD 732-04616B

Spring Extension, .97 Od X 6.18 Lg

$14.99

$

In Stock, only 2 left!

0

40

MTD 732-0716D

Spring Extension, .59 OD x 4.00 LG

$13.99

$

In Stock, only 1 left!

0

41

MTD 735-0239

Foot Pad, 4.0 Long
(Superseded to 735-0239A)

$12.99

$

Usually ships in 3-6 days

0

42

MTD 735-04272

Control Pad

$7.99

$

Usually ships in 3-6 days

0

43

MTD 936-0169

Lock Washer 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

44

MTD 736-3040

Flat Washer, .406 x 1.920 x .060

$6.49

$

In Stock, Qty 8

0

45

MTD 936-0185

Flat Washer, .375 X .738 X .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

46

MTD 725-04363

Switch Interlock

$15.99

$

In Stock, Qty 15

0

47

MTD 634-04324-0961

Wheel Assembly, 20 x 8 x 8 Rd. Sh.

$146.99

$

Usually ships in 3-6 days

0

48

MTD 738-0372B

Shoulder Spacer, 1.00 X .38 X .38

$9.49

$

In Stock, Qty 20+

0

49

MTD 738-04091A

Shoulder Screw, .43 x .29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

50

MTD 783-06807A-0637

Stop Pedal Plate

$4.49

$

Usually ships in 3-6 days

0

51

MTD 741-0495

Flng Bearing .63 Id x .695 Od X .60

$4.99

$

In Stock, Qty 20+

0

52

MTD 934-0255

Valve, tubeless Air

$4.49

$

In Stock, Qty 20+

0

53

MTD 747-05188

Brake Rod

$12.99

$

Usually ships in 3-6 days

0

54

MTD 747-05243

Shift Rod, 46"

$11.99

$

In Stock, only 3 left!

0

55

MTD 747-05596

Idler Adjustment Rod

$13.99

$

In Stock, only 1 left!

0

56

MTD 747-05415

Transmission Bypass Rod

$14.99

$

In Stock, only 1 left!

0

57

MTD 948-0334

Spacer, T-Axle .68

$10.99

$

In Stock, only 1 left!

0

58

MTD 750-04456

Spacer, .260 X .372 X 1.420 Lg

$7.49

$

In Stock, only 4 left!

0

59

MTD 750-0566A

Spacer, .260 X .375 X 1.030 Lg

$9.99

$

In Stock, only 1 left!

0

60

MTD 954-04208A

V Belt, 5L 40.9 Poly

$45.99

$

In Stock, Qty 20+

0

61

MTD 954-0467A

V Belt, 5L, 90.93 Poly

$50.99

$

In Stock, Qty 20+

0

62

MTD 956-04002

V Pulley 7.25 DIA SPUN

$27.99

$

In Stock, Qty 20+

0

63

MTD 756-04224

Idler Pulley

$26.99

$

In Stock, Qty 20+

0

64

MTD 756-04325

Idler Pulley

$24.99

$

In Stock, Qty 20+

0

65

MTD 783-04536B-0637

Pedal Support Bracket

$6.49

$

Usually ships in 3-6 days

0

66

MTD 783-04595A

Shaft Adjust Bracket

$10.99

$

In Stock, only 4 left!

0

67

MTD 634-04369-4042

Rim Assembly

$165.99

$

Usually ships in 3-6 days

0

68

MTD 783-06562A-0637

Frame Pedal Bracket, Rh

$4.99

$

Usually ships in 3-6 days

0

69

MTD 783-06769

Center Idler Bracket

$9.99

$

In Stock, only 1 left!

0

70

MTD 783-06592A

Idler Bracket
(Superseded to 783-06592B)

$16.99

$

In Stock, only 1 left!

0

71

MTD 783-06641A

Pedal Support Bracket

$8.49

$

Usually ships in 3-6 days

0

72

MTD 753-06662

Idler Bracket Assembly

$22.99

$

In Stock, only 4 left!

0

73

MTD 683-04606

Bracket Assembly
(Superseded to 783-06568A)

$23.99

$

Usually ships in 3-6 days

0

74

MTD 710-1260A

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

75

MTD 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 9

0

76

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 16

0

77

MTD 738-04162C

Shoulder Spacer, .8840 X .190

$13.99

$

In Stock, Qty 20+

0

78

MTD 956-04015A

Variable Speed Pulley Assembly
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

79

MTD 683-04522

Belt Keepr Assembly
(Superseded to 783-06227A)

$16.99

$

Usually ships in 3-6 days

0

80

MTD 683-04612-0637

Bracket Assembly
(Superseded to 783-06587A)

$34.99

$

Usually ships in 3-6 days

0

81

MTD 710-05339A

Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

82

MTD 710-0778

Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 2 left!

0

83

MTD 718-04261

Bearing Cup

$20.99

$

In Stock, only 2 left!

0

84

MTD 941-0600

Ball Bearing, 17 x 40 x 12

$25.99

$

In Stock, Qty 20+

0

85

MTD 736-3090

Flat Washer, .260 x .720 x .060

$6.99

$

In Stock, Qty 11

0

86

MTD 738-04483

Shoulder Spacer, .375 x .625 x .20

$3.99

$

Usually ships in 3-6 days

0

MTD 925-04432H

Wiring Harness (Not Shown)
(Superseded to 925-04432M)

$143.99

$

Usually ships in 3-6 days

0
