247.203753 (13AL78XT299) - Craftsman T1600 Lawn Tractor (2015) Engine Accessories Parts Diagram

T1600 Lawn Tractor

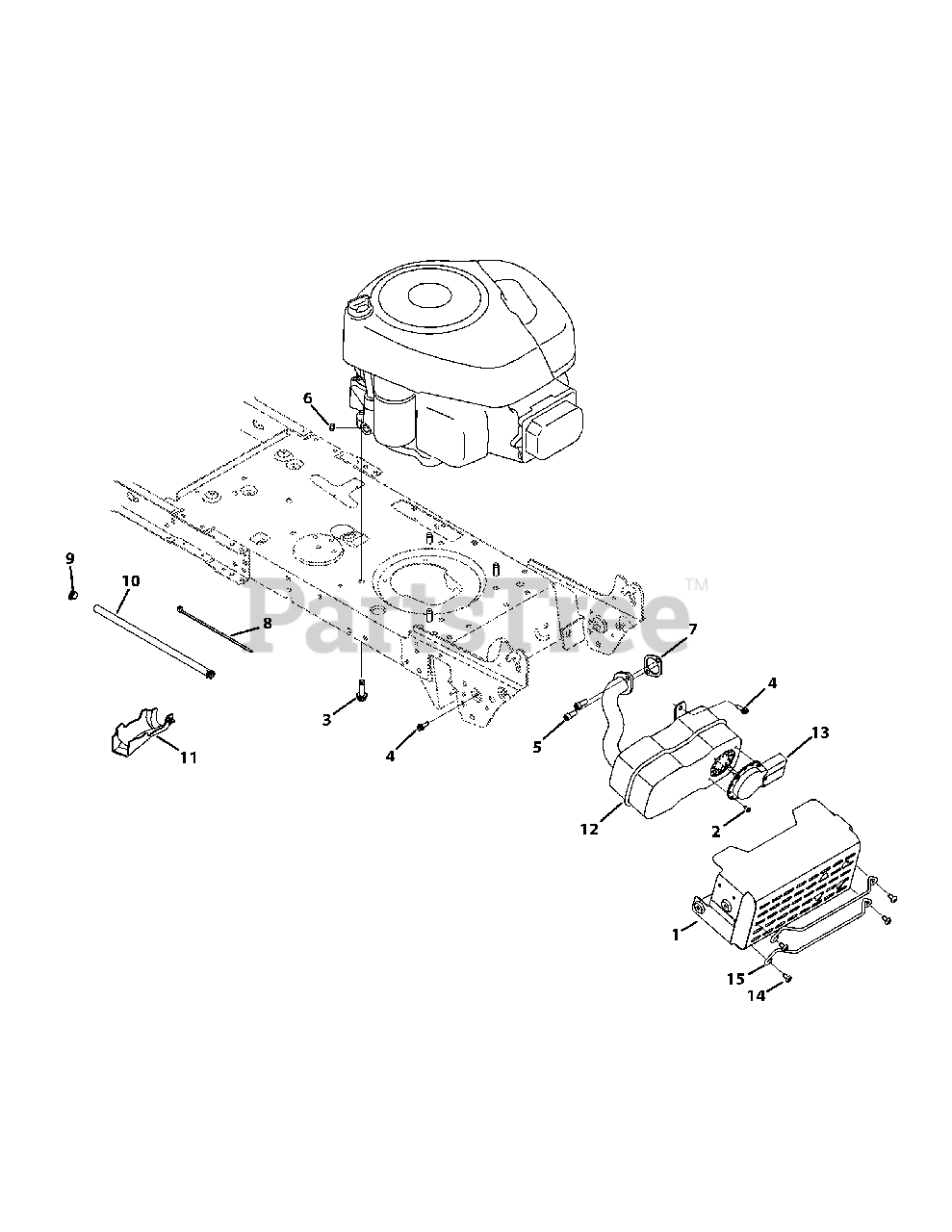

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549A-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683C

Screw, 3/8-16 x 1.0

$6.49

$

In Stock, only 4 left!

0

4

MTD 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Socket Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

MTD BS-692236

Exhaust Gasket, 10 HP Briggs

$5.49

$

In Stock, Qty 20+

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0205

Clamp Hose, .490 diameter

$3.99

$

In Stock, Qty 20+

0

10

MTD 751-10349-28

Fuel Hose, Low Permeation

$41.99

$

In Stock, only 1 left!

0

11

MTD 731-05628

Oil Drain Sleeve

$8.49

$

In Stock, only 1 left!

0

12

MTD 751-10448D

Muffler, Single Inlet
(Superseded to 951-10448D)

$

$

Not available

13

MTD 751-11053A

Muffler Deflector Long
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

14

MTD 710-05070A

Pan Torx Screw 1/4

$6.99

$

In Stock, Qty 7

0

15

MTD 747-06404A-0637

Muffler Guard Rod

$7.49

$

Usually ships in 3-6 days

0
