247.203733 (13AD78XS099) - Craftsman T1400 Lawn Tractor (2016) Seat Adjustment Parts Diagram
T1400 Lawn Tractor

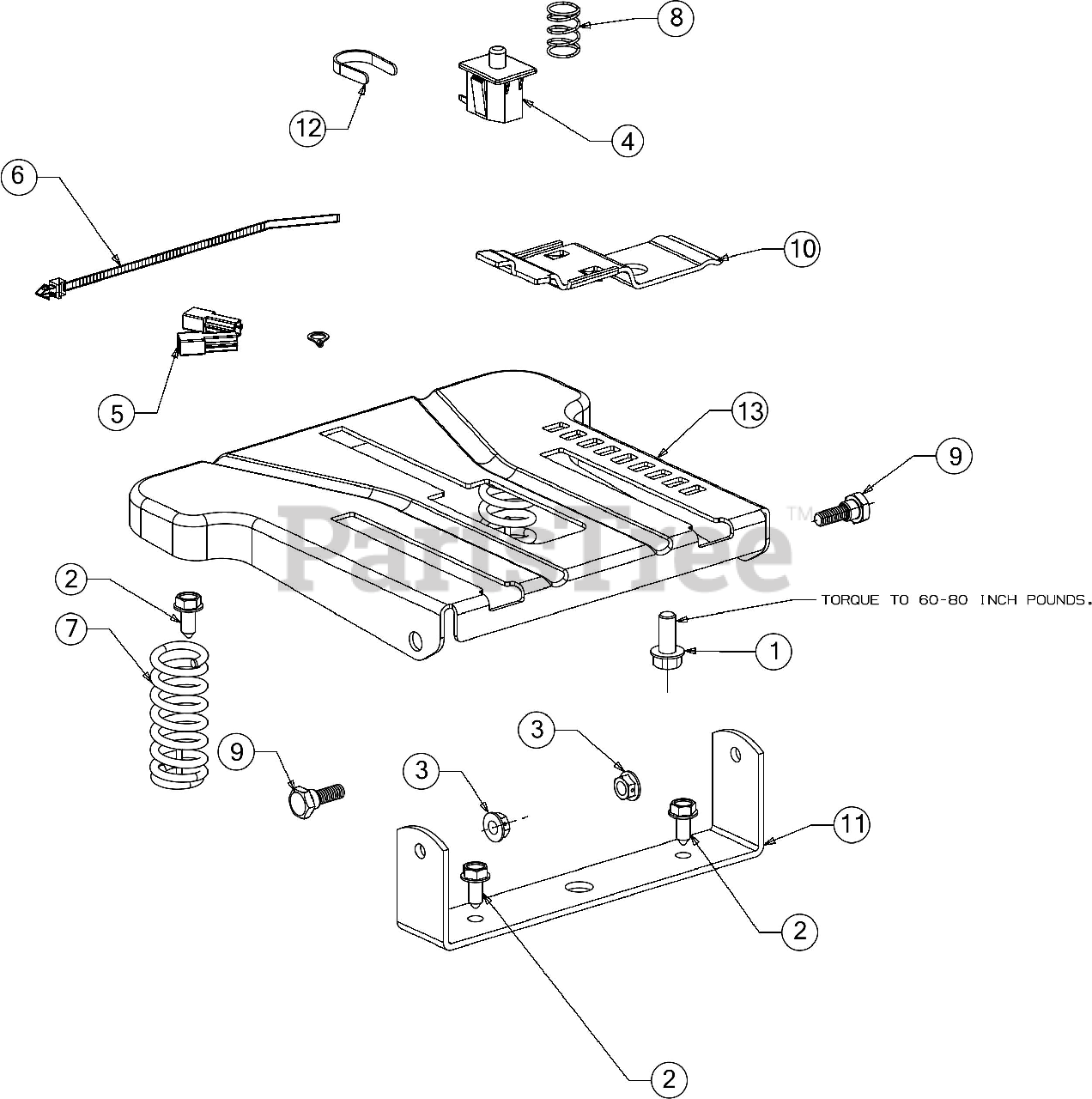

Seat Adjustment Parts Diagram
MTD 710-04482
SCREW 3/8-16 X .875 GR5
$4.49
$
In Stock, Qty 20+
MTD 710-04484
SCREW 5/16-18 X .750
$3.99
$
In Stock, Qty 20+
MTD 712-3004A
HEX FLANGE NUT
$3.99
$
In Stock, Qty 20+
MTD 925-05013
SEAT SWITCH
$31.99
$
In Stock, only 3 left!
MTD 725-05277
HARNESS
$34.99
$
Usually ships in 3-6 days
MTD 926-0154
PUSH MOUNT TIE
$6.49
$
Usually ships in 3-6 days
MTD 732-04035
COMPRESSION SPRING
$10.99
$
In Stock, only 1 left!
MTD 732-04563
COMPRESSION SPRING
$5.49
$
In Stock, Qty 20+
$4.49
$
In Stock, Qty 20+
MTD 783-06050
SEAT ADJUST LEVER
$10.99
$
Usually ships in 3-6 days
MTD 783-06088A-0637
SEAT PIVOT BRACKET
$21.99
$
In Stock, only 3 left!
MTD 783-06448
RETAINING CLIP
$5.99
$
In Stock, only 3 left!
MTD 783-06840-0637
SEAT MOUNT BRACKET
$37.99
$
Usually ships in 3-6 days
