247.203710 (13A277XS299) - Craftsman T1000 Lawn Tractor (2014) Engine Assembly Parts Diagram

T1000 Lawn Tractor

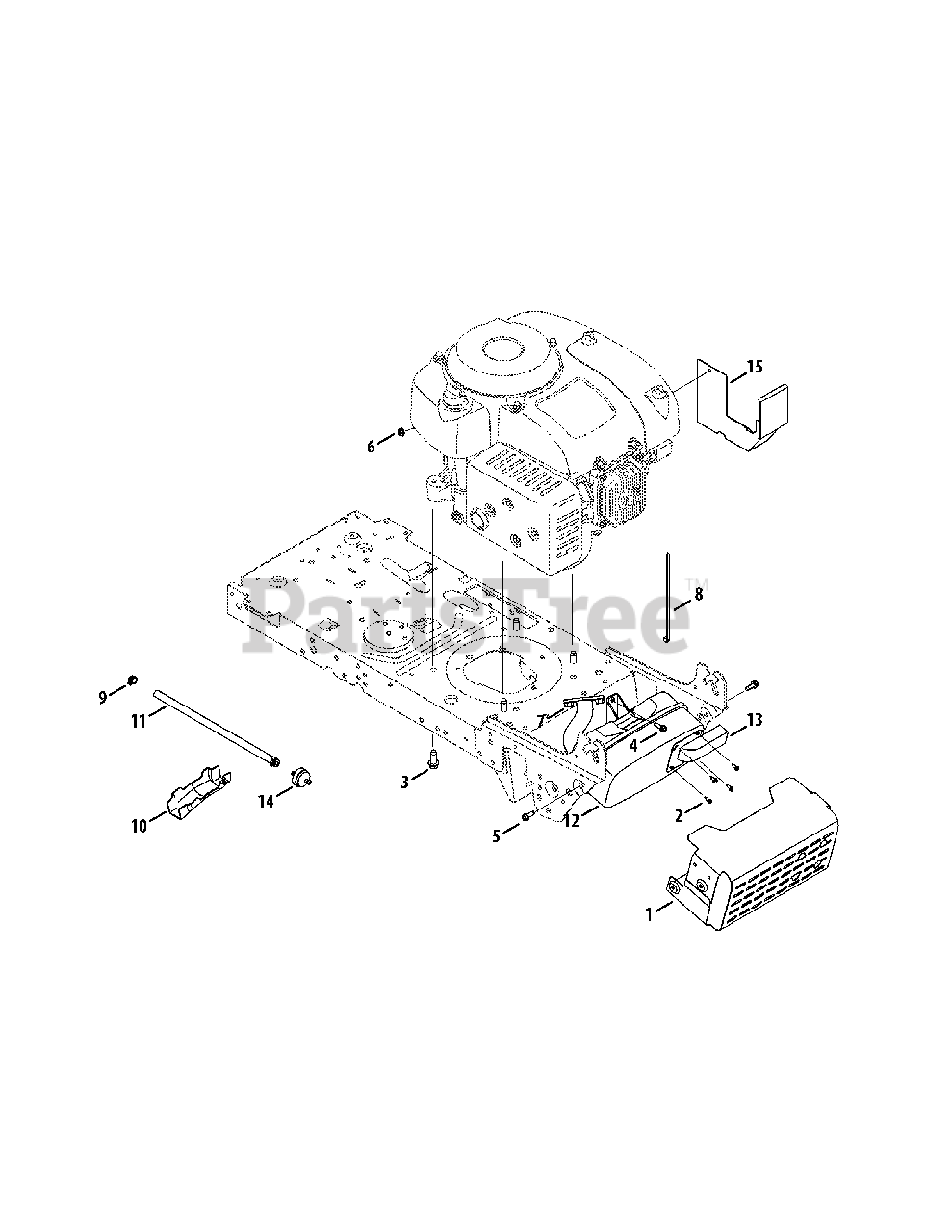

Engine Assembly Parts Diagram

  • Title

1

MTD 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

1

MTD 710-05070A

Tan Torx Screw 1/4

Note: Not Shown

$6.99

$

In Stock, Qty 7

0

1

MTD 747-06404

Muffler Shield Rod
(Superseded to 747-06404A-0637)

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 15

0

3

MTD 710-04683A

Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

4

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-3086

Flange Nut, M8-1.25

$4.49

$

In Stock, only 2 left!

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

9

MTD 726-0205

Clamp Hose, .490 diameter

$3.99

$

In Stock, Qty 18

0

10

MTD 731-05628

Oil Drain Sleeve

$8.49

$

In Stock, only 2 left!

0

11

MTD 751-10349-28

Fuel Hose, Low Permeation

$41.99

$

In Stock, only 1 left!

0

12

MTD 751-14527

Muffler
(Superseded to 951-14527)

$123.99

$

In Stock, only 1 left!

0

13

MTD 751-11053A

Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0

14

MTD 951-3013

Fuel Filter

$5.49

$

In Stock, Qty 20+

0

15

MTD 783-08122

Deflector Bracket

$19.99

$

Usually ships in 3-6 days

0

MTD 952Z4P90HUA

Engine
(Superseded to 952Z4P90HUD)

Note: (See breakdown)

$1834.99

$

Usually ships in 3-6 days
