247.203703 (13A277XS099) - Craftsman T1000 Lawn Tractor (2015) Seat & Fender Parts Diagram

T1000 Lawn Tractor

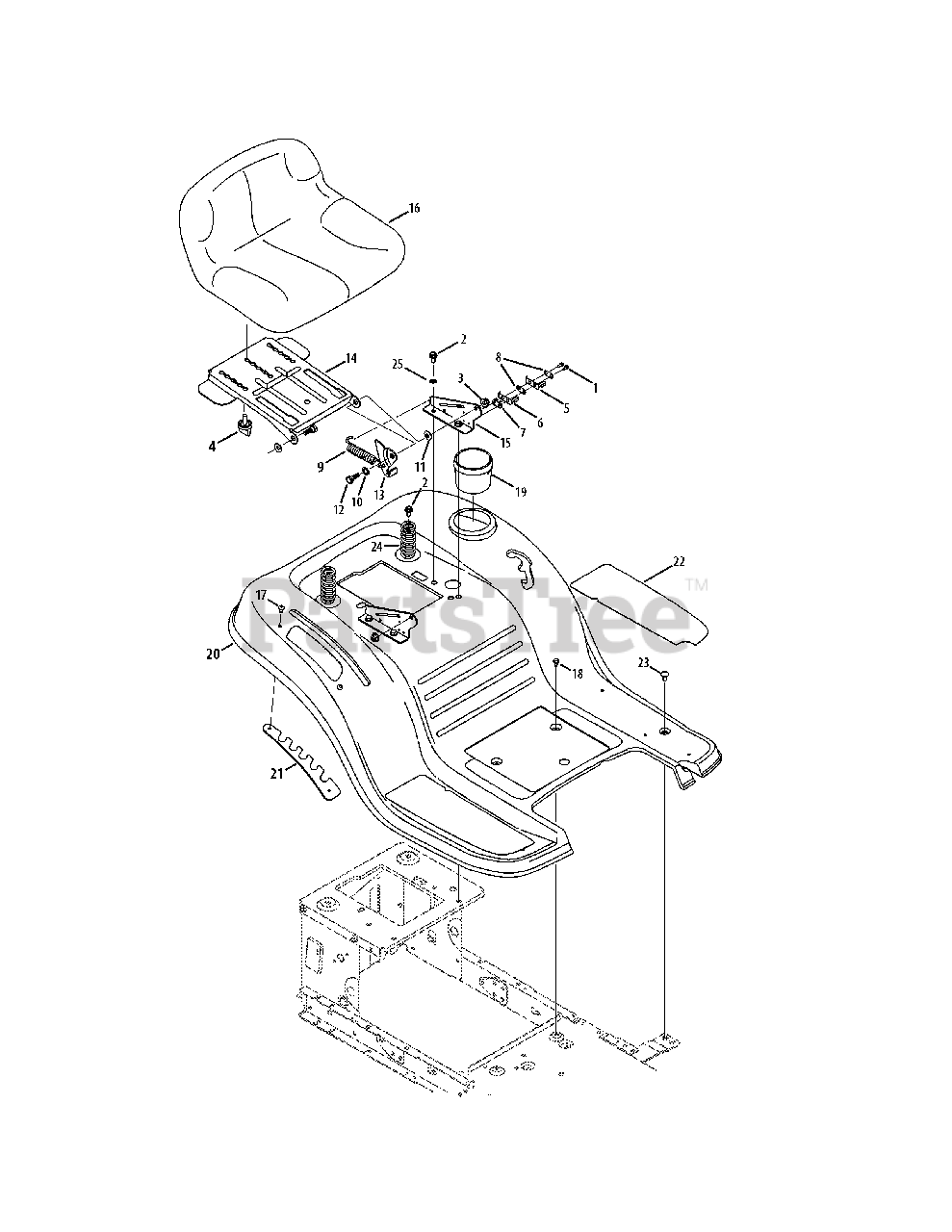

Seat & Fender Parts Diagram

  • Title
1

MTD 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-04061

Knob, 3/8-16 x .875

$5.49

$

In Stock, Qty 20+

0

5

MTD 925-1308A

Outer Seat Spring

$

$

Not available

6

MTD 725-1439

Inner Seat Spring

$8.49

$

In Stock, Qty 10

0

7

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

8

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

9

MTD 732-1184

Extension Spring

$11.99

$

In Stock, only 1 left!

0

10

MTD 936-0108

Flat Washer, .510 x .750 x .033

$6.99

$

In Stock, only 4 left!

0

11

MTD 736-0242

Flat Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

12

MTD 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

13

MTD 783-0209D

Lift Seat Bracket

$16.99

$

In Stock, only 1 left!

0

14

MTD 783-04081D-0637

Seat Pivot Bracket

$41.99

$

In Stock, only 1 left!

0

15

MTD 783-1489D-0637

Seat Mounting Bracket

$23.99

$

In Stock, only 1 left!

0

16

MTD 757-04124

Low Back Seat
(Superseded to 757-05230)

$194.99

$

In Stock, only 1 left!

0

17

MTD 710-05070A

Screw, 1/4-20 x .500

$6.99

$

In Stock, Qty 7

0

18

MTD 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

19

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

20

MTD 783-04587D-4043

Fender
(Superseded to 783-04587E-4043)

$392.99

$

Usually ships in 3-6 days

0

21

MTD 783-04843-0637

Lift Adjuster Bracket

$37.99

$

Usually ships in 3-6 days

0

22

MTD 723-04026

Abrasive Foot Pad, LH

$33.99

$

Usually ships in 3-6 days

0

22

MTD 723-04025

Abrasive Foot Pad, RH

$33.99

$

In Stock, only 1 left!

0

23

MTD 710-0134

Carriage Screw, .62: 1/4-20

$4.49

$

In Stock, Qty 20+

0

24

MTD 732-0735A

Spring, Compress., 1.314 x 2.55

$29.99

$

In Stock, Qty 5

0

25

MTD 736-0607

Loack Washer, 5/16

$3.99

$

In Stock, Qty 20+

0
