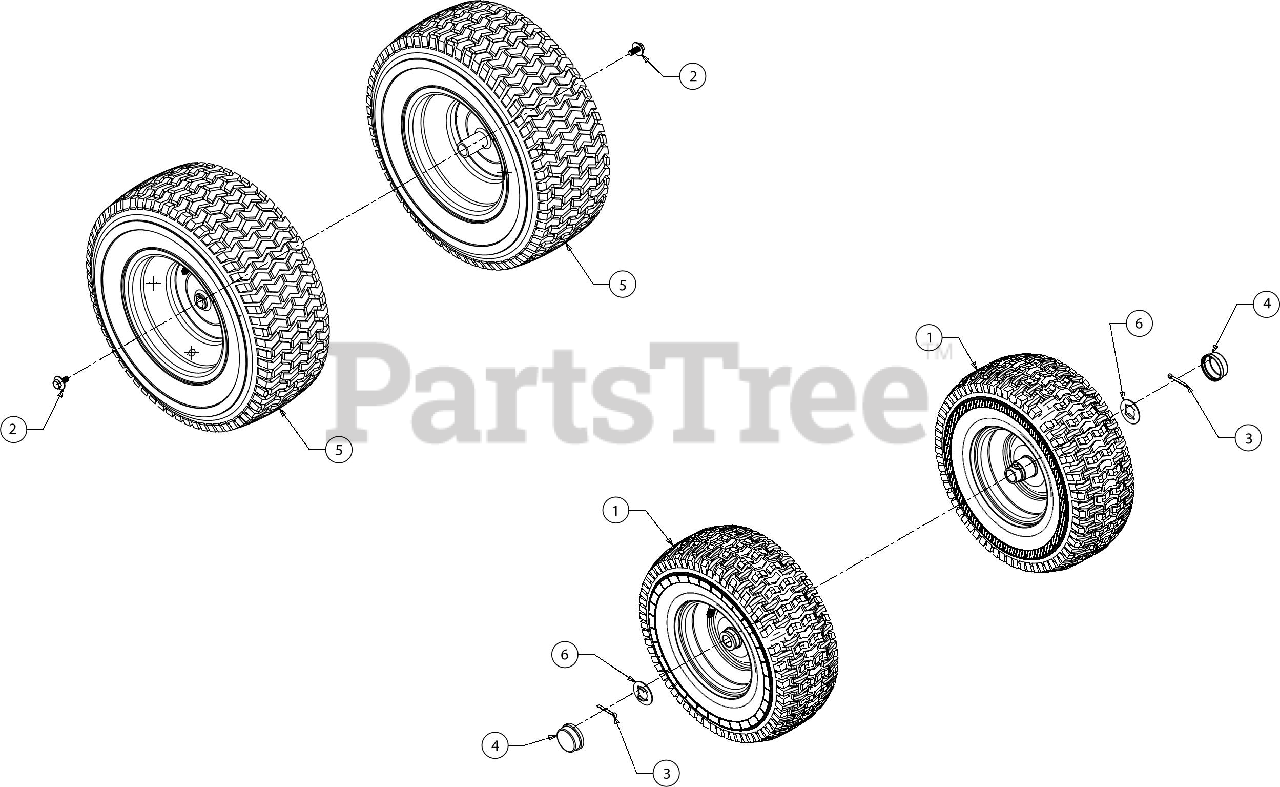

247.203695 (13B226JD299) - Craftsman R1000 Rear-Engine Riding Mower (2017) Wheels Parts Diagram

R1000 Rear-Engine Riding Mower

Wheels Parts Diagram

  • Title
1

MTD 634-05059-0961

WHEEL ASSEMBLY (13 x 5 x 6)
(Superseded to 634-05059)

$103.99

$

In Stock, Qty 20+

0

1

MTD 734-0298-0901

TUBELESS TIRE-13 x 5.0-6

Note: (Not Shown)

$41.99

$

In Stock, Qty 6

0

1

MTD 741-0516B

FLANGE BEARING

Note: (Not Shown)

$6.49

$

In Stock, Qty 20+

0

1

MTD 741-0990B

FLANGE BEARING W/ZERK FITTING

Note: (Not Shown)

$10.99

$

In Stock, Qty 20+

0

2

MTD 710-05339A

SCREW 5/16-24 x .750 GR5

$4.49

$

In Stock, Qty 20+

0

3

MTD 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

4

MTD 931-0484A

HUB CAP-BLACK

$6.49

$

In Stock, Qty 20+

0

5

MTD 634-0139

WHEEL ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 634-0139-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$319.99

$

Usually ships in 3-6 days

0

MTD 634-0139-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$319.99

$

Usually ships in 3-6 days

0

MTD 634-0139-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$108.99

$

In Stock, only 2 left!

0

MTD 634-0139-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$297.99

$

Usually ships in 3-6 days

0

MTD 634-0139-0976

WHEEL ASM-COMPLETE - Kenda Yellow (0976)

$297.99

$

Usually ships in 3-6 days

0

$259.99

$

Usually ships in 3-6 days

0

5

MTD 634-04174

RIM ASSEMBLY (8.0X5.38) W/VALVE

Note: *CHOOSE COLOR WHEN ORDERING*(Not Shown)

Variations

MTD 634-04174-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$67.99

$

Usually ships in 3-6 days

0

MTD 634-04174-0662

RIM ASM-8.0X5.38 W - OYSTER GRAY (0662)

$67.99

$

Usually ships in 3-6 days

0

MTD 634-04174-4042

RIM ASM-8.0X5.38 W - CRAFTSMAN GRAY (4042)

$67.99

$

Usually ships in 3-6 days

0

MTD 634-04174-0674

RIM ASM-8.0X5.38 W - YARDMAN YELLOW (0674)

$54.99

$

Usually ships in 3-6 days

0

MTD 634-04174-4028

RIM ASM-8.0X5.38 W - SEARS YELLOW (4028)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

5

MTD 934-0255

TUBELESS VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

5

MTD 734-04641

TIRE-16.0 x 6.50 x 8.00 SQ SH DELI
(Superseded to 734-1727)

Note: (Not Shown)

$56.99

$

Usually ships in 3-6 days

0

6

MTD 736-04228A

FLAT WASHER .781 ID x1.590 OD
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0
