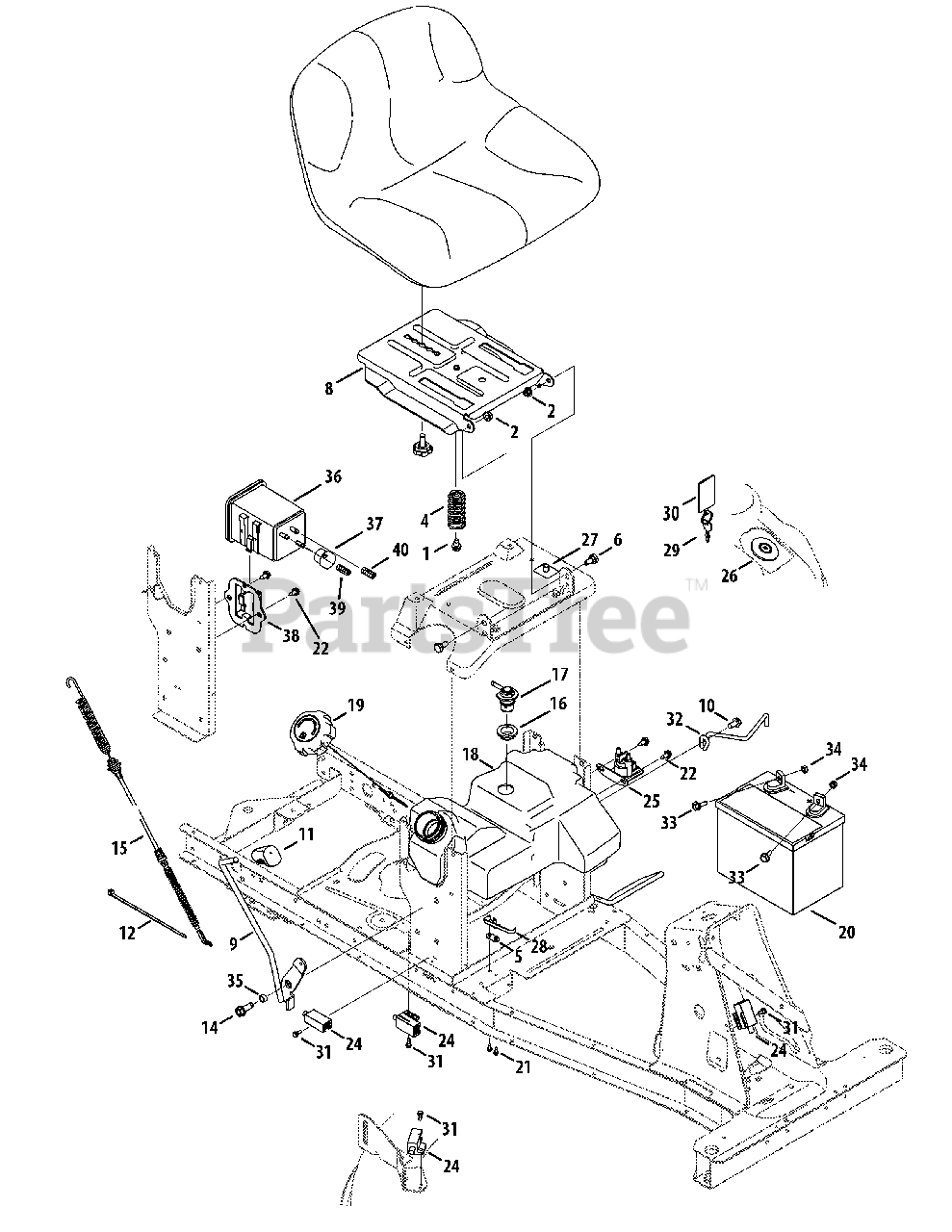

247.203690 (13B226JD299) - Craftsman R1000 Rear-Engine Riding Mower (2015) Seat Assembly Parts Diagram

R1000 Rear-Engine Riding Mower

Seat Assembly Parts Diagram

  • Title

1

MTD 710-0607

Tap Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

2

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-04009A

Knob, 3/8-16, .875

$16.99

$

In Stock, only 2 left!

0

4

MTD 732-04905

Seat Spring

$3.99

$

In Stock, only 2 left!

0

5

MTD 926-0320

Insulator Plate

$6.99

$

In Stock, Qty 9

0

6

MTD 938-0140

Shoulder Spacer
(Superseded to 738-0140)

$

$

Not available

7

MTD 757-04158A

Seat

$228.99

$

Usually ships in 3-6 days

0

8

MTD 783-07213A-0637

Seat Pivot Bracket

$33.99

$

In Stock, only 2 left!

0

9

MTD 683-04754-0637

PTO Handle Assembly

$13.99

$

Usually ships in 3-6 days

0

10

MTD 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

11

MTD 720-04049A

Handle Grip, 3/8

$16.99

$

Usually ships in 3-6 days

0

12

MTD 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, only 2 left!

0

13

MTD 732-04956

Extension Spring, .50 OD X 4.646 L

$

$

Not available

14

MTD 710-04683C

Tap Screw, 3/8-16, 1.00

$6.49

$

In Stock, only 3 left!

0

15

MTD 946-04802A

PTO Cable

$38.99

$

In Stock, only 1 left!

0

16

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

17

MTD 751-12118

Rollover Valve

$35.99

$

In Stock, only 1 left!

0

18

MTD 951-04366B

Fuel Tank, 1-3 Gal.
(Superseded to 951-04366C)

$89.99

$

Usually ships in 3-6 days

0

19

MTD 951-12426A

Fuel Cap
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

20

MTD 925-1707D

Battery, 155 CCA

$

$

Not available

21

MTD 710-0227

Screw, #8

$4.49

$

In Stock, Qty 15

0

22

MTD 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

25

MTD 725-04439A

Solienoid, 12v
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

26

MTD 925-04659

Three-Way Key Switch

$44.99

$

In Stock, Qty 20+

0

27

MTD 925-05013

Seat Switch

$31.99

$

In Stock, only 2 left!

0

28

MTD 725-1643

Switch Spring

$10.99

$

In Stock, only 1 left!

0

29

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

30

MTD 625-04124

Key Assembly
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

31

MTD 738-04237A

Shoulder Screw, #10-32, .500

$6.49

$

In Stock, Qty 7

0

32

MTD 747-06148

Battery Holddown Rod

$6.49

$

In Stock, only 1 left!

0

33

MTD 738-1132

Screw, Shoulder, .250 x .150

$5.49

$

In Stock, only 2 left!

0

34

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

35

MTD 750-0526

Spacer, .380 X .50 X .265

$4.99

$

In Stock, only 1 left!

0

36

MTD 951-10589

Carbon Cannister

$72.99

$

Usually ships in 3-6 days

0

37

MTD 951-10590

Cannister Vent Filter

$15.99

$

Usually ships in 3-6 days

0

38

MTD 951-10610

Cannister Adapter Bracket

$23.99

$

Usually ships in 3-6 days

0

39

MTD 751-10749-22

Fuel Line, White

$24.99

$

Usually ships in 3-6 days

0

40

MTD 751-10750-36

Fuel Line, Yellow

$41.99

$

Usually ships in 3-6 days

0

MTD 725-06273

Wiring Harness (Not Shown)
(Superseded to 725P06273A)

$161.99

$

Usually ships in 3-6 days

0
