247.116830 (31A-2M5E799) - Craftsman Snow Thrower (2015) 161-JWA-12 Flywheel & Recoil Starter Parts Diagram

Snow Thrower

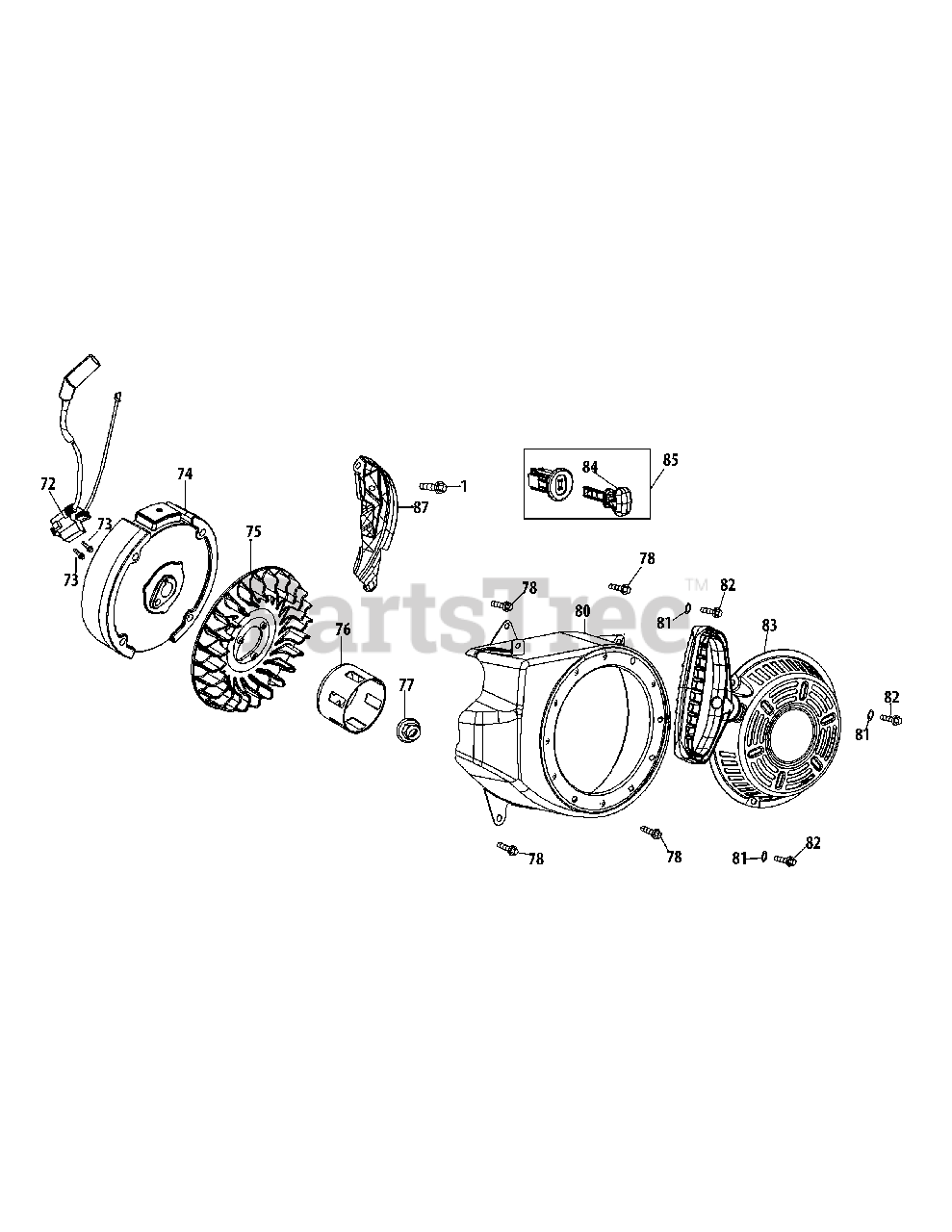

161-JWA-12 Flywheel & Recoil Starter Parts Diagram

  • Title
1

MTD 710-04968

Bolt m6×16

$6.99

$

In Stock, only 3 left!

0

72

MTD 951-10958A

Ignition Module

$97.99

$

Usually ships in 3-6 days

0

73

MTD 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

74

MTD 951-10908

Flywheel

$112.99

$

Usually ships in 3-6 days

0

75

MTD 951-10910

Cooling Fan

$50.99

$

Usually ships in 3-6 days

0

76

MTD 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

77

MTD 712-04209

Flywheel Nut, M14×1.5
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

78

MTD 710-04916

Bolt m6×14

$4.49

$

In Stock, Qty 12

0

80

MTD 951-11107

Blower Housing

$29.99

$

Usually ships in 3-6 days

0

81

MTD 736-04455

Gasket 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

82

MTD 710-04974

Bolt M6×10

$6.99

$

In Stock, only 3 left!

0

83

MTD 951-10955

Starter, Recoil

$76.99

$

In Stock, Qty 7

0

84

MTD 731-05632

Key
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

85

MTD 951-10637

Key Switch Base

$14.99

$

In Stock, Qty 8

0

87

MTD 951-11102

Flywheel Baffle

$3.99

$

Usually ships in 3-6 days

0
