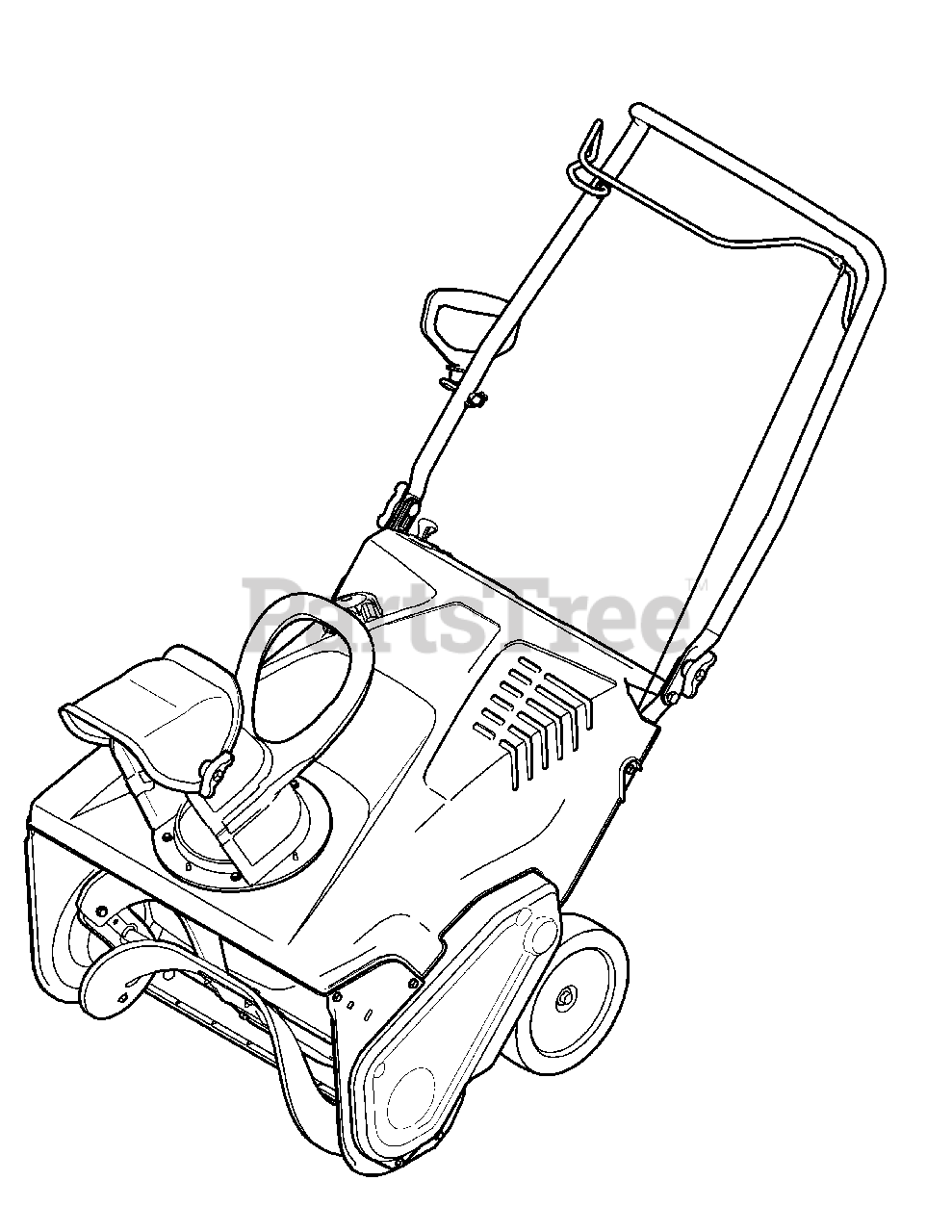

247.116830 (31A-2M5E799) - Craftsman Snow Thrower (2012) .Quick Reference Parts Diagram

Snow Thrower

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 731-05632

Key, Ignition
(Superseded to 951-10630)

Note: (same as 951-10630)

$6.99

$

Usually ships in 3-6 days

0

MTD 946-04782

Auger Cable

$13.99

$

Usually ships in 3-6 days

0

MTD 984-04393

Auger Assembly

$230.99

$

In Stock, only 1 left!

0

MTD 731-08171

Shave Plate

$18.99

$

In Stock, Qty 20+

0

MTD 954-04050

Auger Drive Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

MTD 735-04237

Rubber Paddle

$23.99

$

In Stock, Qty 20+

0

MTD 753-06469

Rubber Auger Paddle Kit

Note: (Includes 2 paddles and 12 hex washer screws )

$90.99

$

In Stock, Qty 20+

0

MTD 734-04585

Wheels

$20.99

$

In Stock, only 1 left!

0
