247.116830 (31A-2M5E799) - Craftsman Snow Thrower (2011) Auger Assembly Parts Diagram

Snow Thrower

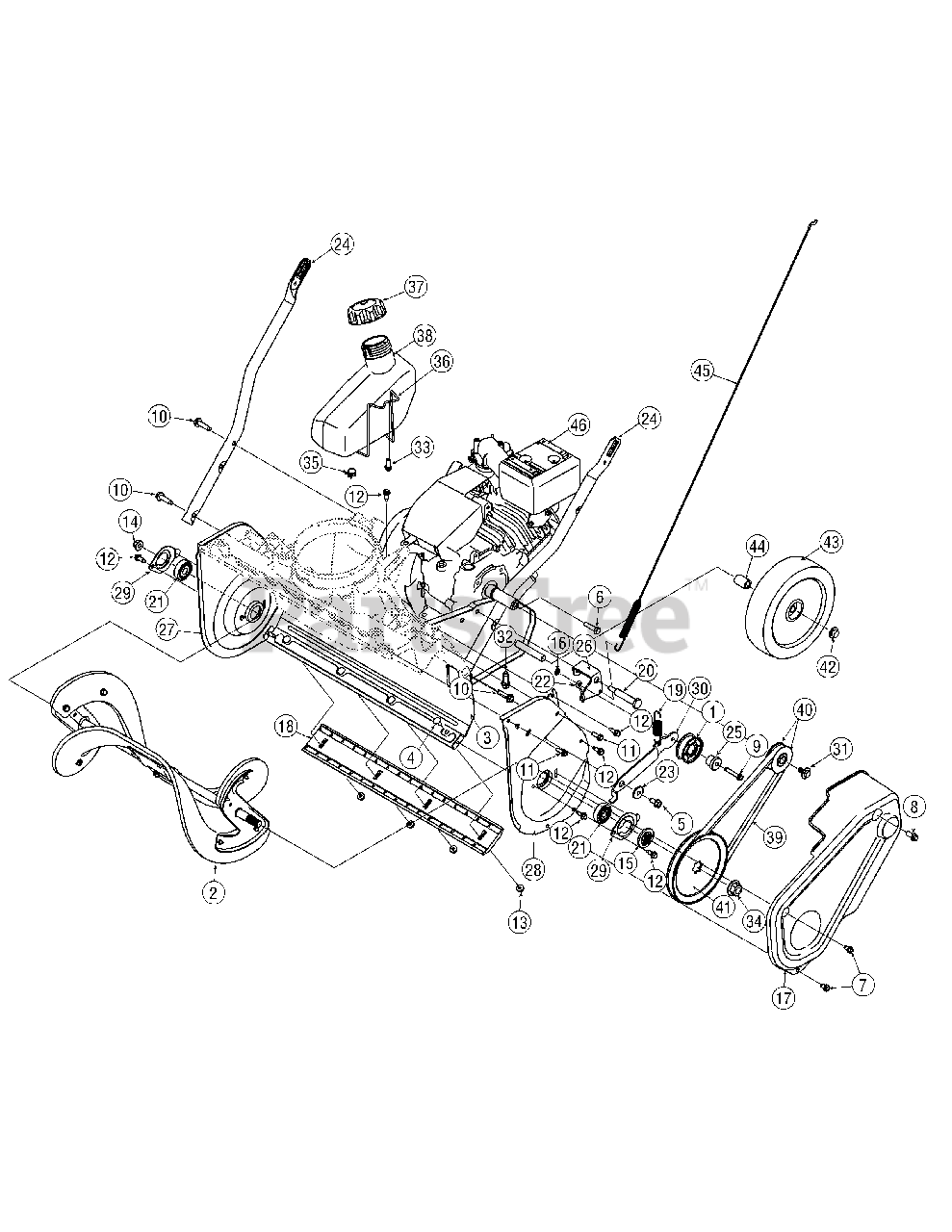

Auger Assembly Parts Diagram

  • Title

1

MTD 684-04168

Idler Pulley Assembly

$38.99

$

In Stock, only 1 left!

0

2

MTD 984-04393

Auger Assembly Complete

$230.99

$

In Stock, only 1 left!

0

2

MTD 684-04394-0637

Auger Assembly Axle

Note: Not shown, w/o paddles and center auger bracket

$50.99

$

In Stock, only 1 left!

0

2

MTD 753-06469

Rubber Auger Paddle Kit

Note: Not shown, Includes 2 paddles and 12 hex washer screws

$90.99

$

In Stock, Qty 20+

0

2

MTD 790-00427-0637

Center Auger Bracket

Note: Not shown

$8.49

$

Usually ships in 3-6 days

0

2

MTD 710-0642

Hex Washer Screw 1/4-20 x.750

Note: (4 bolts needed for Center Auger Bracket)

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-05058

Hex Washer Screw 1/4-14 x .750

Note: Not shown

$3.99

$

In Stock, Qty 8

0

3

MTD 684-04398-4044

Frame Assembly
(Superseded to 753-11131A)

$138.99

$

In Stock, only 2 left!

0

4

MTD 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-05183

Hex Screw, 5/16-24 x 1.25

$4.49

$

Usually ships in 3-6 days

0

7

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 1 left!

0

10

MTD 710-0817

Hex Washer Screw, 5/16-18 x 1.250

$6.99

$

In Stock, Qty 15

0

11

MTD 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

12

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 718-04836

Pulley Hub

$4.49

$

In Stock, Qty 5

0

16

MTD 726-0233

Push Nut, .25 x .50

$4.49

$

In Stock, Qty 20+

0

17

731-07737a

Belt Cover

$

$

Not available

18

MTD 731-08171

Shave Plate

$18.99

$

In Stock, Qty 20+

0

19

MTD 732-04748

Extension Spring, .70 x 3.035

$4.49

$

In Stock, only 1 left!

0

20

MTD 738-04456

Shoulder Bolt, 5/16-24 x .496 x 2.18

$5.99

$

In Stock, Qty 6

0

21

MTD 741-04517

Ball Bearing, .5000 x 1.375 x .4375

$8.99

$

In Stock, only 2 left!

0

22

747-05360a

Drive Cable Wire Support

$

$

Not available

23

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

24

MTD 749-04810-0637

Lower Handle

$12.99

$

Usually ships in 3-6 days

0

25

MTD 750-04571

Shoulder Spacer

$6.99

$

In Stock, only 3 left!

0

26

MTD 790-00426

Idler Cable Bracket

Variations

MTD 790-00426-0637

Clutch Cable Bracket - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$7.49

$

Usually ships in 3-6 days

0

27

MTD 790-00444-4044

RH Side Plate

$45.99

$

In Stock, only 1 left!

0

28

MTD 790-00445-4044

LH Side Plate

$45.99

$

Usually ships in 3-6 days

0

29

MTD 790-00457-4044

Bearing Cup

$13.99

$

Usually ships in 3-6 days

0

30

MTD 790-00461-0637

Idler Bracket

$4.49

$

Usually ships in 3-6 days

0

31

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-0654A

Hex Washer Screw, 3/8-16 x 1.000

$4.49

$

In Stock, only 4 left!

0

33

MTD 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

34

MTD 912-0702

Flange Nut, 7/16-20

$18.99

$

In Stock, only 1 left!

0

35

MTD 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 18

0

36

MTD 747-05513

Gas Tank Wire Support

$11.99

$

In Stock, only 1 left!

0

37

MTD 751-10487A

Fuel Cap
(Superseded to 751-10487C)

$16.99

$

In Stock, Qty 5

0

38

MTD 751-11648

Fuel Tank
(Superseded to 751-14001A)

$44.99

$

In Stock, only 1 left!

0

39

MTD 954-04050

Belt, .500 x 35.06
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

40

MTD 956-0416B

Pulley Half, .625 x 2.25

$10.99

$

In Stock, only 2 left!

0

41

MTD 756-04443

Pulley

$23.99

$

In Stock, only 4 left!

0

42

MTD 726-0299

Push Cap, 1/2

$8.49

$

In Stock, Qty 20+

0

43

MTD 734-04585

Wheel, 8"

$20.99

$

In Stock, only 1 left!

0

44

MTD 750-04432

Spacer, .525 x .775 x .835

$4.49

$

Usually ships in 3-6 days

0

45

MTD 946-04782

Clutch Cable

$13.99

$

Usually ships in 3-6 days

0

46

MTD 952Z161-JWA-11

Replacement Engine
(Superseded to 952Z161-JWA-12)

$641.99

$

Usually ships in 3-6 days

0
