247-103A401 - MTD Chipper Shredder (1997) (Yard-Man) Pivot Bracket and Wheel Assembly Parts Diagram

Chipper Shredder

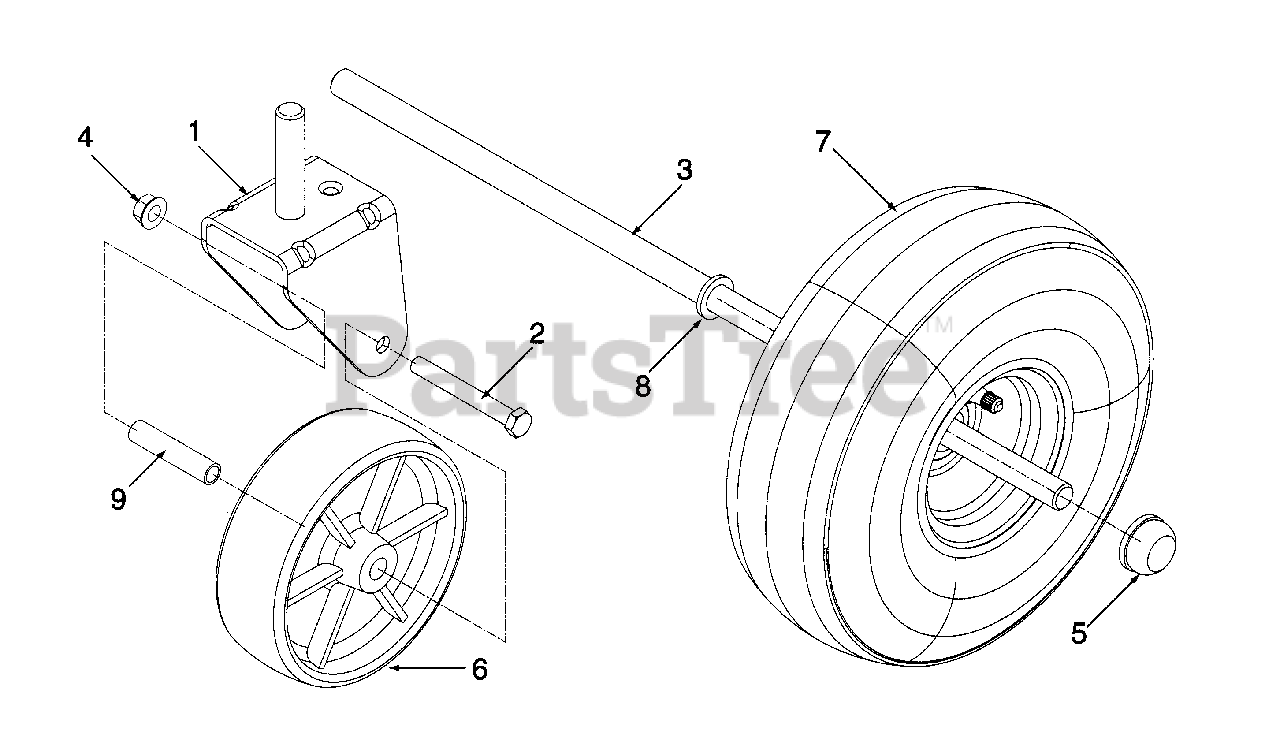

Pivot Bracket and Wheel Assembly Parts Diagram

  • Title

1

MTD 681-0088

PIVOT BRACKET ASSEM.

Variations

MTD 681-0088-0483

BRACKET ASSY PIVOT WHEEL - CHARCOAL GRAY (0483)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0498

BRACKET ASSY PIVOT WHEEL - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0637

BRACKET ASSY PIVOT WHEEL - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0638

BRACKET ASSY PIVOT WHEEL - MTD/TROY-BILT RED (0638)

$56.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0650

BRACKET ASSY PIVOT WHEEL - RED METALLIC (0650)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0662

BRACKET ASSY PIVOT WHEEL - OYSTER GRAY (0662)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0665

BRACKET ASSY PIVOT WHEEL - YARDMAN GREEN (0665)

$56.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0691

BRACKET ASSY PIVOT WHEEL - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

MTD 681-0088-0716

BRACKET ASSY PIVOT WHEEL - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

2

MTD 710-0194

HEX CAP SCREW 3/8-16 3.00

$

$

Not available

3

MTD 711-1084

RR AXLE SHAFT

Note: New Part

$

$

Not available

4

MTD 712-0431

FLANGED LOCK NUT 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

MTD 726-0214

PUSH CAP 5/8

$10.99

$

In Stock, only 3 left!

0

6

MTD 734-1804

WHEEL 6.00 x 2.00
(Superseded to 734-1804A)

$41.99

$

Usually ships in 3-6 days

0

7

MTD 734-1809

WHEEL COMPLETE 10 x 4 x 4

$

$

Not available

8

MTD 736-0366

FLAT WASHER 5/8 id x 1.00 od

$4.49

$

In Stock, only 2 left!

0

9

MTD 750-1042

SPACER .384 id x .500 od x 2.3

$13.99

$

Usually ships in 3-6 days

0
