247-103A401 - MTD Chipper Shredder (1997) (Yard-Man) Nozzle and Door Assembly Parts Diagram

Chipper Shredder

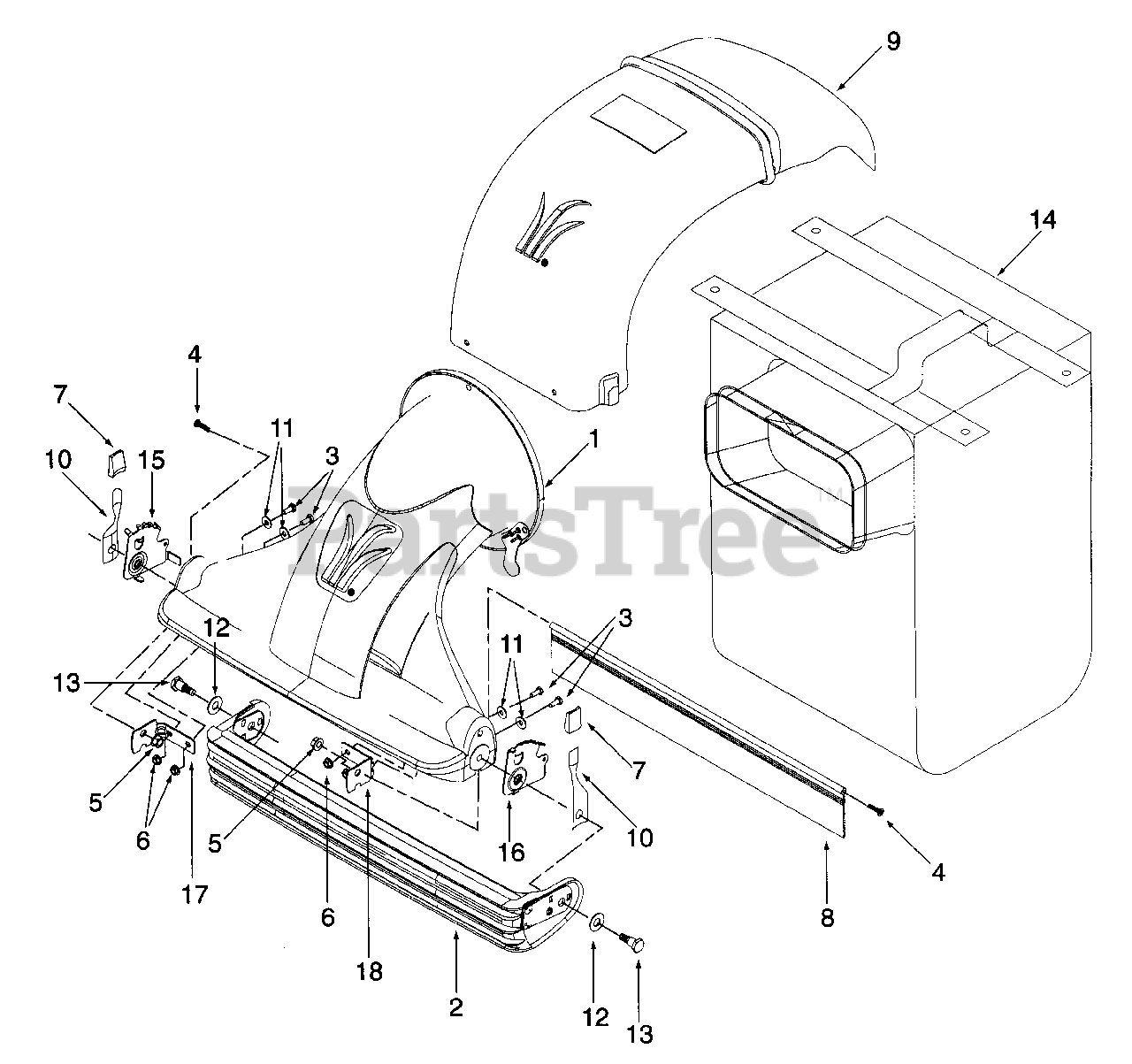

Nozzle and Door Assembly Parts Diagram

  • Title
1

MTD 631-0048

NOZZLE ASSEMBLY
(Superseded to 631-0086)

$

$

Not available

2

MTD 631-0049

DOOR ASSEMBLY

$

$

Not available

3

MTD 710-0258

HEX CAP SCREW 1/4-20 x .625
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0969

PHILLIPS TRUSS SCREW-HI-LO #12 x 1.00

$4.49

$

In Stock, only 2 left!

0

5

MTD 712-0431

FLANGED LOCK NUT 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

MTD 712-3027

HEX FLANGED LOCK NUT 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

7

MTD 720-0190

HEIGHT ADJUSTMENT KNOB
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

MTD 731-1831

NOZZLE FLAP

$20.99

$

Usually ships in 3-6 days

0

9

MTD 731-1838

DISCHARGE CHUTE
(Superseded to 731-1838A)

$193.99

$

Usually ships in 3-6 days

0

10

MTD 732-0754

SPRING LEVER

$9.99

$

Usually ships in 3-6 days

0

11

MTD 736-0173

FLAT WASHER .28 - .74 id. .063 od.

$4.49

$

In Stock, only 1 left!

0

12

MTD 736-3084

FLAT WASHER .510 - 1.120 x .060

$4.99

$

In Stock, Qty 16

0

13

MTD 738-0913

SHOULDER SCREW .5 x .545 x 3/8-16

$12.99

$

In Stock, only 1 left!

0

14

MTD 764-0492

3 BUSHEL BAG
(Superseded to 964-04001)

$219.99

$

Usually ships in 3-6 days

0

15

MTD 781-0702

INDEX DOOR BRACKET RH
(Superseded to 781-0702-0637)

Variations

MTD 781-0702-0637

Index Door Bracket, RH - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

16

MTD 781-0703

INDEX DOOR BRACKET LH
(Superseded to 781-0703-0637)

Variations

MTD 781-0703-0637

Index Door Bracket, LH - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

17

MTD 781-0704

NOZZLE REINFORCMENT BRACKET RH
(Superseded to 781-0704-0637)

Variations

MTD 781-0704-0637

NOZZLE REINFORCMENT BRACKET RH - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 781-0705

NOZZLE REINFORCMENT BRACKET LH

Variations

MTD 781-0705-0637

NOZZLE REINFORCMENT BRACKET LH - POWDER BLACK (0637)

$

$

Not available

$

$
