24695S - MTD Walk-Behind Blower (1985) Blower Parts Diagram

Walk-Behind Blower

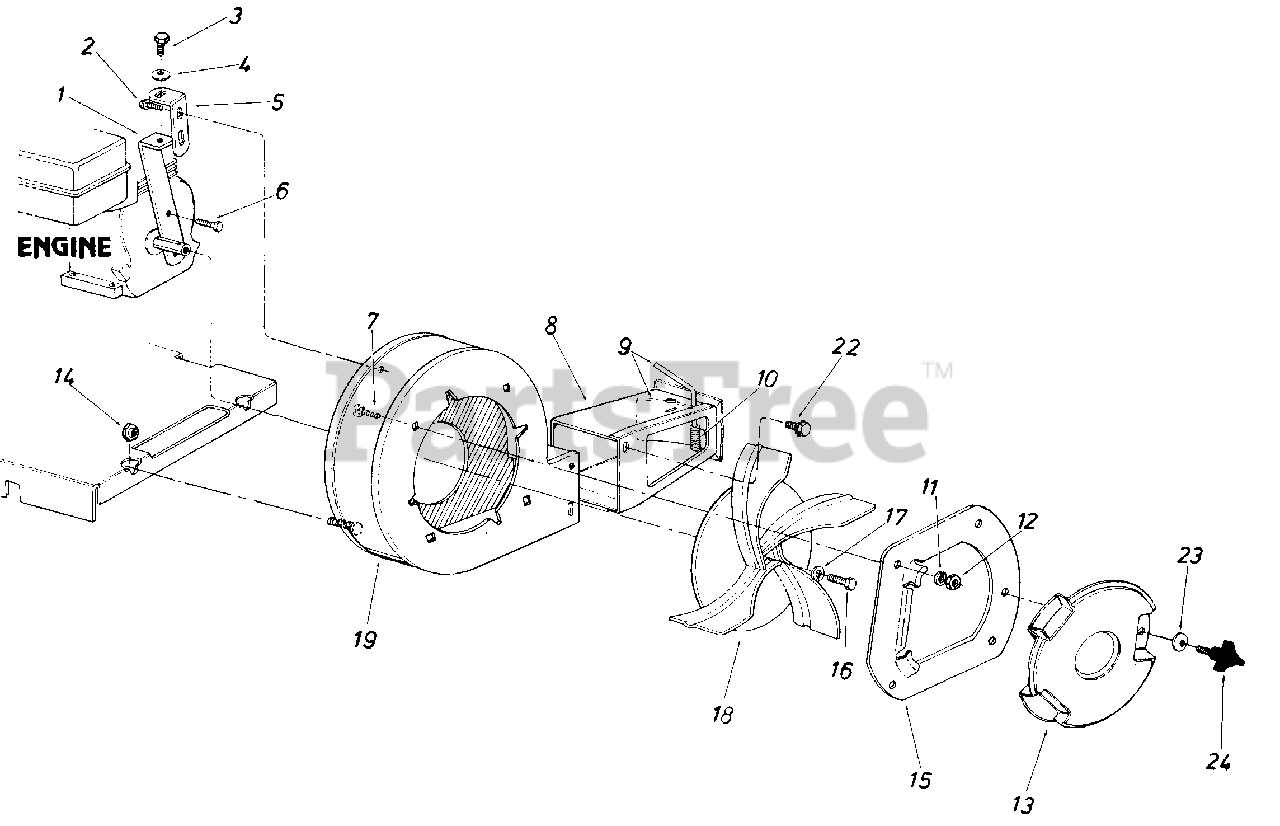

Blower Parts Diagram

  • Title

1

MTD 14539

Engine Housing Brace Ass'y.
(Superseded to 14539-0637)

Variations

MTD 14539-0637

HOUSING-ENG BRACE - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0600

Hex Self Tap Scr. 5/16" x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

3

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

MTD 14541

Right Angle Bracket
(Superseded to 14541-0637)

Variations

MTD 14541-0637

BRACKET-RIGHT ANGL - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 710-0627

Hex Locking Bolt 5/16-24 x .75"

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

8

MTD 14479

Directional Discharge Ass'y.

Variations

MTD 14479-0483

No Longer Available DISCHARGEASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14479-0498

No Longer Available DISCHARGEASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14479-0637

No Longer Available DISCHARGEASM - POWDER BLACK (0637)

$

$

Not available

MTD 14479-0638

No Longer Available DISCHARGEASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14479-0665

No Longer Available DISCHARGEASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 14479-0691

No Longer Available DISCHARGE ASM - BLACK JACK (0691)

$

$

Not available

MTD 14479-0662

No Longer Available DISCHARGE - OYSTER GRAY (0662)

$

$

Not available

MTD 14479-0709

No Longer Available DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

9

UNKNOWN

$

$

Not available

10

UNKNOWN

$

$

Not available

11

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 731-0608

Blower Guard

$

$

Not available

14

MTD 711-0758

Hex Shoulder Nut .50" I.D.
(Superseded to 911-0758)

$11.99

$

Usually ships in 3-6 days

0

15

MTD 14563

Nozzle Plate Ass'y.
(Superseded to 14563A)

$

$

Not available

16

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.*

$4.99

$

In Stock, Qty 9

0

17

MTD 736-0217

L.-Wash. 3/8" I.D. HD.

$4.49

$

In Stock, Qty 6

0

18

MTD 14536

Air Vane Plate Ass'y.

$

$

Not available

19

MTD 14496

Blower Housing Ass'y.-Comp.
(Superseded to 14496B)

$

$

Not available

22

MTD 710-0259

Hex Sems Bolt 5/16-18 x .62" Lg.*

$

$

Not available

23

MTD 736-0242

Belleville Wash. 34" 1 .D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

24

MTD 720-0170

3-Arm Thumb Scr. 5/16-18 x .75" Lg.

$11.99

$

In Stock, only 2 left!

0
