24665-7 - MTD Walk-Behind Vacuum (1987) Blower Complete Assembly Parts Diagram

Walk-Behind Vacuum

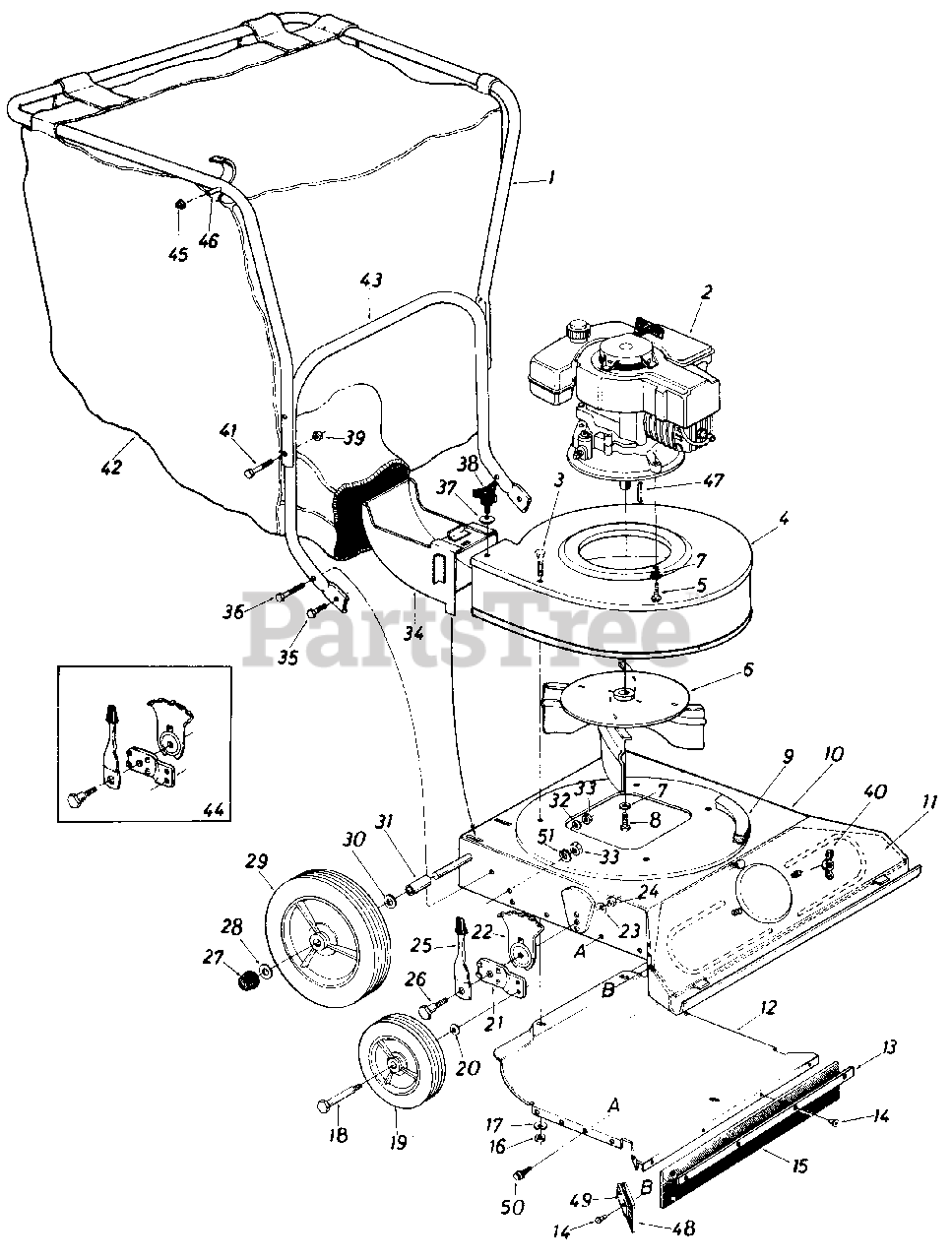

Blower Complete Assembly Parts Diagram

  • Title

1

MTD 749-0664

Upper Handle (Painted)

$

$

Currently unavailable

MTD 749-0480

Upper Handle (Chrome)

$

$

Currently unavailable

2

Engine

$

$

Not available

3

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 15784

Blower Housing Ass'y.

$

$

Not available

5

MTD 710-0654

Hex Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

6

MTD 15786

Impeller Ass'y.

$

$

Not available

7

MTD 736-0217

L.-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 9

0

8

MTD 710-0591

Hex Bolt 3/8-24 x 1.0" Lg. w/Patch

$4.49

$

In Stock, only 1 left!

0

9

MTD 722-0137

P.V.C. Foam Strip (4-Pcs. 12" Lg. )

$

$

Not available

10

MTD 15780

Vacuum Deck Ass'y.

$

$

Currently unavailable

11

MTD 15796

Front Baffle Ass'y.

$

$

Currently unavailable

12

MTD 15788

Lower Baffle Ass'y.

$

$

Currently unavailable

13

MTD 15790

Wiper Retaining Strip

$

$

Currently unavailable

14

MTD 728-0123

Pop Rivet.188" Dia.
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

15

MTD 735-0222

Nozzle Wiper Rear

$

$

Not available

16

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0242

Bell.-Wash..34" I.D. x.87" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-0102

Shld. Bolt 1/2" Dia. x 1.45" Lg. (3/8-16)

$9.99

$

In Stock, Qty 10

0

19

MTD 734-1139

Wheel Ass'y. Comp. 8 x 1.75"-Front

$

$

Not available

20

MTD 736-0331

Bell.-Wash. .39" I.D. x 1.12" 0. D.

$3.99

$

In Stock, Qty 16

0

21

MTD 15262

Wheel Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

22

MTD 15261

Index Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

23

MTD 736-0331

Bell.-Wash. .39" I.D. x 1.12" 0. D.

$3.99

$

In Stock, Qty 16

0

24

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

25

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

26

MTD 738-0507

Shoulder Bolt .500" x 7/16" Lg. (3/8-16)
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

27

MTD 726-0128

Push Cap .50" Rod (Black)

$

$

Not available

28

MTD 736-0272

Fl.-Wash. 1/2" I.D. x 1.0" O.D. x .06

$4.99

$

In Stock, Qty 20+

0

29

MTD 734-1140

Wheel Ass'y. Comp. 10 x 1.75"-Rear

$

$

Not available

30

MTD 736-0272

Fl.-Wash. 1/2" I.D. x 1.0" O.D. x .06

$4.99

$

In Stock, Qty 20+

0

31

MTD 750-0588

Wheel Spacer 1/2" I.D. x 15/16" Lg.

$

$

Not available

32

MTD 736-0331

Bell.-Wash. .39" I.D. x 1.12" 0. D.

$3.99

$

In Stock, Qty 16

0

33

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

34

MTD 15779

Air DuctAss y.

$

$

Currently unavailable

35

MTD 710-0201

Hex Bolt 3/8-16 x .75" Lg.

$

$

Not available

36

MTD 710-0344

Hex Bolt 3/8-16 x 1.50" Lg.

$5.99

$

In Stock, only 1 left!

0

37

MTD 736-0242

Bell.-Wash. .34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

38

MTD 720-0170

Thumb Scr. 5/16-18 x .75" Lg.

$11.99

$

In Stock, only 2 left!

0

39

MTD 712-0107

Hex Cent. L.-Nut 1/4-20Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

40

MTD 712-0113

Wing Nut 1/4-20 (Plastic)
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

41

MTD 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, only 2 left!

0

42

MTD 764-0208

Vacuum Bag (6.6 Bushel)

$

$

Not available

43

MTD 749-0592

Lower Handle (Painted)

$

$

Not available

MTD 749-0665

Lower Handle (Chrome)

$

$

Not available

44

MTD 14578

Height Adjuster Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adjuster Ass'y. Comp-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

45

MTD 1539-019

Push Speed Nut .25" Dia.

$4.49

$

In Stock, Qty 14

0

46

MTD 711-0737

Stud Pin .250" Dia. x 1.75" Lg.
(Superseded to 911-0737)

$4.99

$

In Stock, Qty 11

0

47

MTD 714-0105

Sq. Key 3/16 x 3/16 x l.OO"Lg.
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

48

MTD 735-0221

Nozzle Wiper Side

$

$

Not available

49

MTD 15789

Wiper Retaining Strip

$

$

Not available

50

MTD 710-0302

Hex Wash. Hd. "F" Tap Scr. #10

$

$

Not available

51

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0
