24650-9 - MTD Chipper Shredder (1989) Shredder Parts Diagram

Chipper Shredder

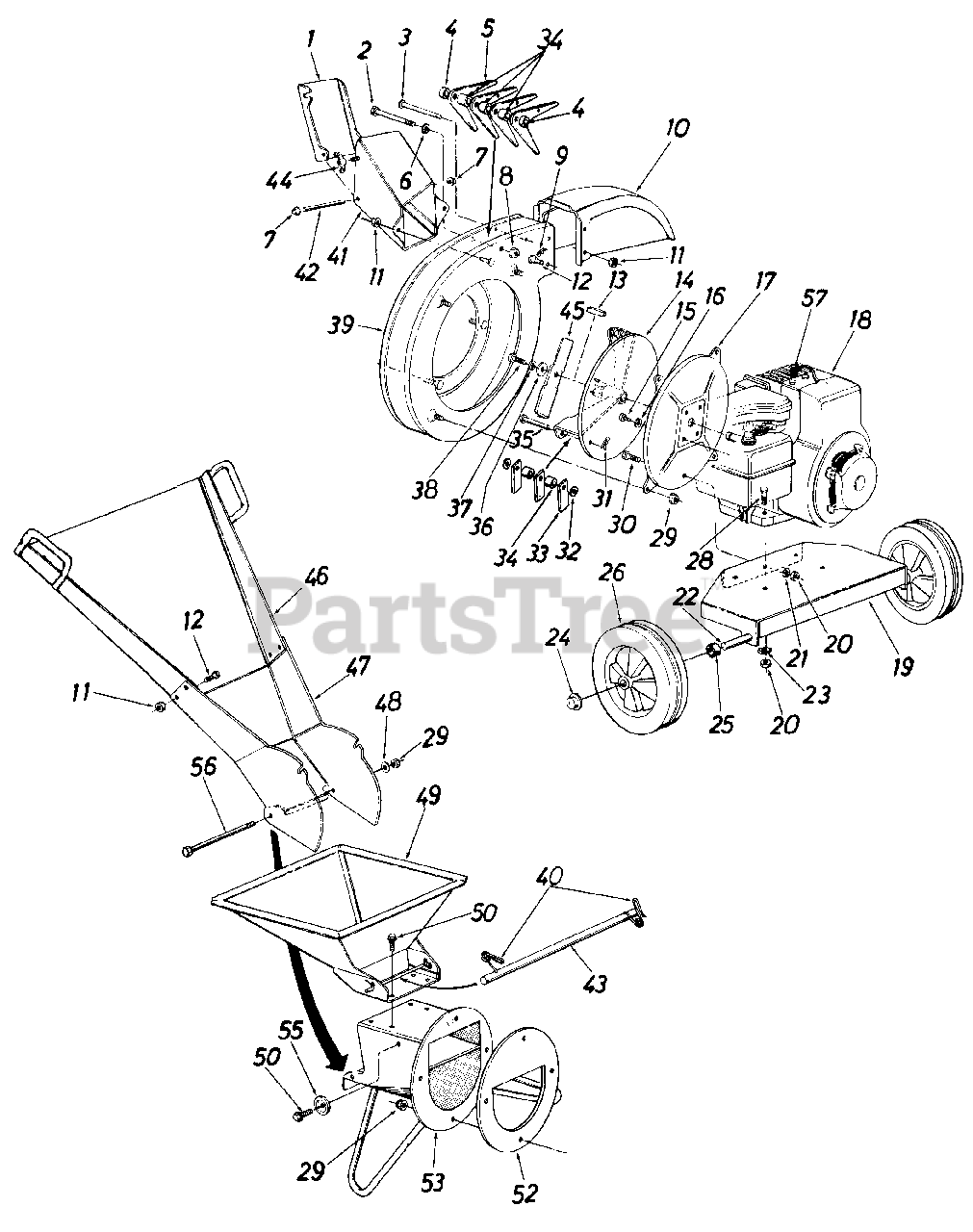

Shredder Parts Diagram

  • Title

1

MTD 11476

Door Chip It

$

$

Currently unavailable

2

MTD 710-0465

Hex Bolt 1/2-20 x 4.50" Lg.

$11.99

$

In Stock, only 1 left!

0

3

MTD 711-0580

Clevis Pin

$

$

Not available

4

MTD 711-0579

Flail Spacer 7/32" Lg.

$

$

Not available

5

MTD 11455

Cutting Finger

$

$

Not available

6

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, only 2 left!

0

7

MTD 726-0111

Palnut 3/16" Dia.

$

$

Not available

8

MTD 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

9

MTD 714-0507

Cotter Pin 3/32" Dia. x 3/4" Lg.

$4.49

$

In Stock, Qty 12

0

10

MTD 16568

Chute Deflector

$

$

Not available

11

MTD 712-0107

L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

12

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

13

MTD 714-0114

Sq. Key 1/4" x 2.00" Lg.
(Superseded to 914-0114)

$4.49

$

Usually ships in 3-6 days

0

14

MTD 13430

Impeller Assembly

$

$

Not available

15

MTD 710-0157

Hex Bolt 5/16-24 x 3/4" Lg.

$4.49

$

In Stock, Qty 14

0

16

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

MTD 14573

Hopper to Engine Mtg. Plate

$

$

Currently unavailable

18

Engine

$

$

Not available

19

MTD 11464A

Engine Mounting Plate

$

$

Not available

20

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

21

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

MTD 738-0521

Shaft

$

$

Not available

23

MTD 736-0170

Special L.-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

24

MTD 726-0221

Push Cap

$6.49

$

In Stock, only 2 left!

0

25

MTD 711-0494

Spacer

$

$

Not available

26

MTD 734-1056

Wheel Ass'y.-Comp. (White)

$

$

Currently unavailable

MTD 734-1173

Wheel Ass'y.-Comp. (Silver)

$

$

Currently unavailable

28

MTD 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.

$5.99

$

Usually ships in 3-6 days

0

29

MTD 712-0429

Elastic Lock Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

31

MTD 714-0144

Cotter Pin 1/8" Dia. x 1.00" Lg.*

Note: (Special)

$

$

Not available

32

MTD 736-0192

Fl.-Wash. .531" I.D. x 937 O.D. x .09

$4.49

$

In Stock, Qty 16

0

33

MTD 11459A

Flail
(Superseded to 91459B)

$21.99

$

In Stock, Qty 20+

0

34

MTD 711-0564

Spacer 23/32" Lg.
(Superseded to 911-0564)

$16.99

$

In Stock, only 2 left!

0

35

MTD 711-0578

Clevis Pin .50" Dia. x 3.0" Lg.

$10.99

$

Usually ships in 3-6 days

0

36

MTD 736-0247

Fl.-Wash. .406" I.D. x 1.25" O.D. Hdn.

$9.49

$

In Stock, Qty 12

0

37

MTD 736-0217

L.-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 6

0

38

MTD 710-0151

Hex Bolt 3/8-24 x 2.0" Lg. H.T.

$7.49

$

In Stock, only 3 left!

0

39

MTD 14575

Flail Housing Ass'y.-Comp.

Variations

MTD 14575-0637

No Longer Available HOUSING AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 732-0546

Torsion Spring .062 Dia. x 1.06 Lg.
(Superseded to 932-0546)

$4.99

$

Usually ships in 3-6 days

0

41

MTD 11477

Chip-lt Guide Ass'y.

$

$

Currently unavailable

42

MTD 11478

Hinge Pin

$

$

Currently unavailable

43

MTD 747-0531

Release Bar

$

$

Not available

44

MTD 712-0109

Wing Nut Elastic 1/4-20 Thd.

$

$

Not available

45

MTD 13431

Blade
(Superseded to 13431-0637)

Variations

MTD 13431-0637

Shredder Blade, Black - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 11460

Upper Leaf Ramp Section

$

$

Not available

47

MTD 16524

Lower Leaf Ramp Section

$

$

Not available

48

MTD 736-0264

Fl.-Wash. 5/16" I.D.

$6.99

$

In Stock, only 2 left!

0

49

MTD 11481A

Hopper Assembly

$

$

Not available

50

MTD 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

52

MTD 11454

Back-Up Plate

$

$

Not available

53

MTD 16522

Inlet Guide Assembly

$

$

Not available

55

MTD 11480

Stop Washer

$

$

Not available

56

MTD 710-0542

Hex Bolt 5/16-18 x 8.38" Lg.

$

$

Not available

57

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

MTD 764-0199

Bag
(Superseded to 964-04022)

Note: (Not Shown)

$74.99

$

In Stock, only 1 left!

0

MTD 723-0400

Safety Glasses

Note: (Not Shown)

$26.99

$

Usually ships in 3-6 days

0
