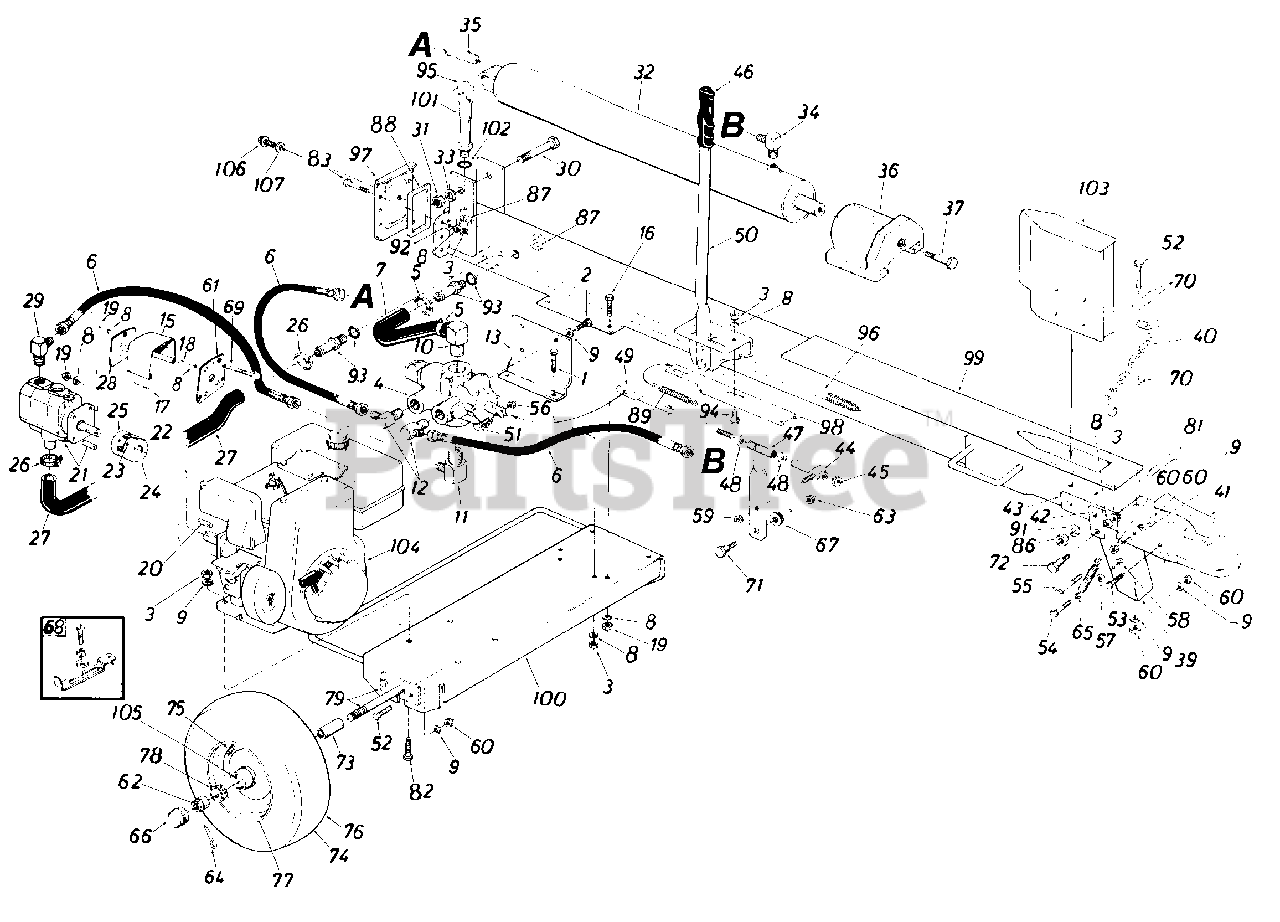

24645C - MTD Log Splitter (1986) Log Parts Diagram

Log Splitter

Log Parts Diagram

  • Title

1

MTD 710-0118

Hex Bolt 5/16-18 x .75 " Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0168

Hex Bolt 3/8-16 x .50" Lg.

$3.99

$

Usually ships in 3-6 days

0

3

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

MTD 717-0407

Control Valve 400

$

$

Currently unavailable

5

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

6

MTD 727-0297

High Pressure Hose Ass'y. .38" I.D.

$

$

Currently unavailable

7

MTD 727-0299

Return Hose-Valve to Tank 3/4" I.D.

$

$

Currently unavailable

8

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

10

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

11

MTD 737-0171

90ø Solid Male Adapter

$

$

Not available

12

MTD 737-0192

90ø Solld Male Adapter

$41.99

$

Usually ships in 3-6 days

0

13

MTD 781-0035

Valve Mtg. Plate

$

$

Currently unavailable

MTD 13295

Coupling Support Brkt. Ass'y.

$

$

Currently unavailable

15

MTD 719-0278

Coupling Shield

Note: (642)

$72.99

$

Usually ships in 3-6 days

0

MTD 719-0277

Coupling Shield

Note: (645)

$

$

Currently unavailable

16

MTD 710-0117

Hex Bolt5/16-24x 1.00" Lg.
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

18

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

19

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

20

MTD 714-0168

Sq. Key 3/16" x 2.25" Lg.

Note: (642)

$

$

Not available

MTD 714-0172

Sq. Key 1/4" x 2.25" Lg.

Note: (645)

$

$

Currently unavailable

21

MTD 717-0460

Pump with Woodruff Key

Note: (42)

$

$

Currently unavailable

MTD 717-0461

Pump with Woodruff Key

Note: (645)

$

$

Currently unavailable

22

MTD 735-0205

Spider L-0-90

$

$

Not available

23

MTD 710-0419

Set Scr. 1/4-20 x .25" Cup

$

$

Currently unavailable

24

MTD 717-0478

Coupling Half .75" I.D.

Note: (642)

$

$

Currently unavailable

MTD 717-0479

Coupling Half 1.0" I.D.

Note: (645)

$

$

Not available

25

MTD 717-0498

Coupling Half .50" I.D.

$

$

Currently unavailable

26

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

27

MTD 727-0298

Suction Hose 1.0" Dia.

$

$

Currently unavailable

28

MTD 781-0097

Rear Coupling Support Brkt.
(Superseded to 781-0097-0637)

Variations

MTD 781-0097-0637

Support Bracket, RR - POWDER BLACK (0637)

$69.99

$

In Stock, only 2 left!

0

$69.99

$

In Stock, only 2 left!

0

29

MTD 737-0192

90ø Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

30

MTD 710-0920

Hex Bolt 3/4" x 4.0" Lg.

$

$

Currently unavailable

31

MTD 712-0203

Hex Nut 3/4" Thd.
(Superseded to 712-0301)

$7.99

$

In Stock, only 1 left!

0

32

MTD 717-0818

Hydraulic Cylinder 3-1/2" Dia.

Note: (642)

$

$

Currently unavailable

MTD 717-0817

Hydraulic Cylinder 4" Dia.

Note: (645)

$

$

Currently unavailable

33

MTD 736-0364

L.-Wash. 314" I.D.
(Superseded to 936-0364)

$

$

Not available

34

MTD 737-0152

High Pressure 90ø Elbow

$

$

Currently unavailable

35

MTD 737-0194

45ø Male Adapter 3/4-16 MJ-3/8-18 NP

$

$

Not available

36

MTD 719-0269

Pusher Plate

Note: (642)

$

$

Not available

MTD 719-0268

Pusher Plate

Note: (645)

$

$

Currently unavailable

37

MTD 738-0601

Shoulder Bolt .62" Dia. x 4.75 " Lg.

Note: (1 /2-13 Thd.)

$

$

Not available

39

MTD 15850

Flip Stand Bracket

$

$

Currently unavailable

40

MTD 713-0338

Chain-Tovl/ Hitch

$

$

Currently unavailable

41

MTD 727-0289

Tow Hitch Ass'y. Comp.

$

$

Not available

42

MTD 781-0020

Stand Pivot Bracket

$

$

Currently unavailable

43

MTD 781-0037

Tow Hitch Brk't. 2 x 3/16 10.25" Lg.

$

$

Currently unavailable

44

MTD 13115

Ferrule Ass y.

$

$

Not available

45

MTD 712-0214

Hex Cent. L.-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 2 left!

0

46

MTD 720-0157

Grip-Black Vinyl
(Superseded to 920-0233)

$

$

Not available

47

MTD 732-0324

Comptession Spring

$12.99

$

Usually ships in 3-6 days

0

48

MTD 736-0206

Special Washer .378 x 1.00" x .125 Thd.
(Superseded to 936-0206)

$4.49

$

In Stock, only 4 left!

0

49

MTD 747-0484

Engagement Rod 3/8" Dia. x 9.0' Lg.

$

$

Not available

50

MTD 749-0622

Engagement Handle

$

$

Not available

51

MTD 710-0106

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, Qty 12

0

52

MTD 710-0191

Hex BoIt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

53

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

54

MTD 710-0299

Hex Bolt 1/4-28 x 1.00" Lg.

$4.49

$

Usually ships in 3-6 days

0

55

MTD 710-0539

Hex Bolt 3/8-24 x 1.75" Lg. (Grade 5)

$4.99

$

In Stock, Qty 11

0

56

MTD 712-0107

Hex Patch L.-Nut 1/4-20 Lg.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

57

MTD 712-0117

Hex Cent. L.-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

58

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

59

MTD 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

60

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

61

MTD 781-0098

Front Coupling Support Brkt.
(Superseded to 781-0098A-0637)

Variations

MTD 781-0098-0637

Bracket, Black - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

62

MTD 712-0299

Hex Castle Nut 3/4-16 Thd.

$

$

Currently unavailable

63

MTD 712-0375

Hex L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

64

MTD 714-0162

Cotter Pin 5/32" Dia. x 1.25" Lg.

$4.99

$

In Stock, Qty 20+

0

65

MTD 732-0429

Extension Spring .50" O.D. 3.97 " Lg.
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

66

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

67

MTD 735-0144

Rubber Washer

$

$

Not available

68

MTD 751-0440

Throttle Control

Note: (642 Only)

$

$

Currently unavailable

69

MTD 710-0363

Hex Bolt 5/16-24 x 4.0" Lg.*

Note: (642)

$

$

Not available

MTD 710-0968

Hex Bolt 5/16-24 x 5.0" Lg.*

Note: (645)

$

$

Not available

70

MTD 736-0262

Fl.-Wash. .375" I.D. x .870" O.D. x .090

$3.99

$

In Stock, Qty 20+

0

71

MTD 738-0143

Shoulder Bolt .498" Dia. x .340" Lg.

$4.49

$

In Stock, Qty 20+

0

72

MTD 738-0296

Shoulder Bolt .437" Dia. x .268" Lg.

$4.49

$

In Stock, Qty 20+

0

73

MTD 750-0442

Spacer .75" I.D. x 1.12" O.D. x 1.56" Lg.

$

$

Not available

74

MTD 734-1016

Wheel Ass'y. Comp. 16.0 x 4.0"
(Superseded to 634-0186)

Variations

MTD 734-1016-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$363.99

$

Usually ships in 3-6 days

0

MTD 734-1016-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$363.99

$

Usually ships in 3-6 days

0

MTD 734-1016-0941

No Longer Available - Carlisle Yellow (0941)

$

$

Not available

$363.99

$

Usually ships in 3-6 days

0

75

MTD 734-0255

Air Valve-Tubeless
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

76

MTD 734-0872

Tire Only 16.0 x 4.0-2 Ply

$169.99

$

Usually ships in 3-6 days

0

77

MTD 734-1017

Wheel Rim Ass'y. Only
(Superseded to 634-0188)

Variations

MTD 734-1017-0662

Rim Assembly, Gray 3.75 X 8.0 - OYSTER GRAY (0662)

$175.99

$

Usually ships in 3-6 days

0

MTD 734-1017-0674

Rim Assembly, Gray 3.75 X 8.0 - YARDMAN YELLOW (0674)

$175.99

$

Usually ships in 3-6 days

0

MTD 734-1017-0499

RIM ASM-3.75 X 8.0 - CUB BEIGE (0499)

$

$

Not available

$175.99

$

Usually ships in 3-6 days

0

78

MTD 741-0107

Roller Rearing 3/4" I.D.
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

79

MTD 781-0018

Axle Ass'y. .75" Dia. x 36.25 " Lg.

$

$

Not available

81

MTD 710-0298

Hex Bolt 5/8-18 x 3.50" Lg.

$9.99

$

In Stock, only 2 left!

0

82

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

83

MTD 710-0442

Hex BoIt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

86

MTD 712-0337

Hex Nut 5/1-18 Thd.

$4.49

$

In Stock, only 4 left!

0

87

MTD 712-0338

Hex Nut 11/16-12 Thd.

$

$

Not available

88

MTD 721-0203

Gasket 2.62 x 5.12

$

$

Not available

89

MTD 732-0352

ExtensiGn Spring .50" O.D. x 4.25" Lg.

$

$

Not available

91

MTD 736-0158

L.-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

92

MTD 736-0275

Fl.-Wash. 34" I.D. x .68" O.D. x .062 Thk.

$6.99

$

Usually ships in 3-6 days

0

93

MTD 737-0191

IAdapter 1.0" Tube 11/16-12 "O"-Ring

$

$

Not available

94

MTD 738-0140

IShoulder Bolt .437" Dia. x .180" Lg.

$5.99

$

In Stock, Qty 15

0

95

MTD 745-0174

Breather Cap

$

$

Not available

96

MTD 781-0021

Strainer Tube Ass'y.

$

$

Not available

97

MTD 781-0023

End Plate

$

$

Not available

98

MTD 781-0024

Engagement Brk't. 1.39 x 11.75" Lg.

$

$

Currently unavailable

99

MTD 781-0025

Complete Oil Tank Ass'y.

$

$

Currently unavailable

100

MTD 781-0033

Engine Frame Ass'y.

$

$

Currently unavailable

101

MTD 781-0036

Filler Tube Ass'y.

$

$

Currently unavailable

102

MTD 721-0204

"O"-Ring92" I.D. x 1.16" O.D. x .116 Dia.

$

$

Not available

103

MTD 781-0038

Wedge Ass'y.

$

$

Not available

104

5 H.P. Engine

Note: (642)

$

$

Not available

8 H.P. Engine

Note: (645)

$

$

Not available

105

MTD 721-0168

Bearing Seal
(Superseded to 921-0168)

$9.49

$

In Stock, Qty 17

0

106

MTD 710-0604

Hex Hd. Tap Scr. 5/16"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

107

MTD 721-0205

Gasket

$

$

Not available
