24638-7 - MTD Log Splitter (1987) Log Parts Diagram

Log Splitter

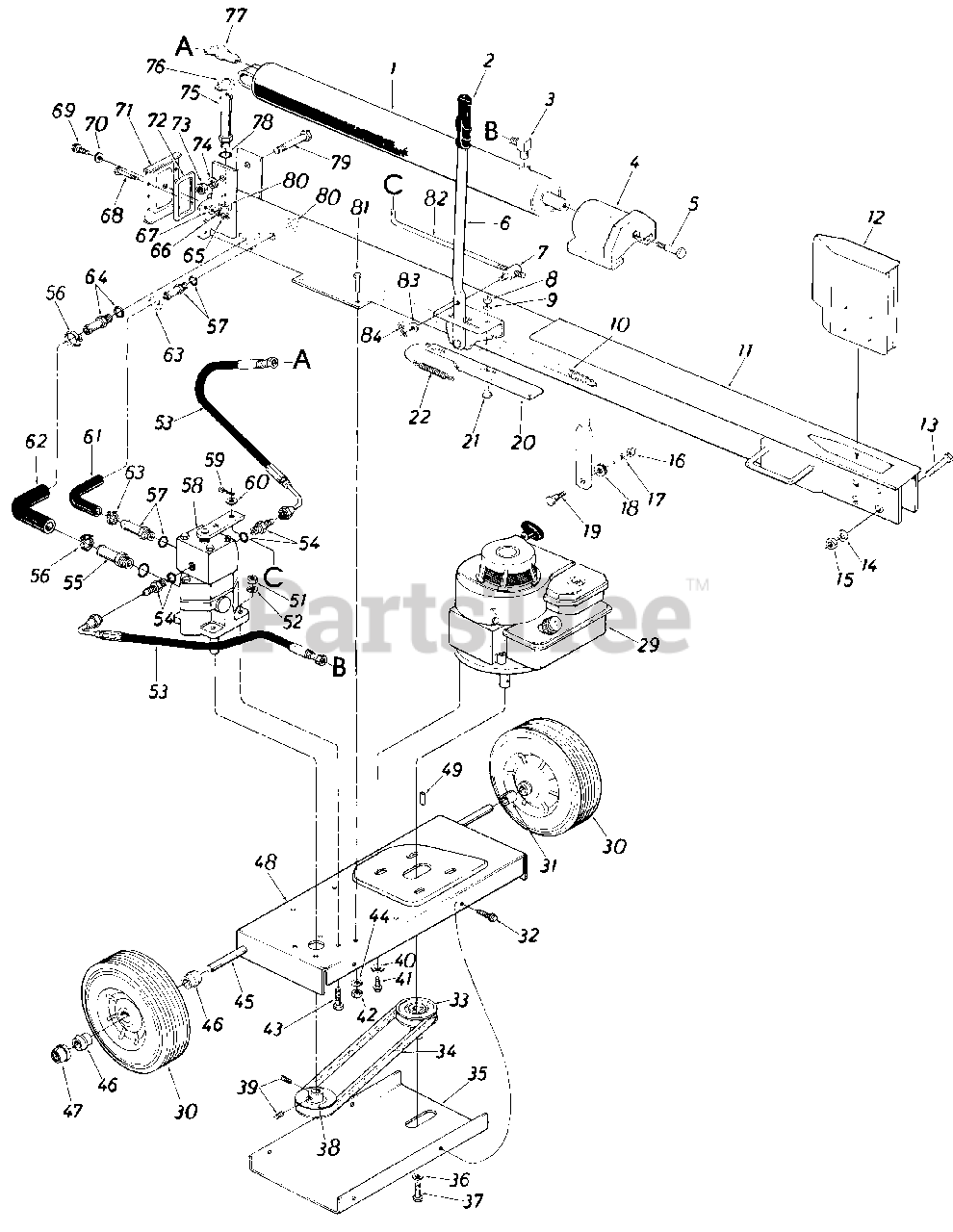

Log Parts Diagram

  • Title

1

MTD 717-0816

2-1/2" Cylinder Ass'y. Comp.

$

$

Not available

2

MTD 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

3

MTD 737-0196

90ø Elbow Adapter

$

$

Not available

4

MTD 719-0270

Pusher Plate

$

$

Currently unavailable

5

MTD 738-0601

Shoulder Bolt 5/8" Dia. x.660" Lg. 1/2-13 Thd.

$

$

Not available

6

MTD 749-0663

Engagement Handle

$

$

Not available

7

MTD 711-0628

Adjustment Ferrule

$

$

Not available

8

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

MTD 781-0021

Strainer Tube Ass y.

$

$

Not available

11

MTD 781-0069

Oil Tank Ass'y. Comp

$

$

Currently unavailable

12

MTD 781-0038

Wedge Ass y.

$

$

Not available

13

MTD 710-0298

Hex Bolt 5/8-18 x 3.50" Lg. (Grade 5)

$9.99

$

In Stock, only 2 left!

0

14

MTD 736-0158

L.-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

15

MTD 712-0337

Hex Nut 5/8-18 Thd.

$4.49

$

In Stock, only 4 left!

0

16

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

17

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

18

MTD 735-0144

Rubber Wash.

$

$

Not available

19

MTD 738-0143

Shoulder Bolt .498x .340

$4.49

$

In Stock, Qty 20+

0

20

MTD 781-0024

Engagement Brkt.

$

$

Currently unavailable

21

MTD 738-0140

Shoulder Bolt .437" Dia. x.180" Lg.

$5.99

$

In Stock, Qty 15

0

22

MTD 732-0352

Extension Spring .50" O.D. x 4. 25" Lg.

$

$

Not available

29

Engine-B & S

$

$

Not available

30

MTD 734-0736

Wheel Ass'y. Comp. 10.0" x 2.75

$

$

Not available

31

MTD 750-0118

Sleev .532" I.D. x 875" O.D. x .90" Lg.
(Superseded to 950-0118)

$

$

Not available

32

MTD 710-0599

Hex Wash. Hd. Self Tap. Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 756-0425

1/2" V-Pulley 7/8" I.D. x 7/8" I.D. x 3-1/4" O.D.

$

$

Not available

34

MTD 754-0278

"V"-Belt (4L) 1/2" V x 30" Lg.

$

$

Not available

35

MTD 781-0008

Belt Cover

$

$

Currently unavailable

36

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

MTD 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

38

MTD 756-0426

1/2 (4L) "V"-Pulley 5/8" I.D. x 3-1/2" O.D.

$

$

Not available

39

MTD 710-0938

Set Scr. 1/4-28 x .25" Lg.

$

$

Not available

40

MTD 736-0105

Bell.-Wash..40" I.D. x .88" 0. D.

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-0649

Hex Wash. Hd. TT-Tap Scr. 3/8-1 6 x .87 " Lg.

$

$

Not available

42

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

43

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 5

0

44

MTD 736-0119

L.-Wash . 5/16 " I . D . " I
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 747-0458

Axle Shaft 5/8"'Dia. x 25.5" Lg.

$

$

Not available

46

MTD 741-0116

Flange Brg. w/Flats .631" I.D.

$

$

Not available

47

MTD 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

Usually ships in 3-6 days

0

48

MTD 781-0002

Frame-Engine

$

$

Not available

49

MTD 714-0133

Sq. Key 3/16" x 3/16" x 1.50" Lg.

$4.99

$

In Stock, Qty 12

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L.-Wash. 5/16 " I . D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 727-0302

High Pressure Hose

$

$

Currently unavailable

54

MTD 737-0183

Adapter-or Boss to MJIC 9/16-18 to 7/16-20

$

$

Currently unavailable

55

MTD 737-0182

Adapter 3/4" Tubing to 3/4-16 M-Boss

$

$

Currently unavailable

56

MTD 726-0132

Hose Clamp 5/8" I.D.

$15.99

$

Usually ships in 3-6 days

0

57

MTD 737-0184

Adapter 1/2" Tube 9/16-18 or M-Boss

$

$

Currently unavailable

58

MTD 717-0803

Valve Ass'y.

$

$

Currently unavailable

59

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

60

MTD 736-0264

F l .-Wash. 344" 1. D . x .62" O.D. x .063

$6.99

$

In Stock, only 1 left!

0

61

MTD 727-0301

Return Hose.50" I.D.

$

$

Not available

62

MTD 727-0300

Suction Hose .75" I.D.

$

$

Not available

63

MTD 726-0146

Hose Clamp 1/4" I.D.

$

$

Not available

64

MTD 737-0191

Adapter 1.0" Tube 1-1/16-12 "O"-Ring

$

$

Not available

65

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

66

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

67

MTD 736-0275

Fl.-Wash. .343" I.D. x .687" O.D. x .062

$6.99

$

Usually ships in 3-6 days

0

68

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-0604

Hex Hd. Tap Scr. 5/16"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

70

MTD 721-0205

Gasket

$

$

Not available

71

MTD 781-0023

End Plate

$

$

Not available

72

MTD 721-0203

Gasket

$

$

Not available

73

MTD 712-0203

Hex Nut 3/4" Thd.
(Superseded to 712-0301)

$7.99

$

In Stock, only 1 left!

0

74

MTD 736-0364

L.-Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

75

MTD 781-0036

Filler Tube Ass'y.

$

$

Currently unavailable

76

MTD 745-0174

Oil Fill Cap

$

$

Not available

77

MTD 737-0197

45ø M ale Adapter 7/16-20 MJ-1/4-18 NP

$

$

Not available

78

MTD 721-0204

"O"-Ring .92" I.D. x 1.16" O.D. x .116 Dia.

$

$

Not available

79

MTD 710-0920

Hex Bolt 3/4" x 4.0" Lg.

$

$

Currently unavailable

80

MTD 712-0338

Hex Nut 11/16-12 Thd.

$

$

Not available

81

MTD 710-0117

Hex Bolt 5/16-24 x 1 .00" Lg. (Grade 5)
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

82

MTD 747-0493

Engagement Rod 16.75" Lg.

$

$

Currently unavailable

83

MTD 736-0264

Fl.-Wash. .344" I.D. x.62" O.D. x .063

$6.99

$

In Stock, only 1 left!

0

84

MTD 714-0104

HairPin Cotter 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0
