24630S - MTD Lawn Dethatcher (1985) Thatcher Parts Diagram

Lawn Dethatcher

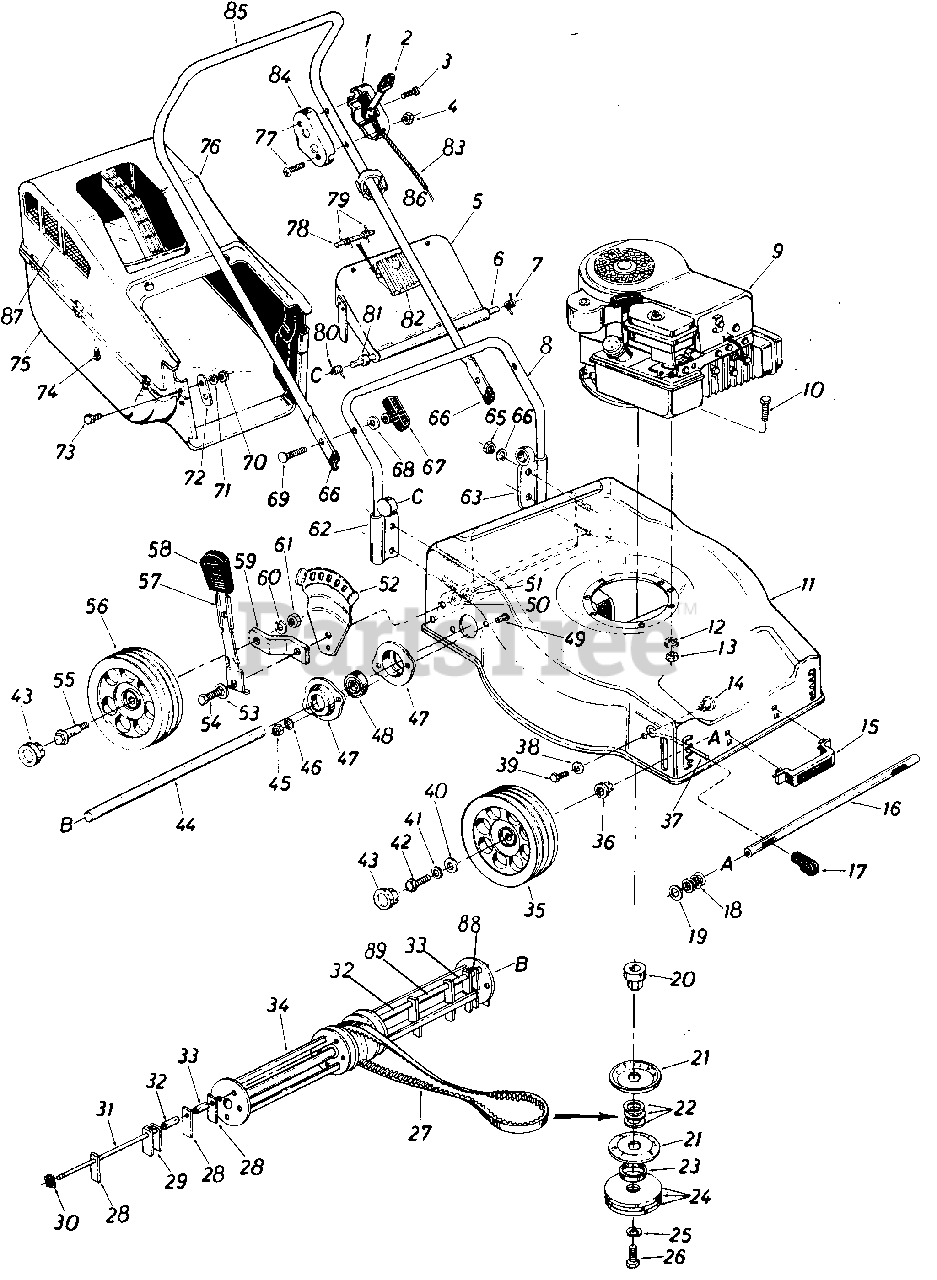

Thatcher Parts Diagram

  • Title

1

MTD K329-932

Throttle Control Housing

$

$

Currently unavailable

2

MTD K312-867

Throttle Control Lever

$

$

Currently unavailable

3

MTD K701-010

Sheet Metal Screw M5 x 30

$

$

Currently unavailable

4

MTD K700-106

Hex Nut M5

$

$

Currently unavailable

5

MTD K321-889

Deflector-Chute

$

$

Currently unavailable

6

MTD K325-832

Pivot Shaft-Chute Deflector

$

$

Currently unavailable

7

MTD K325-816

Torsion Spring-L.H.

$

$

Currently unavailable

8

MTD K328-400

Lower Handle

$

$

Currently unavailable

9

Engine

$

$

Not available

10

MTD K701-171

Hex Bolt M8 x 30

$

$

Currently unavailable

11

MTD K321-979

Deck

$

$

Currently unavailable

12

MTD K700-128

Lock Washer B8

$

$

Currently unavailable

13

MTD K700-108

Hex Nut M8

$

$

Currently unavailable

14

MTD K313-910

Spacer

$

$

Currently unavailable

15

MTD K313-357

Deck Handle-Front

$

$

Currently unavailable

16

MTD K319-661

Front Axle

$

$

Currently unavailable

17

MTD K313-751

Knob-for Front Height Adj.

$

$

Currently unavailable

18

MTD K313-976

Compression Spring

$

$

Currently unavailable

19

MTD K314-385

Spring Spacer

$

$

Currently unavailable

20

MTD K321-972

Pulley Hub

$

$

Currently unavailable

21

MTD K321-966

Pulley "V" Belt

$

$

Currently unavailable

22

MTD K321-971

Spacers

Note: (Washers)

$

$

Currently unavailable

23

MTD K321-968

Spacer

$

$

Currently unavailable

24

MTD K321-886

Fly Wheel

$

$

Currently unavailable

25

Lock Washer

$

$

Not available

26

MTD K321-885

Hex Bolt 3/8" x 45 UNF

$

$

Currently unavailable

27

MTD K321-829

"V"-Belt

$

$

Currently unavailable

28

MTD K321-876

Thatcher Blade

$

$

Currently unavailable

29

MTD K321-898

Lift Blade

$

$

Currently unavailable

30

MTD K700-897

Snap Ring 8M

$

$

Currently unavailable

31

MTD K321-894

Thatcher Blade Shaft

$

$

Currently unavailable

32

MTD K321-895

Spacer

$

$

Currently unavailable

33

MTD K321-897

Spacer

$

$

Currently unavailable

34

MTD K321-964

Thatcher Rotor

$

$

Currently unavailable

35

MTD K316-831

Front Wheel

$

$

Currently unavailable

36

MTD K314-385

Spring Spacer

$

$

Currently unavailable

37

MTD K313-916

Front Height Adjustment Lever

$

$

Currently unavailable

38

MTD K700-127

Lock Washer B6

$

$

Currently unavailable

39

MTD K700-483

Hex Bolt M6 x 12

$

$

Currently unavailable

40

MTD K700-998

Flat Wash 0 15

$

$

Currently unavailable

41

MTD K701-223

Belleville Washer M12

$

$

Currently unavailable

42

MTD K700-826

Hex Bolt M12 x 16

$

$

Currently unavailable

43

MTD K313-367

Hub Cap

$

$

Currently unavailable

44

MTD K321-894

Thatcher Blade Shaft

$

$

Currently unavailable

45

MTD K700-107

Hex Nut M6

$

$

Currently unavailable

46

MTD K700-127

Lock Washer M6

$

$

Currently unavailable

47

MTD K322-953

Flange Bearing w/Housing

$

$

Currently unavailable

48

Part of Ref. No. 47

$

$

Not available

49

MTD K700-799

Mach. Screw M6 x 16

$

$

Currently unavailable

50

MTD K700-129

Lock V\lasher B 10

$

$

Currently unavailable

51

MTD K700-109

Hex Nut M10

$

$

Currently unavailable

52

MTD K312-398

Index Plate

$

$

Currently unavailable

53

MTD K700-735

Belleville Washer

$

$

Currently unavailable

54

MTD K700-552

Hex Bolt M10 x 20

$

$

Currently unavailable

55

MTD K300-189

Rear Wheel Axle Bolt

$

$

Currently unavailable

56

MTD K316-831

Rear Wheel

$

$

Currently unavailable

57

MTD K312-399

Spring Lever w/Knob

$

$

Currently unavailable

58

Part of Ref. No. 57

$

$

Not available

59

MTD K302-745

Pivot Bracket

$

$

Currently unavailable

60

MTD K700-129

Lock Washer B10

$

$

Currently unavailable

61

MTD K700-208

Hex Nut M10

$

$

Currently unavailable

62

MTD K325-731

Handle Bracket-R.H.

$

$

Currently unavailable

63

MTD K325-732

Handle Bracket-L.H.

$

$

Currently unavailable

MTD K700-138

Flat Washer 8.4

$

$

Currently unavailable

65

MTD K700-121

Hex Nut M8

$

$

Currently unavailable

66

MTD K305-786

Handle Cap

$

$

Currently unavailable

67

MTD K316-668

Wing Nut M6

$

$

Currently unavailable

68

MTD K700-148

Lock Washer 6.4

$

$

Currently unavailable

69

MTD K312-257

Mach. Screw M6 x 50

$

$

Currently unavailable

70

Hex Nut

$

$

Not available

71

Lock Washer

$

$

Not available

72

Reinforcement Plate

$

$

Not available

73

MTD K701-661

Mach. Screw B3.92 x 32

$

$

Currently unavailable

74

MTD K701-496

Mach. Screw Self Tap B3.9 x 9.5

$

$

Currently unavailable

75

MTD K321-881

Grass Bag-Lower Half

$

$

Currently unavailable

76

MTD K330-629

Grass Bag-Upper Half

$

$

Currently unavailable

77

MTD K700-398

Screw B2.9 x 9.5

$

$

Currently unavailable

78

MTD K325-829

Pivot Pin

$

$

Currently unavailable

79

MTD K325-828

Torsion Spring for Door Snap

$

$

Currently unavailable

80

MTD K325-817

Torsion Spring-R.H.

$

$

Currently unavailable

81

MTD K325-813

Spring Spacer

$

$

Currently unavailable

82

MTD K325-812

Door Snap

$

$

Currently unavailable

83

MTD K333-802

Throttle Control Wire

$

$

Currently unavailable

84

MTD K323-314

Throttle Control Housing

$

$

Currently unavailable

85

MTD K328-247

Upper Housing

$

$

Currently unavailable

86

MTD K313-342

Cable Tie

$

$

Currently unavailable

87

MTD K325-725

Screen

$

$

Currently unavailable

88

MTD K321-896

Spacer" Lg.

$

$

Currently unavailable

89

MTD K321-873

Spacer 1 3/4" Lg.

$

$

Currently unavailable
