24604-8 - MTD Edger (1988) Edger Parts Diagram

Edger

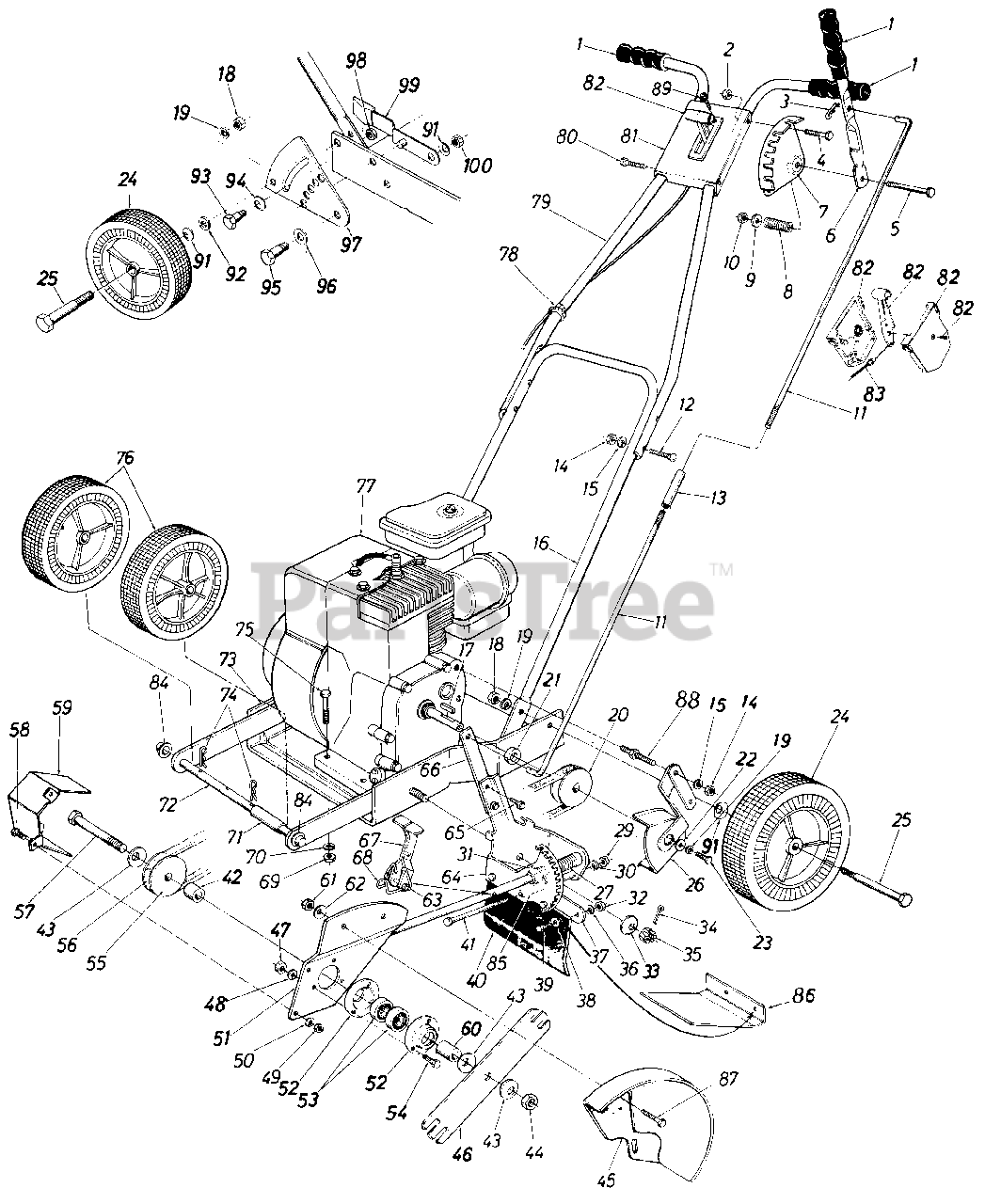

Edger Parts Diagram

  • Title

1

MTD 720-0120

Black Grip
(Superseded to 07071)

$12.99

$

Usually ships in 3-6 days

0

2

MTD 712-0107

Hex L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

3

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0

4

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

5

MTD 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 15

0

6

MTD 749-0666

Engagement Handle
(Superseded to 749-0666-0637)

Variations

MTD 749-0666-0637

Engagement Handle, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

7

MTD 781-0081

Adjustment Bracket

Variations

MTD 781-0081-0480

BRACKET-ADJ - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0081-0483

BRACKET-ADJ - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0081-0498

No Longer Available BRACKET-AD - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0081-0637

BRACKET-ADJ - POWDER BLACK (0637)

$

$

Not available

MTD 781-0081-0638

BRACKET-ADJ - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0081-0662

No Longer Available BRACKET-AD - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0081-0691

No Longer Available BRACKET-AD - BLACK JACK (0691)

$

$

Not available

MTD 781-0081-0692

BRACKET-ADJ - AGWAY BLUE (0692)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

8

MTD 732-0369

Compression Spring 1.38" Lg.
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

9

MTD 736-0264

Fl.-Wash. .344" I.D. x 62" O.D

$6.99

$

In Stock, only 1 left!

0

10

MTD 712-0158

Hex L. Nut 5 1618 Thd
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

11

MTD 747-0498

Clutch Rod Half 18 25" Lg.

$

$

Not available

12

MTD 710-0111

Carriage Bolt 1/4-20 x 1.25" Lg.

$3.99

$

Usually ships in 3-6 days

0

13

MTD 750-0628

Rod Adjustment Link

$

$

Not available

14

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

15

MTD 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

MTD 09955

Lower Handle

$

$

Not available

17

MTD 714-0122

Sq. Key 3/16" x .75" Lg.

$3.99

$

In Stock, Qty 15

0

18

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

19

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

20

MTD 756-0327

Engine Pulley

$

$

Not available

21

MTD 750-0212

Spacer .75" I.D.

$10.99

$

In Stock, Qty 18

0

22

MTD 736-0258

Fl.-Wash. .385" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 3 left!

0

23

MTD 710-0152

Hex Bolt 3/B-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

24

MTD 734-1177

Rear Wheel Ass'y. 8 x 1.75

$

$

Not available

25

MTD 738-0108

Shoulder Bolt .498" Dia.
(Superseded to 938-0108)

$6.99

$

In Stock, Qty 6

0

26

MTD 13960

Belt Guard Ass'y.

$

$

Not available

27

MTD 732-0187

Compression Spring

$2.99

$

Usually ships in 3-6 days

0

29

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 715-0247

Spring Pin Spir. 3/16" Dia.
(Superseded to 915-0247)

$

$

Not available

32

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

33

MTD 736-0112

Bell.-Wash. .535" I.D. x 1.50" O.D.

$9.99

$

Usually ships in 3-6 days

0

34

MTD 714-0115

Cotter Pin l/8" Dia. x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0

35

MTD 712-0114

Hex Slotted Nut 1/2-20 Thd.
(Superseded to 912-0114)

$

$

Not available

36

MTD 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

37

MTD 781-0087

Flap Bracket

Variations

MTD 781-0087-0637

Flap Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 736-0342

Fl.-Wash. .25" I.D. x .75" O.D. x .030

$7.49

$

Usually ships in 3-6 days

0

39

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

40

MTD 731-0725

Flap

$

$

Not available

41

MTD 710-0402

Hex Bolt 5/16-18 x 4.5" Lg.

$

$

Not available

42

MTD 750-0229

Spacer 1.030" Lg.
(Superseded to 950-0229)

$

$

Not available

43

MTD 736-0317

Bell.-Wash. .630" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

44

MTD 712-0221

Hex Ins. L.-Nut 5/8-18 Thd.

$

$

Not available

45

MTD 781-0076

Guard Ass'y.

Variations

MTD 781-0076-0637

No Longer Available GUARD ASM - POWDER BLACK (0637)

$

$

Not available

MTD 781-0076-0483

No Longer Available GUARDASSY - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0076-0498

No Longer Available GUARDASSY - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0076-0638

No Longer Available GUARDASSY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0076-0650

No Longer Available GUARDASSY - RED METALLIC (0650)

$

$

Not available

MTD 781-0076-0662

No Longer Available GUARDASSY - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0076-0665

No Longer Available GUARDASSY - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0076-0667

No Longer Available GUARDASSY - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 781-0076-0716

No Longer Available GUARDASSY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

46

MTD 781-0080

Edger Blade
(Superseded to 781-0080-0637)

Variations

MTD 781-0080-0637

Edger Blade, 5/8 Hi-Lift - POWDER BLACK (0637)

$8.99

$

In Stock, Qty 20+

0

$8.99

$

In Stock, Qty 20+

0

47

MTD 712-0287

1 lex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

48

MTD 736-0329

L.-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

49

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

50

MTD 736-0329

L.Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

51

MTD 781-0078

Spindle Plate Ass'y.

Variations

MTD 781-0078-0637

PLATE-ASSY.SPINDLE - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 15319

Bearing Housing 1-3/8" I.D.
(Superseded to 15319B)

$10.99

$

In Stock, Qty 5

0

53

MTD 741-0155

Ball Bearing .62" I.D. x 1.38" O.D.
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 18

0

54

MTD 710-0258

Hex Bolt 1/4-20 x 62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

55

MTD 756-0449

3/8" "V"-Pulley 2" x 5/8" I.D.
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

56

MTD 754-0142

"V"-Belt
(Superseded to 954-0142)

$30.99

$

In Stock, Qty 12

0

57

MTD 710-0929

Hex Bolt 5/8-18 x 4.5" Lg.
(Superseded to 710-3151A)

$18.99

$

Usually ships in 3-6 days

0

58

MTD 710-0289

Hex Bolt 1/4 20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

59

MTD 781-0086

Belt Guard
(Superseded to 781-0427-0637)

Variations

MTD 781-0086-0637

Belt Guard, Black - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

60

MTD 750-0118

Sleeve .90" Lg
(Superseded to 950-0118)

$

$

Not available

61

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0242

Bell.-Wash 345" I.D. x 88" O.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 715-0121

Spring Pin Spir. 1/4" Dia.

$6.99

$

In Stock, Qty 8

0

64

MTD 781-0090

Pivot Bracket Ass'y.

Variations

MTD 781-0090-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0090-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0090-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0090-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0090-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

MTD 710-0600

Hex Wash. Hd. Self Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

66

MTD 781-0075

Arm Extension
(Superseded to 781-0075-0637)

Variations

MTD 781-0075-0637

EXTENSION-ARM - POWDER BLACK (0637)

$

$

Not available

$

$

67

MTD 781-0093

Adjustment Lever Ass'y.
(Superseded to 981-0093)

$

$

Not available

68

MTD 732-0188

Torsion Spring
(Superseded to 732-0188A)

$12.99

$

In Stock, Qty 10

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

71

MTD 750-0622

Spacer 1.62" Lg.

$

$

Not available

72

MTD 738-0613

Axle 8.75" Lg.

Note: (Front)

$

$

Currently unavailable

73

MTD 781-0083

Base Ass'y.

$

$

Not available

74

MTD 714-0101

Hair Pin Cotter 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

75

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

76

MTD 734-1176

Front Wheel Ass'y. 7 x 1.50

$

$

Not available

77

Engine

$

$

Not available

78

MTD 726-0192

Cable Tie

$

$

Not available

79

MTD 749-0667

Upper Handle

$

$

Not available

80

MTD 710-0597

Hex Bolt 1/4-20 x 1.00" Lg.

$3.99

$

In Stock, Qty 14

0

81

MTD 781-0092

Handle Support Plate

$

$

Not available

82

MTD 831-0796

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

In Stock, only 2 left!

0

83

MTD 746-0635

Throttle Control Wire 30" Lg.
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

84

MTD 726-0221

Push Cap 1/2"Dia.

$6.49

$

In Stock, only 1 left!

0

85

MTD 711-0386

Spacer 3.765" Lg.

$

$

Not available

86

MTD 781-0095

Debris Deflector .25" Lg.

Variations

MTD 781-0095-0637

DEFLECTOR-DEBRIS - POWDER BLACK (0637)

$

$

Not available

MTD 781-0095-0483

No Longer Available DEFLECTOR- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0095-0638

No Longer Available DEFLECTOR-DEBRIS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0095-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

87

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg. Spec.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

88

MTD 751-0271

Stud 1/4 20 x 2.12" Lg.

$

$

Not available

89

MTD 710-0779

Self-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

91

MTD 736-0105

Bell.-Wash. .40" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

92

MTD 736-0280

Fl.-Wash. .39" I.D. x 1.12"
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

93

MTD 738-0258

Shld. Bolt .50" Dia. x .25" Lg.
(Superseded to 938-0258)

$

$

Not available

94

MTD 736-0255

Bell-Wash. .515" I.D. x 1.14"

$4.99

$

In Stock, only 3 left!

0

95

MTD 738-0183

Shld. Bolt .50" Dia
(Superseded to 938-0183)

$

$

Not available

96

MTD 736-0272

Fl. Wash. 51" I.D. x 1"

$4.99

$

In Stock, Qty 20+

0

97

MTD 781-0100

Curb Height Adjuster

Variations

MTD 781-0100-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0100-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 781-0100-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

98

MTD 712-0375

Hex L Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

99

MTD 732-0552

Spring Adj. Lever
(Superseded to 932-0552)

$

$

Not available

100

MTD 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0
