246 - Husqvarna Chainsaw (SN: 20014000001 & Above) SERVICE UPDATES Parts Diagram

Chainsaw

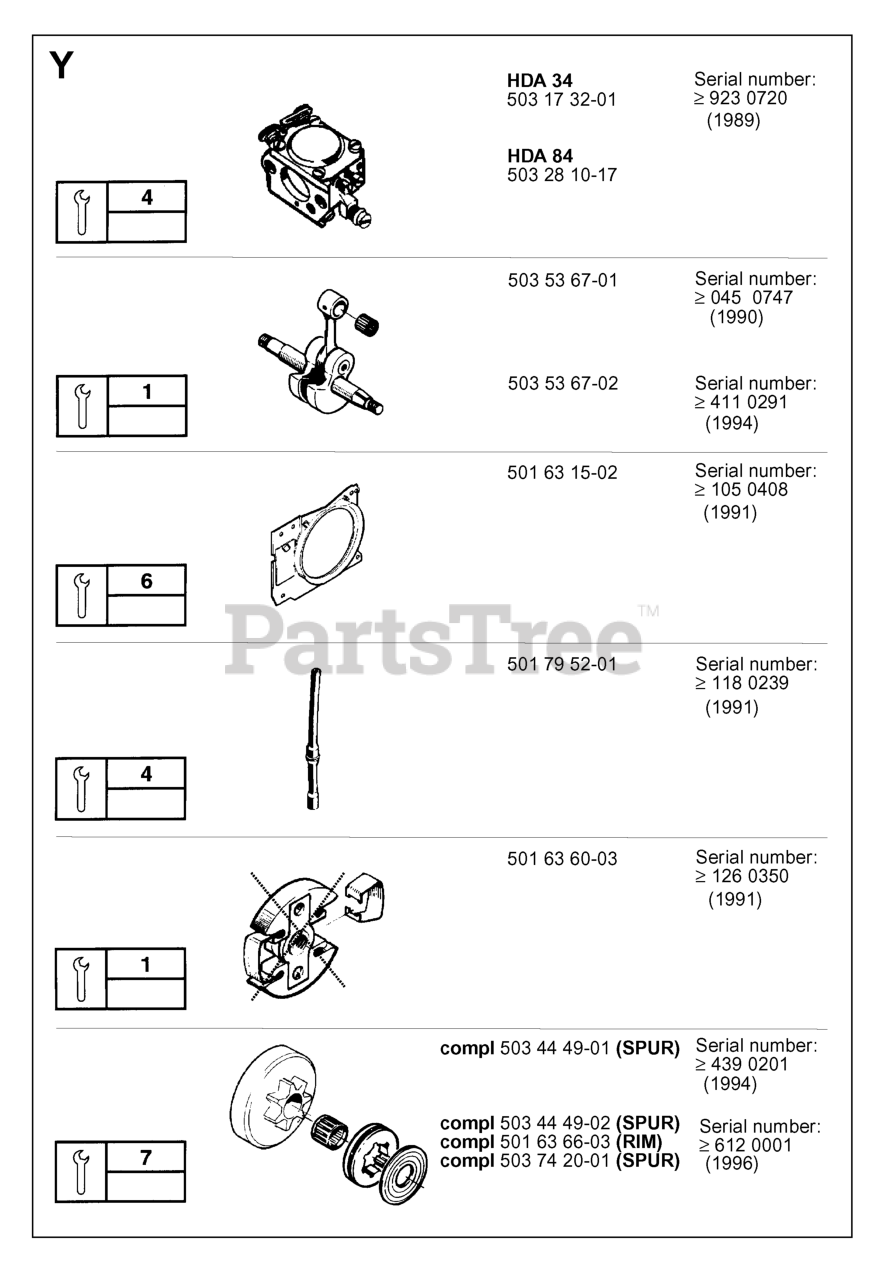

SERVICE UPDATES Parts Diagram

  • Title

503 53 67-01

Husqvarna 503536701

CRANKSHAFT CPL
(Superseded to 503536703)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 045 0747 (1990)

$

$

Not available

503 74 20-01

Husqvarna 503742001

CLUTCH COMP 325 X 7 SPUR
(Superseded to 503742002)

Note: SPUR SERIAL NUMBER: GREATER THAN OR EQUAL TO 612 0001 (1996)

$

$

Not available

501 63 66-03

Husqvarna 501636603

CLUTCH DRUM
(Superseded to 501636605)

Note: RIM SERIAL NUMBER: GREATER THAN OR EQUAL TO 612 0001 (1996)

$

$

Not available

501 79 52-01

Husqvarna 501795201

FUEL HOSE

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 118 0239 (1991)

$6.99

$

Usually ships in 3-10 days

0

503 53 67-02

Husqvarna 503536702

CRANKSHAFT CPL
(Superseded to 503536704)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 411 0291 (1994)

$

$

Not available

503 44 49-02

Husqvarna 503444902

NEEDS DESCRIPTION

Note: SPUR SERIAL NUMBER: GREATER THAN OR EQUAL TO 612 0001 (1996)

$

$

Not available

501 63 15-02

Husqvarna 501631502

AIR CONDUCTOR

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 105 0408 (1991)

$

$

Not available

501 63 60-03

Husqvarna 501636003

CLUTCH ASS'Y
(Superseded to 503657101)

Note: SERIAL NUMBER: GREATER THAN OR EQUAL TO 126 0350 (1991)

$

$

Not available

503 17 32-01

Husqvarna 503173201

REPL BY 503 28 10-17
(Superseded to 503281019)

Note: HDA 34 SERIAL NUMBER: GREATER THAN OR EQUAL TO 923 0720 (1989)

$198.48

$

Usually ships in 3-10 days

0

503 28 10-17

Husqvarna 503281017

CARBURETOR CPL
(Superseded to 503281019)

Note: HDA 84 SERIAL NUMBER: GREATER THAN OR EQUAL TO 923 0720 (1989)

$198.48

$

Usually ships in 3-10 days

0

503 44 49-01

Husqvarna 503444901

29105 DRUM
(Superseded to 640200097)

Note: SPUR SERIAL NUMBER: GREATER THAN OR EQUAL TO 439 0201 (1994)

$

$

Not available
