246 - Husqvarna Chainsaw (SN: 19950600001 - 19982300000) ELECTRICAL Parts Diagram

Chainsaw

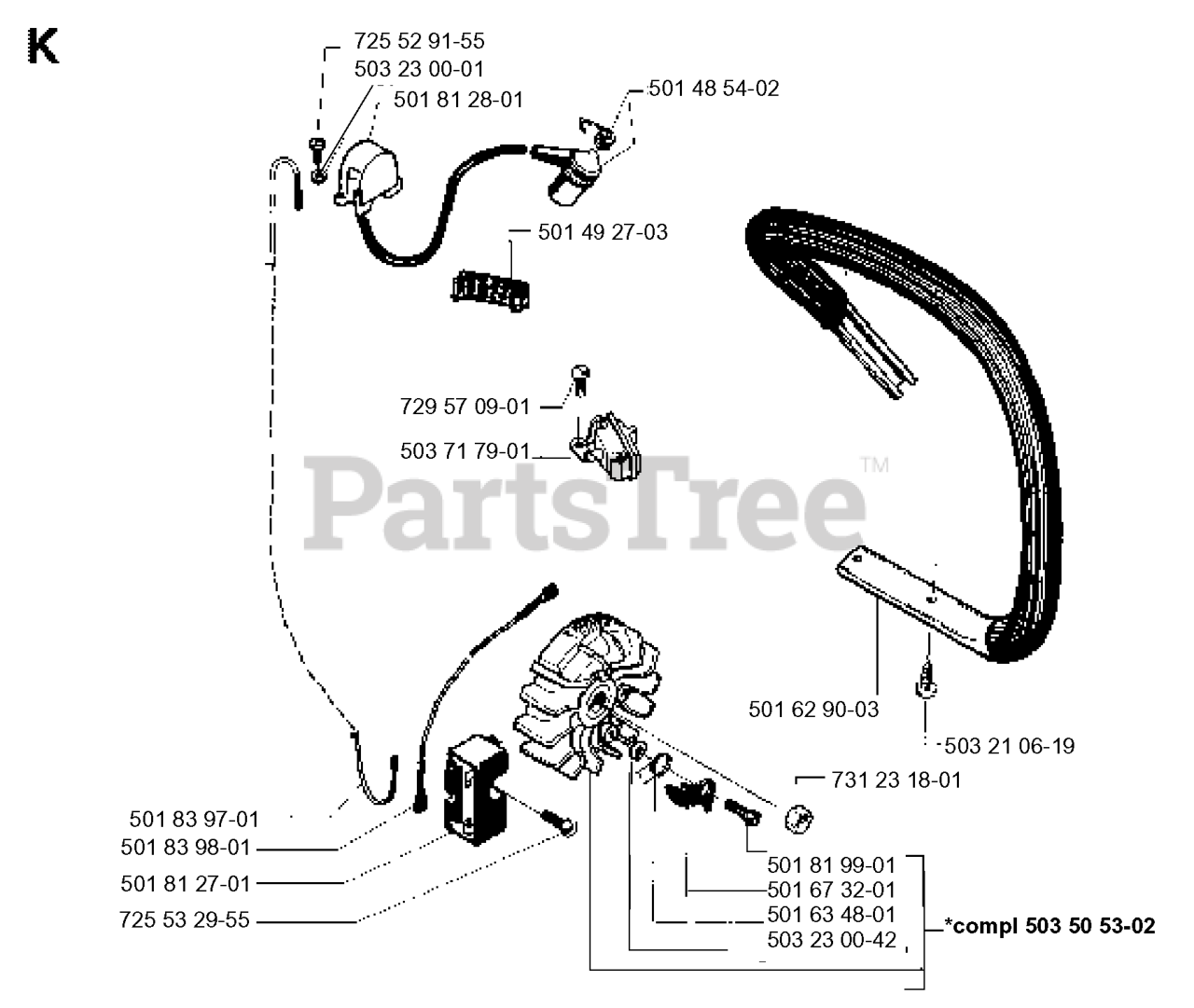

ELECTRICAL Parts Diagram

  • Title

729 57 09-01

Husqvarna 729570901

Screw

$

$

Not available

501 63 48-01

Husqvarna 501634801

SPRING

$4.99

$

In Stock, Qty 14

0

503 50 53-02

Husqvarna 503505302

FLYWHEEL
(Superseded to 503730601)

$

$

Not available

501 67 32-01

Husqvarna 501673201

PAWL

$8.99

$

Usually ships in 3-10 days

0

501 81 27-01

Husqvarna 501812701

ELECTRONIC BOX

$

$

Not available

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 3 left!

0

503 71 79-01

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, Qty 6

0

501 81 99-01

Husqvarna 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 6

0

501 81 28-01

Husqvarna 501812801

IGNITION COIL

$90.99

$

Usually ships in 3-10 days

0

725 53 29-55

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

501 49 27-03

Husqvarna 501492703

COVER

$5.99

$

In Stock, Qty 6

0

501 62 90-03

Husqvarna 501629003

FRONT HANDLE

$

$

Not available

503 21 06-19

Husqvarna 503210619

SCREW

$

$

Not available

501 83 97-01

Husqvarna 501839701

LEAD

$

$

Not available

503 23 00-01

Husqvarna 503230001

WASHER 4.2X9

$4.99

$

In Stock, only 2 left!

0

501 83 98-01

Husqvarna 501839801

SHORTING LEAD

$13.99

$

In Stock, only 1 left!

0

725 52 91-55

Husqvarna 725529155

SCREW MC6S 4X12

$3.49

$

Usually ships in 3-10 days

0

731 23 18-01

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available
