246 - Husqvarna Chainsaw (1994-12) Oil Pump/Clutch Parts Diagram

Chainsaw

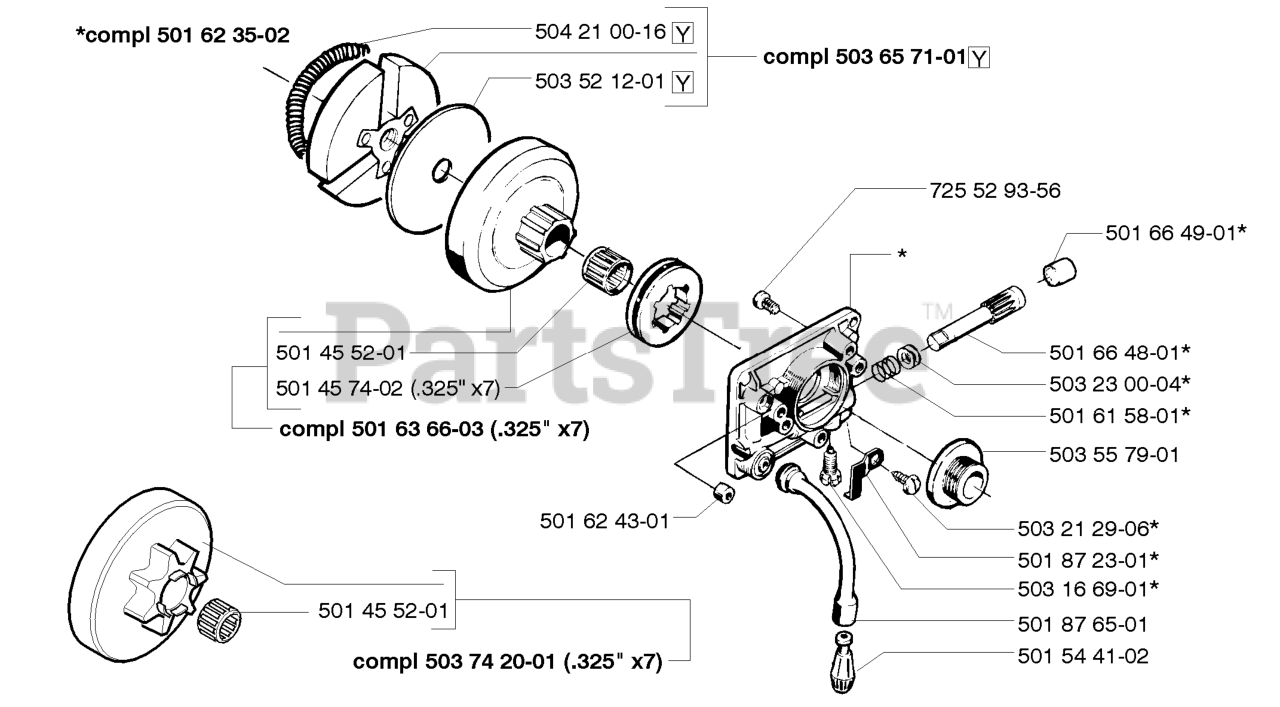

Oil Pump/Clutch Parts Diagram

  • Title
501623502

$

$

Not available

501455201

Husqvarna 501455201

19535 BEARING
(Superseded to 640200038)

$

$

Not available

501457402

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

$8.49

$

In Stock, Qty 10

0

501636603

Husqvarna 501636603

CLUTCH DRUM
(Superseded to 501636605)

$

$

Not available

501624301

$

$

Not available

501455201

Husqvarna 501455201

19535 BEARING
(Superseded to 640200038)

$

$

Not available

503742001

Husqvarna 503742001

CLUTCH COMP 325 X 7 SPUR
(Superseded to 503742002)

$

$

Not available

504210016

$5.99

$

In Stock, only 3 left!

0

503521201

$

$

Not available

503657101

Husqvarna 503657101

CLUTCH COMPLETE

$

$

Not available

725529356

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, only 2 left!

0

501664901

$

$

Not available

501664801

Husqvarna 501664801

PUMP PLUNGER

$

$

Not available

503230004

Husqvarna 503230004

WASHER 6.1X9

$4.99

$

Usually ships in 3-10 days

0

501615801

$6.99

$

Usually ships in 3-10 days

0

503557901

$14.99

$

In Stock, only 1 left!

0

503212906

$4.99

$

In Stock, only 4 left!

0

501872301

Husqvarna 501872301

CATCH ADJ.SCREW

$

$

Not available

503166901

$

$

Not available

501876501

$

$

Not available

501544102

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 1 left!

0
