24583 - Murray 40" Snow Thrower, Tractor Mounted (2002) Frame Mount Assembly Parts Diagram

40" Snow Thrower, Tractor Mounted

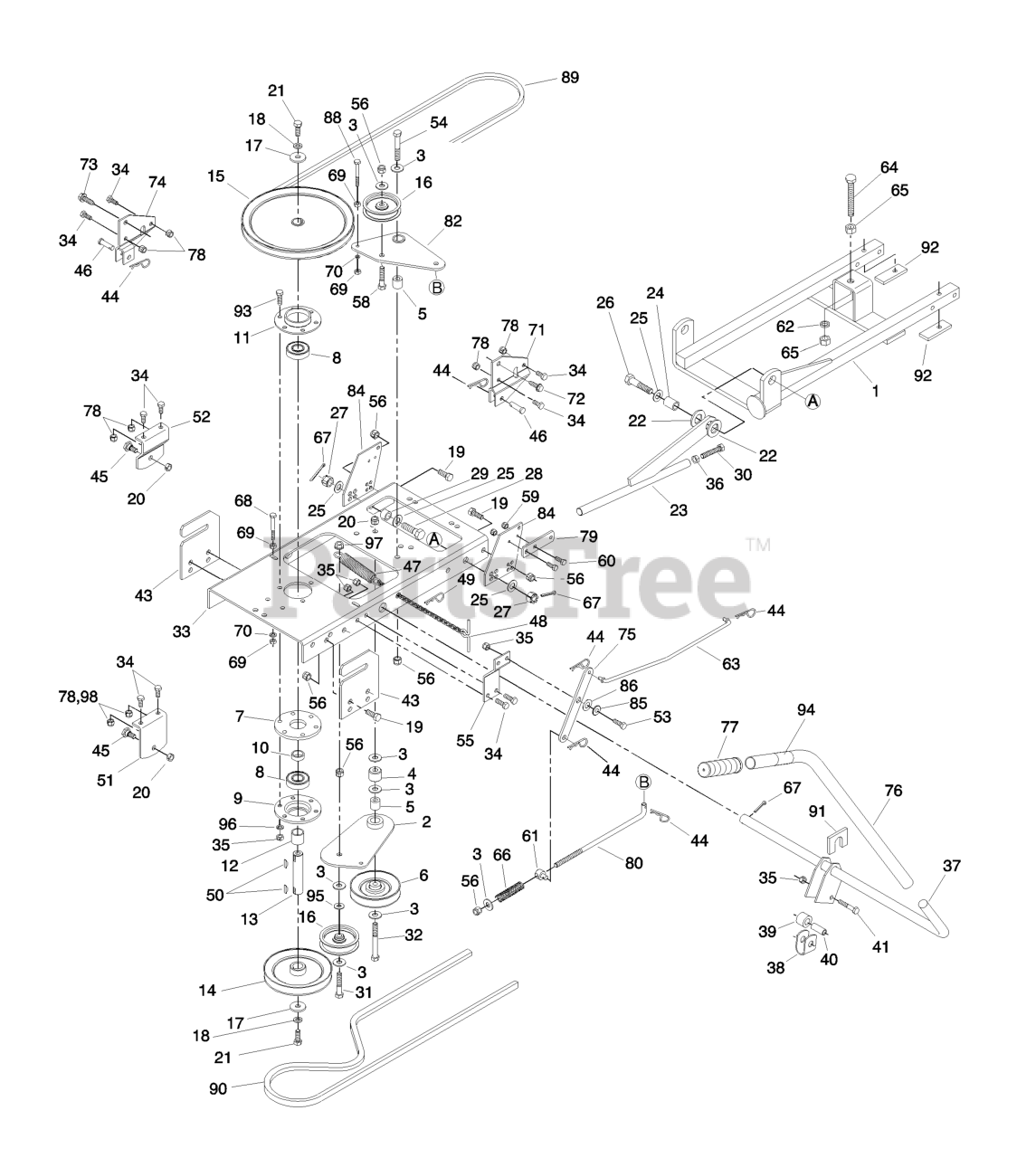

Frame Mount Assembly Parts Diagram

  • Title

1

Murray 7101201

Mounting Frame Assembly

$

$

Currently unavailable

2

Murray 7101197

Idler Bracket Assembly

$

$

Currently unavailable

3

Murray 017X53MA

Washer, 3/8" Flat
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

4

Murray 7101074

Spacer, .41 ID x 1.0 OD x .75" L

$

$

Currently unavailable

5

Murray 7101079

Bushing, .38 ID x .75 OD x .75" L

$

$

Currently unavailable

6

Murray 7101145

Pulley, V Idler 4" Dia.

$47.99

$

Usually ships in 2-12 days

0

7

Murray 7101190

Spacer, Spindle

$

$

Currently unavailable

8

Murray 7101170

Bearing, Ball

$

$

Currently unavailable

9

Murray 7101188

Housing, Bearing

$

$

Currently unavailable

10

Murray 7101173

Spacer

$

$

Currently unavailable

11

Murray 7101189

Housing, Open Bearing

$

$

Currently unavailable

12

Murray 7101172

Spacer

$

$

Currently unavailable

13

Murray 7101091

Shaft, .787 Dia. x 3.81 L

$

$

Currently unavailable

14

Murray 7101140

Pulley, 5-1/2" Dia.

$

$

Currently unavailable

15

Murray 7101139

Pulley, 9" Dia.

$

$

Currently unavailable

16

Murray 7101174

Pulley, 3-3/4" Dia.

$45.99

$

Usually ships in 2-12 days

0

17

Murray 7101169

Washer, Flat .406" ID x 1.25" OD

$

$

Currently unavailable

18

Murray 018X31MA

Lockwasher, 3/8"

$4.49

$

Usually ships in 2-12 days

0

19

Murray 01X137MA

Hex Bolt, 3/8-16 x 1"

$3.49

$

Usually ships in 2-12 days

0

20

Murray 015X84MA

Hex Lock Nut, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

21

Murray 001X20MA

Hex Bolt, 3/8-24 x 1"

$4.49

$

In Stock, only 4 left!

0

22

Murray 7101212

Washer, 13/16" x 1-1/2" x .134"
(Superseded to 7101212YP)

$8.99

$

Usually ships in 2-12 days

0

23

Murray 7001147

Lift Extension Assembly

$

$

Currently unavailable

24

Murray 7101207

Spacer, .53" ID x .75 OD" x 1.0" L
(Superseded to 7101207YP)

$8.49

$

In Stock, only 2 left!

0

25

Murray 17X175MA

Washer, 17/32" x 1" x 16 Ga.

$3.49

$

Usually ships in 2-12 days

0

26

Murray 7101208

Hex Bolt, 1/2-20 x 2-1/4" Gr. 8

$

$

Currently unavailable

27

Murray 7101210

Castle Nut, 1/2-20

$

$

Currently unavailable

28

Murray 7101209

Hex Bolt, 1/2-20 x 1-3/4" Gr. 8

$

$

Currently unavailable

29

Murray 7101094

Spacer, .53" ID x .75" OD x .50" L

$4.49

$

Usually ships in 2-12 days

0

30

Murray 7101213

Hex Bolt, 3/8-16 x 2" (Full Thread)

$

$

Currently unavailable

31

Murray 7101103

Hex Bolt, 3/8-16 x 2-1/4"

$

$

Currently unavailable

32

Murray 01X123

Hex Bolt, 3/8-16 x 3-1/4"

$

$

Currently unavailable

33

Murray 7101089

Frame, Lift & Pulley

$

$

Currently unavailable

34

Murray 001X91MA

Hex Bolt, 5/16-18 x 3/4"
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

35

Murray 015X88MA

Hex Lock Nut, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

36

Murray 7101101

Hex Nut, 3/8-16

$

$

Currently unavailable

37

Murray 7101202

Lift Bar Assembly
(Superseded to 7101202YP)

$6.99

$

Usually ships in 2-12 days

0

38

Murray 7101219

Bracket, Lift Stabilizer

$

$

Currently unavailable

39

Murray 7101211

Spacer, .53 ID x .75 OD x .75 L

$

$

Currently unavailable

40

Murray 7001003

Spacer, .37 ID x .50 OD x 1.125 L

$

$

Currently unavailable

41

Murray 001X75MA

Hex Bolt, 5/16-18 x 1-3/4"

$3.99

$

Usually ships in 2-12 days

0

43

Murray 7101080

Plate, Rear Mounting

$

$

Currently unavailable

44

Murray 0031X6MA

Pin, Hairpin .09 x 1.58"
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

45

Murray 7101191

Shoulder Bolt, 3/8-16 x 5/8"

$

$

Currently unavailable

46

Murray 7101221

Clevis Pin, 3/8" x 1-1/4"

$3.49

$

Usually ships in 2-12 days

0

47

Murray 7101194

Spring, Extension .75" OD

$

$

Currently unavailable

48

Murray 7101138

Pull Chain

$

$

Currently unavailable

49

Murray 7101118

Pin, Haircotter (1/8")

$2.99

$

Usually ships in 2-12 days

0

50

Murray 7101171

Key, (Hi-Pro)

$

$

Currently unavailable

51

Murray 7101092

Bracket, Rear Hanger (RH)

$8.99

$

Usually ships in 2-12 days

0

52

Murray 7101093

Bracket, Rear Hanger (LH)

$9.49

$

Usually ships in 2-12 days

0

53

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

54

Murray 01X111MA

Hex Bolt, 3/8-16 x 1-1/2"

$4.49

$

In Stock, only 1 left!

0

55

Murray 7101086

Bracket, Pivot

$

$

Currently unavailable

56

Murray 015X97MA

Hex Lock Nut, 3/8-16 (Nylock)

$3.49

$

Usually ships in 2-12 days

0

58

Murray 001X87MA

Hex Bolt, 3/8-16 x 1-3/4"

$3.99

$

Usually ships in 2-12 days

0

59

Murray 015X89MA

Hex Lock Nut, 1/4-20 (Nylock)

$4.49

$

Usually ships in 2-12 days

0

60

Murray 001X76MA

Hex Bolt, 1/4-20 x 1"

$3.49

$

Usually ships in 2-12 days

0

61

Murray 7001026

Anchor, Clutch Rod

$

$

Currently unavailable

62

Murray 018X27MA

Lockwasher, 1/2"

$3.49

$

Usually ships in 2-12 days

0

63

Murray 7101155

Rod, Engagement

$

$

Currently unavailable

64

Murray 7101126

Hex Bolt, 1/2-13 x 3-1/2" Full Thd.

$1.99

$

Usually ships in 2-12 days

0

65

Murray 7101102

Hex Nut, 1/2-13

$

$

Currently unavailable

66

Murray 7101153

Spring, Coil

$

$

Currently unavailable

67

Murray 030X49MA

Pin, Cotter 1/8 x 1-1/4"

$4.49

$

In Stock, Qty 11

0

68

Murray 01X106MA

Hex Bolt, 1/4-20 x 2-3/4"
(Superseded to 703163)

$3.49

$

Usually ships in 2-12 days

0

69

Murray 7101116

Hex Nut, 1/4-20

$

$

Currently unavailable

70

Murray 018X32MA

Lockwasher, 1/4"

$3.49

$

Usually ships in 2-12 days

0

71

Murray 7001102MA

Front Hanger Bracket (LH)

$46.99

$

Usually ships in 2-12 days

0

72

Murray 7001218

Screw, 5/16-18 x 1" Self Tap

$

$

Currently unavailable

73

Murray 0025X7MA

Screw, 3/8-16 x 1-1/4" Thd. Form.
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

74

Murray 7001101MA

Front Hanger Bracket (RH)

$52.99

$

Usually ships in 2-12 days

0

75

Murray 7101087

Bell Crank Bracket

$

$

Currently unavailable

76

Murray 7001030

Handle, Lift

$

$

Currently unavailable

77

Murray 7101121

Grip

$2.49

$

Usually ships in 2-12 days

0

78

Murray 15X123MA

Hex Lock Nut, 5/16-18 (Nylok)

$3.99

$

Usually ships in 2-12 days

0

79

Murray 7101088

Bracket, Electric Clutch

$

$

Currently unavailable

80

Murray 7101152

Rod, Lower Clutch

$

$

Currently unavailable

82

Murray 7101203

Idler Arm Assembly

$

$

Currently unavailable

84

Murray 7101081

Plate, Front Mounting

$

$

Currently unavailable

85

Murray 7101216

Step Bushing

$

$

Currently unavailable

86

Murray 7101127

Washer, 1/2" x 1" OD x .020"
(Superseded to 7101127YP)

$41.99

$

In Stock, only 1 left!

0

88

Murray 001X71

Hex Bolt, 1/4-20 x 1-1/2"

$4.49

$

In Stock, only 4 left!

0

89

Murray 7101154

Belt, Upper

$69.99

$

Usually ships in 2-12 days

0

90

Murray 7101223

Belt, Lower

$162.99

$

Usually ships in 2-12 days

0

91

Murray 7101090

Lift Bar Bracket

$

$

Currently unavailable

92

Murray 7101220

Shim Strap

$

$

Currently unavailable

93

Murray 01X139MA

Hex Bolt, 5/16-18 x 1-1/4"

$3.49

$

In Stock, Qty 5

0

94

Murray 7101214

Label, Handle

$

$

Currently unavailable

95

Murray 7101168

Spacer, Bushing

$

$

Currently unavailable

96

Murray 018X15MA

Lockwasher, 5/16"

$3.99

$

In Stock, only 1 left!

0

97

Murray 015X84MA

Hex Lock Nut, 3/8-16 (Washer Face)
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

98

UNKNOWN

$

$

Not available
