2450 (86069) - Snapper Walk-Behind Trimmer 2450R.T. Recoil Starter Assm'y Parts Diagram

Walk-Behind Trimmer

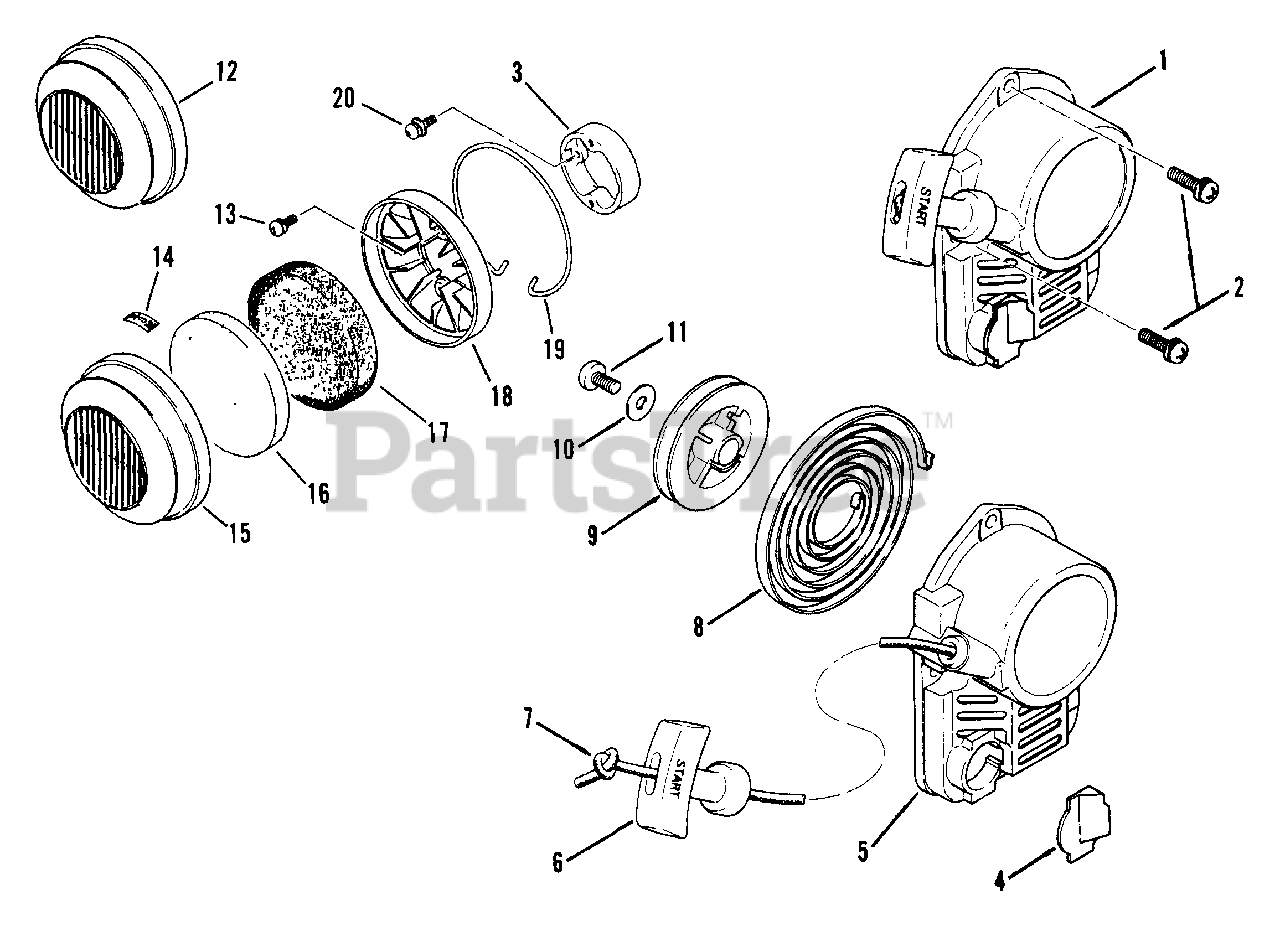

2450R.T. Recoil Starter Assm'y Parts Diagram

  • Title
1

Snapper 7044371

RECOIL STARTER ASSM'Y.

Note: (Includes items 4 thru 11)

$

$

Not available

2

Snapper 7044549

SCREW/WASHER

Note: Was 44328

$1.99

$

In Stock, only 1 left!

0

3

$

$

Currently unavailable

$

$

Currently unavailable

5

Snapper 7044379

HOUSING, Starter

$

$

Currently unavailable

6

Snapper 7044115

KNOB, Starter

$

$

Currently unavailable

7

Snapper 7044377

ROPE, Starter

$

$

Currently unavailable

8

Snapper 7044376

SPRING, Spiral

$

$

Not available

$

$

Not available

10

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Snapper 7044273

ASSEMBLY, Air Cleaner

Note: (Includes items 14 thru 20 & 3)

$

$

Currently unavailable

13

Snapper 7044274

SCREW/WASHER

$

$

Currently unavailable

14

Snapper 44275

LABEL, Choke

$

$

Currently unavailable

15

Snapper 7044276

COVER, Cleaner

$

$

Not available

16

Snapper 7044277

ELEMENT, Cleaner

$

$

Not available

17

Snapper 7044278

ELEMENT, Cleaner

$

$

Not available

18

Snapper 7044279

CASE, Cleaner

$

$

Not available

19

$12.99

$

Usually ships in 2-12 days

0

20

Snapper 7044281

SCREW/WASHER

$

$

Currently unavailable
