245 (UT-10638-A) - Homelite Chainsaw Engine Internals Parts Diagram

Chainsaw

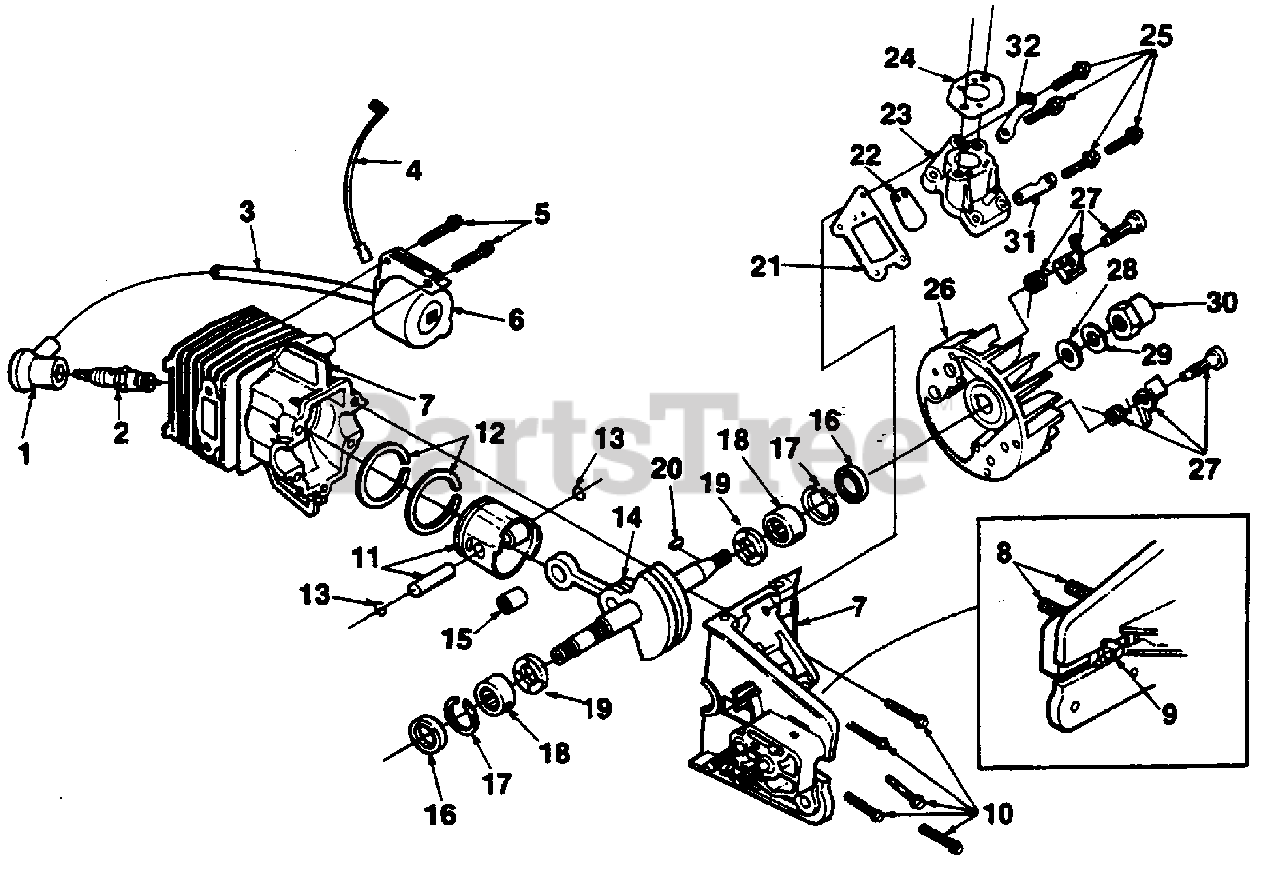

Engine Internals Parts Diagram

  • Title
1

Homelite A94754

TERMINAL- High tension lead

$7.49

$

Usually ships in 3-7 days

0

2

Homelite 96169S

SPARK PLUG (DJ-7Y)
(Superseded to UP03883)

$5.49

$

In Stock, only 3 left!

0

3

Homelite 69326

LEAD- High tension

$

$

Not available

4

Homelite A96378

LEAD- Ground
(Superseded to A96378A)

$

$

Currently unavailable

5

Homelite 82430

SCREW- Mach., hex hd. 8-32 x 7/8

$

$

Not available

6

Homelite 947111

MODULE- Ignition

Note: (Includes items #1 and #3)

$

$

Currently unavailable

7

Homelite A96753A

CRANKCASE & CYLINDER

$

$

Not available

8

Homelite 96083

BOLT- Guide bar

$

$

Not available

9

Homelite 50558

FITTING

$

$

Not available

10

Homelite 96624

SCREW- 10-24 x 1 1/8

$

$

Not available

11

Homelite A96751A

PISTON & PIN

$

$

Not available

12

Homelite 94916

PISTON RINGS

$

$

Not available

13

Homelite 65261

RING- Retaining

$

$

Not available

14

Homelite A96752

CRANKSHAFT

$

$

Currently unavailable

15

Homelite 97125

BEARING- Needle

$

$

Not available

16

Homelite 94638

SEAL- Shaft
(Superseded to 09108)

$

$

Not available

17

Homelite 68514

RING- Retaining

$

$

Not available

18

Homelite 12530

BEARING- Needle

$

$

Not available

19

Homelite 95492

BEARING- Thrust

$

$

Not available

20

Homelite 69250

KEY- Magneto

$

$

Not available

21

Homelite 94873

GASKET- Manifold

$

$

Not available

22

Homelite 95983

REED
(Superseded to UP07391)

$8.99

$

Usually ships in 3-7 days

0

23

Homelite 948721

MANIFOLD- Intake

$

$

Currently unavailable

24

Homelite 95022A

GASKET- Carburetor
(Superseded to UP07444)

$

$

Not available

25

Homelite 82291

SCREW- Hex washer 8-32 x 5/8

$

$

Not available

26

Homelite A95007

ROTOR- Magneto
(Superseded to UP04242)

$

$

Not available

27

Homelite A70285D

PAWL- Starter
(Superseded to UP07636)

$101.99

$

Usually ships in 3-7 days

0

28

Homelite 84065

WASHER- Flat 5/16
(Superseded to UP04241)

$

$

Not available

29

Homelite 83002

WASHER- Lock 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

30

Homelite 96255

NUT- Guide

$

$

Not available

31

Homelite 96540

WASHER- Intake manifold

$

$

Not available

32

Homelite 96539

WASHER- Intake manifold

$

$

Not available
