245 (UT-10638-A) - Homelite Chainsaw Chain Brake Parts Diagram

Chainsaw

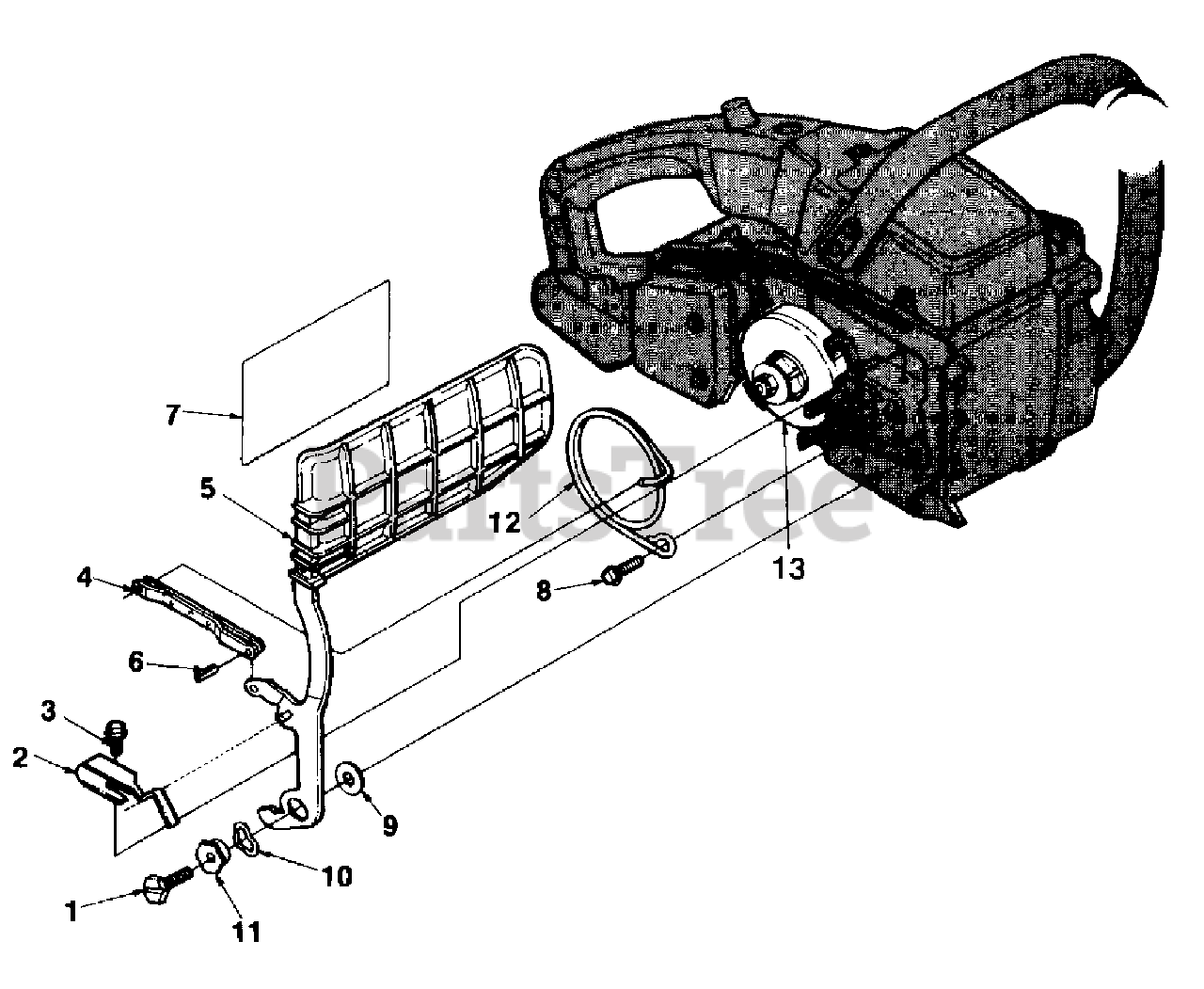

Chain Brake Parts Diagram

  • Title

1

Homelite 80048

SCREW- Hex cap 1/4-20 x 5/8
(Superseded to UP03380)

$

$

Not available

2

Homelite 95406

CLIP- Retaining

$

$

Not available

3

Homelite 88048

SCREW- Hex Sems 10-24 x 3/8
(Superseded to 5687301)

$

$

Not available

4

Homelite A70767

LINK- Pivot

$

$

Not available

5

Homelite A97179

HAND GUARD

$

$

Currently unavailable

6

Homelite 95395

PIN- Roll
(Superseded to 671099001)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 96990

DECAL
(Superseded to 02661)

$

$

Not available

8

Homelite 88050

SCREW- Hex Sems 10-24 x 5/8
(Superseded to 88063)

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 95397

WASHER- Thrust

$

$

Not available

10

Homelite 95486

WASHER- Curved

$

$

Not available

11

Homelite 96170

CAM- Brake lever

$

$

Not available

12

Homelite 95482

BAND- Brake
(Superseded to UP07442)

$12.99

$

Usually ships in 3-7 days

0

13

Homelite A97056

SPROCKET & DRUM .325P-8T

$

$

Not available

Homelite 68512

BEARING (not shown)
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0
