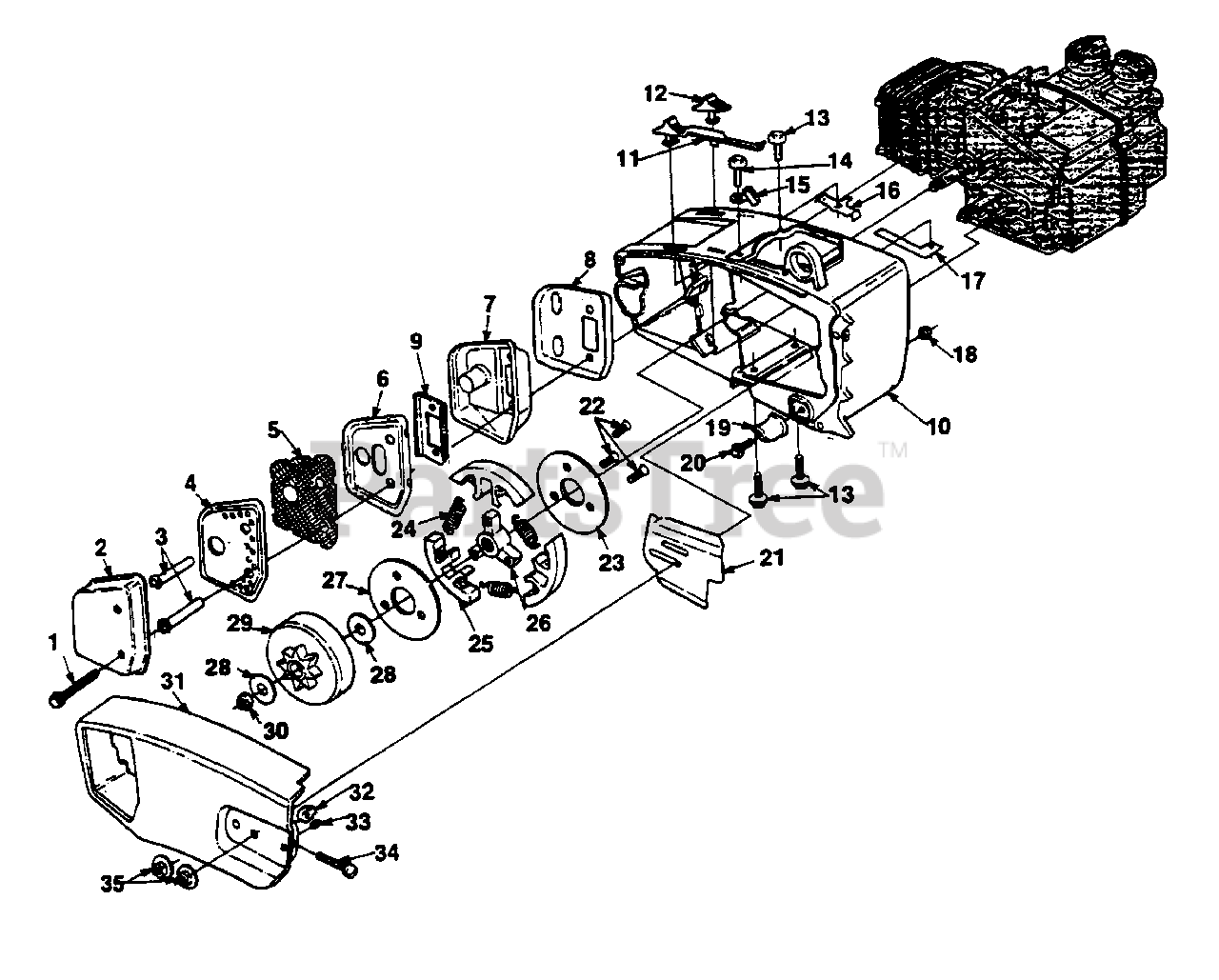

245 (UT-10635) - Homelite Chainsaw Muffler, Clutch And Housing Parts Diagram

Chainsaw

Muffler, Clutch And Housing Parts Diagram

  • Title

Homelite A96931

MUFFLER- Complete

Note: Includes items 1 - 9.

$

$

Currently unavailable

1

$

$

Not available

2

Homelite 948871

CAP- Muffler

$

$

Not available

3

$

$

Not available

4

Homelite 96928

BAFFLE- Muffler

$

$

Not available

5

Homelite 956371

SCREEN- Spark arrestor

$

$

Not available

6

Homelite 948881

BAFFLE- Muffler

$

$

Not available

7

Homelite A96930

BODY- Muffler

$

$

Not available

8

Homelite 96925

DEFLECTOR- Exhaust

$

$

Not available

9

Homelite 94889

PLATE- Muffler

$

$

Not available

10

Homelite 94951A

HOUSING- Engine

$

$

Currently unavailable

11

Homelite 95050

BUTTON- Choke
(Superseded to UP03370)

$

$

Not available

12

Homelite 95086A

BUTTON- Stop switch

$

$

Currently unavailable

13

Homelite 88063

SCREW- Hex Sems 10-24 x 5/8

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 88050

SCREW- 10-24 x .625
(Superseded to 88063)

$2.99

$

Usually ships in 3-7 days

0

15

Homelite 94864

BRACKET- Cable

$

$

Not available

16

Homelite 95087

SPRING- Stop switch

$

$

Not available

17

Homelite 95091

CONTACT- Stop switch

$

$

Not available

18

Homelite 81256

NUT- Lock 10-24

$

$

Not available

19

Homelite 95212

STOP- Chain

$

$

Not available

20

Homelite 82298

SCREW- Mach. hex 10-24 x 5/8
(Superseded to 82593)

$4.99

$

Usually ships in 3-7 days

0

21

Homelite 95390

PLATE- Guide bar

$

$

Not available

22

Homelite 97605

SCREW- Flat hd. 7/16-18

$

$

Not available

23

Homelite 969191

COVER- Clutch (outer)

$

$

Currently unavailable

24

Homelite 97053

SPRING- Ext.

$

$

Not available

25

Homelite A96749

SHOE- Clutch

$

$

Currently unavailable

26

Homelite 96748

SPIDER- Clutch

$

$

Not available

27

Homelite 96919

COVER- Clutch (inner)

$

$

Not available

28

Homelite 95299

WASHER- Thrust

$

$

Not available

29

Homelite A97172

SPROCKET & DRUM 6T

Note: (37/375 chain only)

$

$

Currently unavailable

Homelite A97056

SPROCKET & DRUM (325P, 8T)

$

$

Not available

Homelite 68512

BEARING- Needle
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0

Homelite A96522

SPROCKET & DRUM w/bearing
(Superseded to A96522A)

Note: (optional)

$

$

Not available

Homelite A95458

SPROCKET & DRUM 3/8", 7T

$

$

Not available

Homelite 64124

BEARING- Needle
(Superseded to UP06815)

$

$

Not available

Homelite 65746B

RACE- Inner
(Superseded to UP06818)

$13.99

$

Usually ships in 3-7 days

0

30

Homelite 81112

NUT- Lock 5/16-24

$

$

Not available

31

Homelite A97057

COVER- Drivecase

Note: Includes items 32 - 34.

$

$

Currently unavailable

32

Homelite 692541A

PIN- Guide bar adjusting

$

$

Currently unavailable

33

Homelite 93574

"E" RING
(Superseded to A00440)

$

$

Not available

34

Homelite 93575

SCREW- Guide bar adjusting
(Superseded to A00440)

$

$

Not available

35

Homelite 81258

NUT- Flange 1/4-20
(Superseded to UP06989)

$

$

Not available
