245 (UT-10635-A) - Homelite Chainsaw Intake And Oiler Parts Diagram

Chainsaw

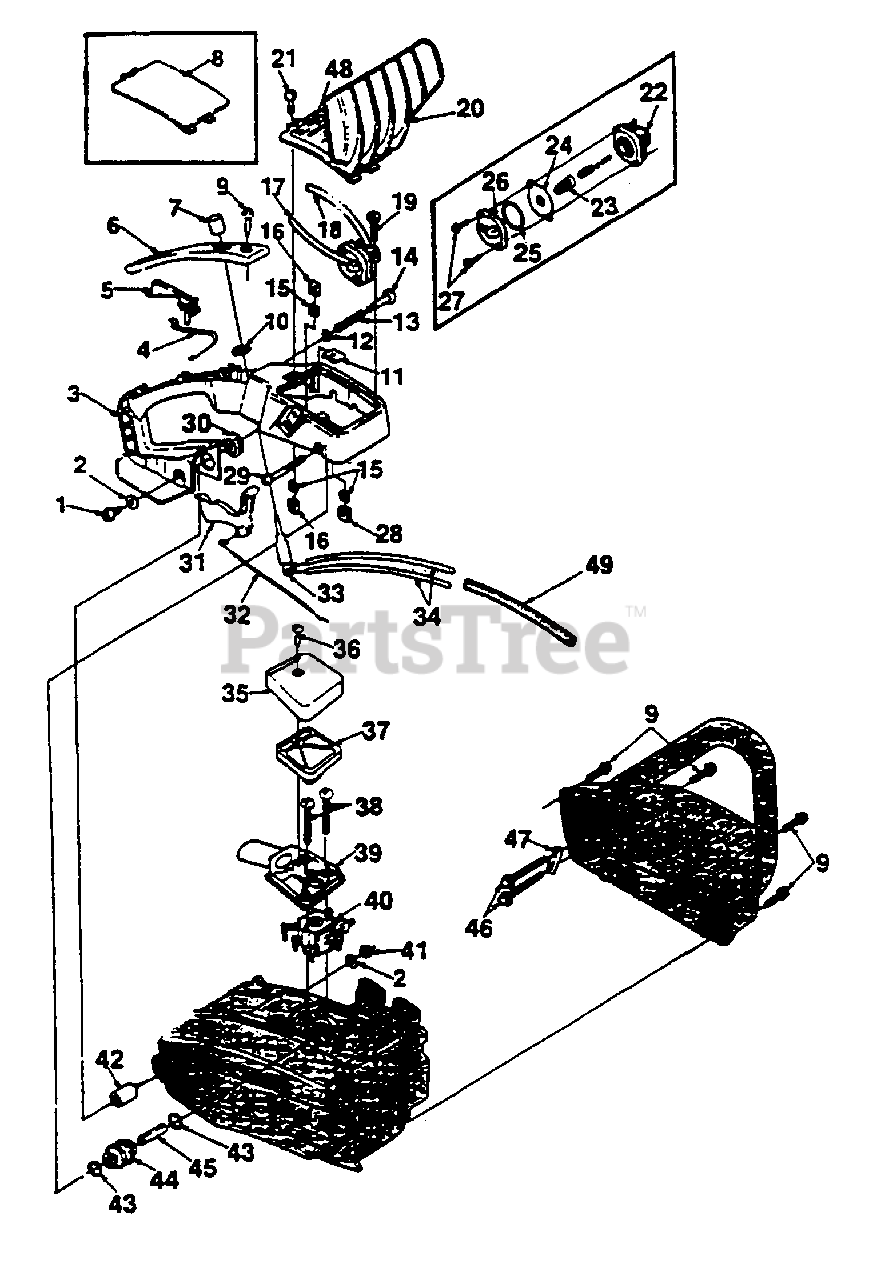

Intake And Oiler Parts Diagram

  • Title

1

Homelite 80870

SCREW- 10-32 x 3/8

$4.99

$

Usually ships in 3-7 days

0

2

Homelite 84003

WASHER- Flat #10

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 96224

CHAMBER- Carburetor

$

$

Not available

4

Homelite 97076

SPRING- Throttle lock

$

$

Not available

5

Homelite 96213

INTERLOCK- Trigger

$

$

Not available

6

Homelite 96225

COVER- Handle

$

$

Not available

7

Homelite 97072

BUTTON- Oil pump

$

$

Not available

8

Homelite A95297

COVER- Air filter

Note: (245 SL only)

$

$

Currently unavailable

Homelite 97596

SCREW- Retaining

$

$

Currently unavailable

9

Homelite 70771

SCREW- #10 x 3/4
(Superseded to UP03900)

$1.99

$

In Stock, Qty 6

0

10

Homelite 81266

NUT- Hex (15/32 x 32)

$

$

Not available

11

Homelite 96576

NUT- Speed

$

$

Not available

12

Homelite 58409

RING- Retaining

$4.49

$

Usually ships in 3-7 days

0

13

Homelite 95020

SPRING- Compression
(Superseded to UP04716)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 95671

PIN- Throttle lock
(Superseded to UP05997)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 70810

NUT- Square 10-24
(Superseded to UP06986)

$

$

Not available

16

Homelite 95337

RETAINER- Nut

$

$

Not available

17

Homelite A96778

LINE- Pulse 3 1/4"

$

$

Not available

Homelite 95216

SPRING

Note: (not shown)

$

$

Not available

18

Homelite 7031018

TUBING- (Oil outlet) 4 1/2" (Auto)
(Superseded to 0745422)

$9.49

$

In Stock, only 1 left!

0

19

Homelite 82312

SCREW- Plastic #10 x 5/8

$

$

Not available

20

Homelite A93573A

GUARD- Hand (w/cover)

Note: (245HG only)

$

$

Currently unavailable

21

Homelite 95796

SCREW- Retaining

$

$

Currently unavailable

22

Homelite A97524

BODY- Oil pump

$

$

Currently unavailable

23

Homelite 69447

SPRING- Oil pump

$

$

Not available

24

Homelite A95070

PLUNGER- Oil pump
(Superseded to A96538A)

$

$

Currently unavailable

25

Homelite 96480

"O"- RING
(Superseded to A96538A)

$

$

Not available

26

Homelite 94919

COVER- Oil pump
(Superseded to A96538A)

$

$

Not available

27

Homelite 82380

SCREW- Plastite #8-16 x 5/8

$

$

Not available

28

Homelite 95375

RETAINER- Nut

$

$

Not available

29

Homelite 96818

SCREW- Soc. hd. cap (10-24 x 1 5/8)
(Superseded to UP08156)

$

$

Not available

30

Homelite 96210

GROMMET

$

$

Not available

31

Homelite 96209

TRIGGER- Throttle

$

$

Not available

32

Homelite 97096

CABLE- Control

$33.99

$

Usually ships in 3-7 days

0

33

Homelite 97081

PUMP- Manual oil

$

$

Not available

34

Homelite 7031027

TUBING- 6 3/4"

$

$

Not available

35

Homelite 96953

COVER- Air filter

$

$

Not available

36

Homelite 95217

SCREW- Retaining

$

$

Not available

37

Homelite 96952

FILTER- Air

$

$

Not available

38

Homelite 96176

SCREW- Mach/hex 10-24 x 1 5/8

$

$

Not available

39

Homelite 96951

BASE- Air filter

$

$

Not available

40

Homelite A97167

CARBURETOR- (Zama CIS-H8)

$

$

Currently unavailable

Homelite A97168

CARBURETOR- (Walbro WT-19)

$

$

Currently unavailable

41

Homelite 81256

NUT- Lock hex (10-24)

$

$

Not available

42

Homelite 96053

ISOLATOR- Shear

$25.99

$

Usually ships in 3-7 days

0

43

Homelite 70432A

RING- Vibration isolator
(Superseded to UP05992)

$

$

Not available

44

Homelite 95868

ISOLATOR

$

$

Not available

45

Homelite 70433

SPACER

$

$

Not available

46

Homelite 82218

SCREW- hex (10-24 x 1 1/8)

$

$

Not available

47

Homelite 96901

PLATE- Handle bar

$

$

Not available

48

Homelite 97600

DECAL- Warning

$

$

Not available

49

Homelite 97679

SLEEVE

$

$

Not available
