245 SSTBC (86248) - Snapper String Trimmer Engine (Part 1) Parts Diagram

String Trimmer

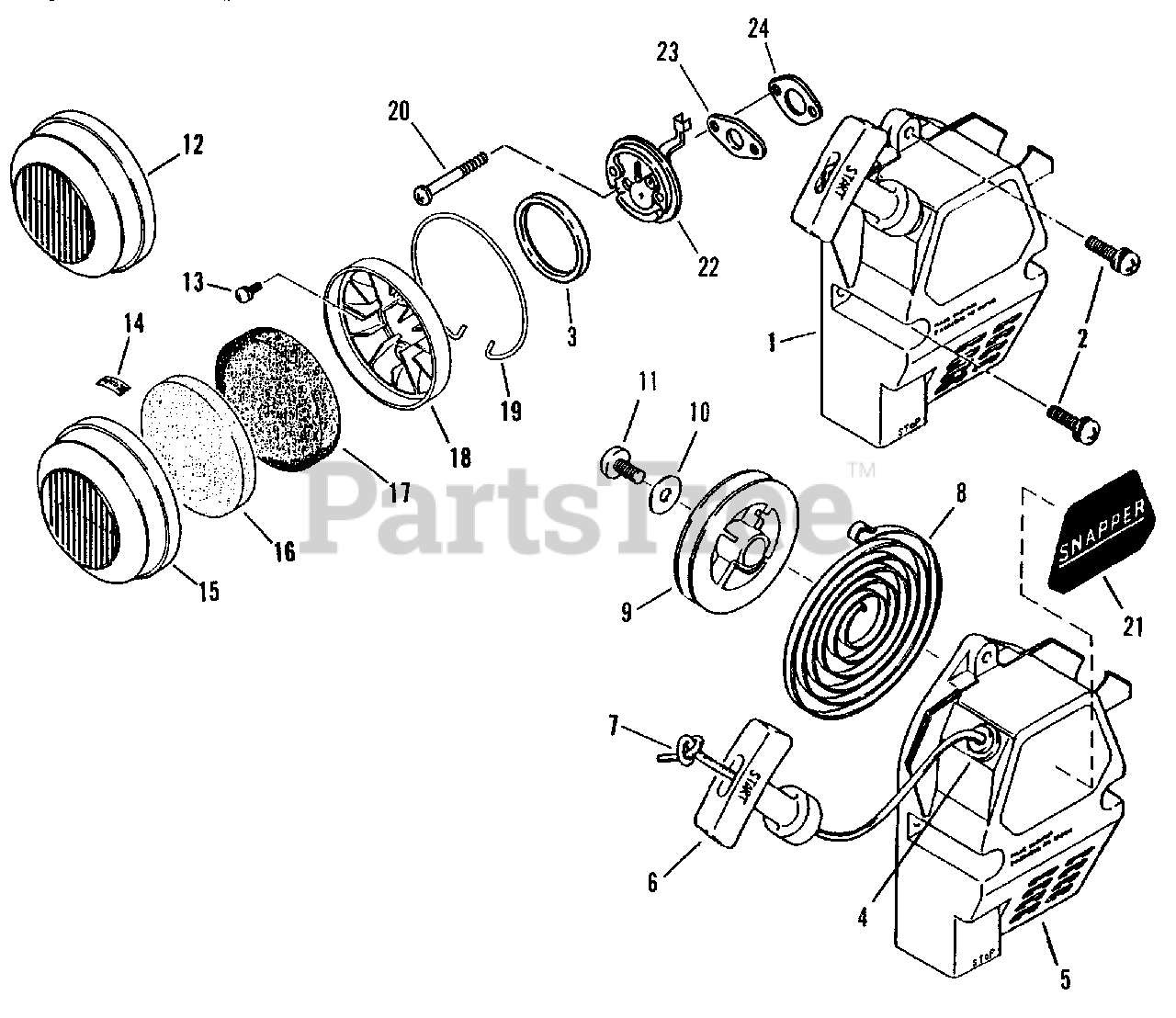

Engine (Part 1) Parts Diagram

  • Title

1

Snapper 7044477

RECOIL STARTER ASSM'Y.

Note: (Includes items 4 thru 11 & 21)

$

$

Currently unavailable

2

Snapper 7044478

SCREW/WASHER

$

$

Currently unavailable

3

Snapper 7042439

"O"-RING

$

$

Currently unavailable

4

Snapper 7044480

GUIDE

$

$

Currently unavailable

5

Snapper 7044481

HOUSING, Starter

$

$

Currently unavailable

6

Snapper 7044115

KNOB, Starter

$

$

Currently unavailable

7

Snapper 7044377

ROPE, Starter

$

$

Currently unavailable

8

Snapper 7044376

SPRING, Spiral

$

$

Not available

9

Snapper 7044375

REEL

$

$

Not available

10

Snapper 7044479

WASHER

$

$

Currently unavailable

11

Snapper 7044373

SCREW

$

$

Currently unavailable

12

Snapper 7044273

ASSEMBLY, Air Cleaner

Note: (Includes items 14 thru 20 & 3)

$

$

Currently unavailable

13

Snapper 7044274

SCREW/WASHER

$

$

Currently unavailable

14

Snapper 44275

LABEL, Choke

$

$

Currently unavailable

15

Snapper 7044276

COVER, Cleaner

$

$

Not available

16

Snapper 7044277

ELEMENT, Cleaner

$

$

Not available

17

Snapper 7044278

ELEMENT, Cleaner

$

$

Not available

18

Snapper 7044279

CASE, Cleaner

$

$

Not available

19

Snapper 44280

CLAMP

$12.99

$

Usually ships in 2-12 days

0

20

Snapper 7042440

SCREW/WASHER

$

$

Currently unavailable

21

Snapper 44294

LABEL, Snapper

$

$

Currently unavailable

22

Snapper 7042438

BRACKET, Choke

$

$

Currently unavailable

23

Snapper 7042437

GASKET

$

$

Currently unavailable

24

Snapper 7042436

PLATE

$

$

Currently unavailable
