245 R - Husqvarna String Trimmer (SN: 19984000001 - 20023100000) IGNITION SYSTEM Parts Diagram

String Trimmer

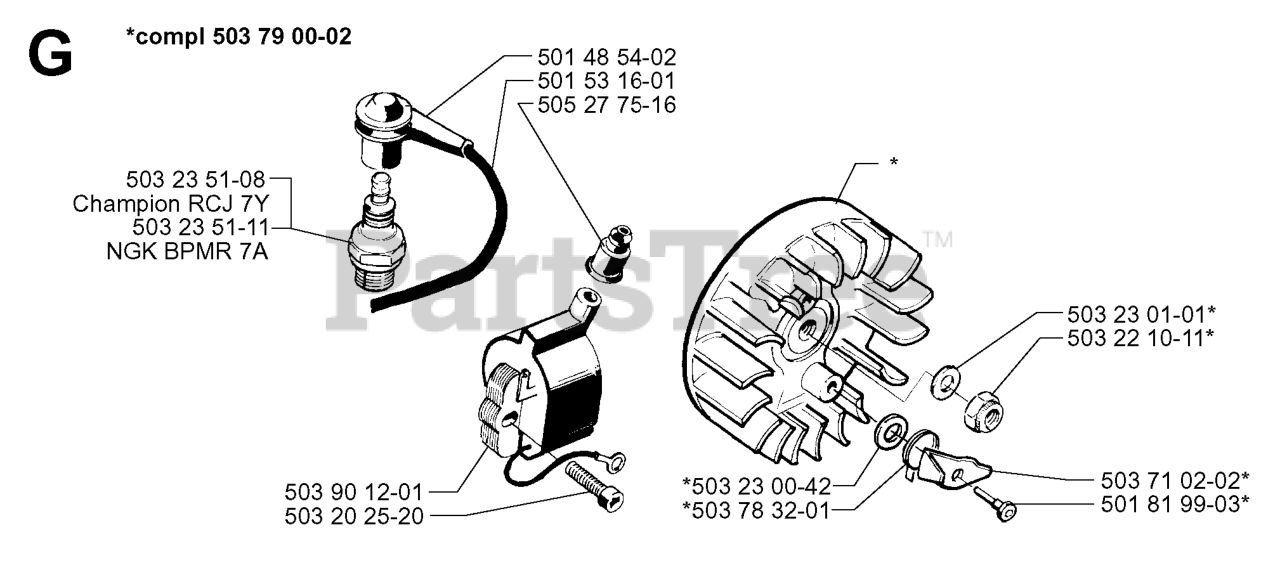

IGNITION SYSTEM Parts Diagram

  • Title

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

503 22 10-11

Husqvarna 503221011

NUT M8X1

$6.49

$

In Stock, only 1 left!

0

503 78 32-01

Husqvarna 503783201

%SPRING, STARTER CATCH
(Superseded to 529271101)

$7.49

$

In Stock, only 2 left!

0

503 23 51-11

Husqvarna 503235111

SPARK PLUG M14X1.25 NGK BPMR7A

Note: NGK BPMR 7A

$3.49

$

In Stock, Qty 20+

0

503 90 12-01

Husqvarna 503901201

IGNITION MODULE
(Superseded to 544018301)

$

$

Not available

505 27 75-16

Husqvarna 505277516

INSULATING CAP

$10.99

$

Usually ships in 3-10 days

0

503 23 01-01

Husqvarna 503230101

WASHER 8.4X16

$7.49

$

In Stock, only 1 left!

0

501 53 16-01

Husqvarna 501531601

CABLE 13 3/8"IN

$12.99

$

In Stock, only 1 left!

0

503 71 02-02

Husqvarna 503710202

PAWL
(Superseded to 503710203)

$6.99

$

In Stock, only 2 left!

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: CHAMPION RCJ 7Y

$3.49

$

In Stock, Qty 20+

0

501 81 99-03

Husqvarna 501819903

SCREW

$9.99

$

In Stock, only 3 left!

0

503 20 25-20

Husqvarna 503202520

SCREW

$6.49

$

In Stock, Qty 10

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 3 left!

0

503 79 00-02

Husqvarna 503790002

FLYWHEEL

$

$

Not available
