245 R - Husqvarna String Trimmer (SN: 19900100001 - 19941400000) IGNITION SYSTEM Parts Diagram

String Trimmer

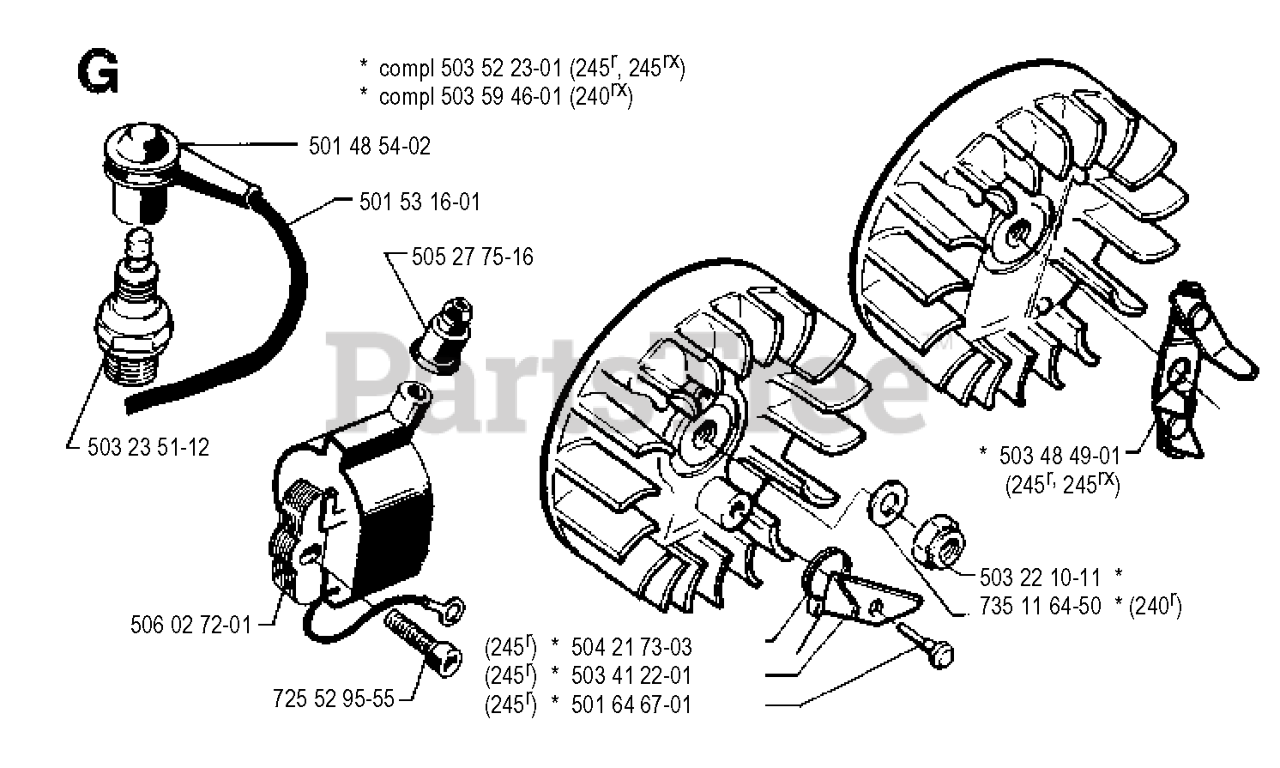

IGNITION SYSTEM Parts Diagram

  • Title

503 48 49-01

Husqvarna 503484901

STARTER PAWL
(Superseded to 503555401)

Note: 245R, 245RX

$

$

Not available

503 52 23-01

Husqvarna 503522301

FLYWHEEL
(Superseded to 503790002)

Note: 245R, 245RX

$

$

Not available

506 02 72-01

Husqvarna 506027201

IGNITION MODULE
(Superseded to 506027207)

$

$

Not available

501 64 67-01

Husqvarna 501646701

PIN

Note: 245R

$

$

Not available

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 3 left!

0

504 21 73-03

Husqvarna 504217303

SPRING

Note: 245R

$7.49

$

In Stock, only 3 left!

0

503 59 46-01

Husqvarna 503594601

FLYWHEEL
(Superseded to 503790002)

Note: 240RX

$

$

Not available

501 53 16-01

Husqvarna 501531601

CABLE 13 3/8"IN

$12.99

$

In Stock, only 1 left!

0

505 27 75-16

Husqvarna 505277516

INSULATING CAP

$10.99

$

Usually ships in 3-10 days

0

735 11 64-50

Husqvarna 735116450

Washer, Flat 11/32" x 11/16"

Note: 240R

$2.49

$

In Stock, only 1 left!

0

503 41 22-01

Husqvarna 503412201

PAWL

Note: 245R

$

$

Not available

503 23 51-12

Husqvarna 503235112

BPMR6A NGK SPARK PLUG

$3.49

$

In Stock, Qty 17

0

503 22 10-11

Husqvarna 503221011

NUT M8X1

$6.49

$

In Stock, only 1 left!

0

725 52 95-55

Husqvarna 725529555

SCREW MC6S 4X20
(Superseded to 725529556)

$3.49

$

In Stock, only 2 left!

0
