245-642-190 - White Outdoor Log Splitter, 5 HP (1985) Log Splitters Parts Diagram

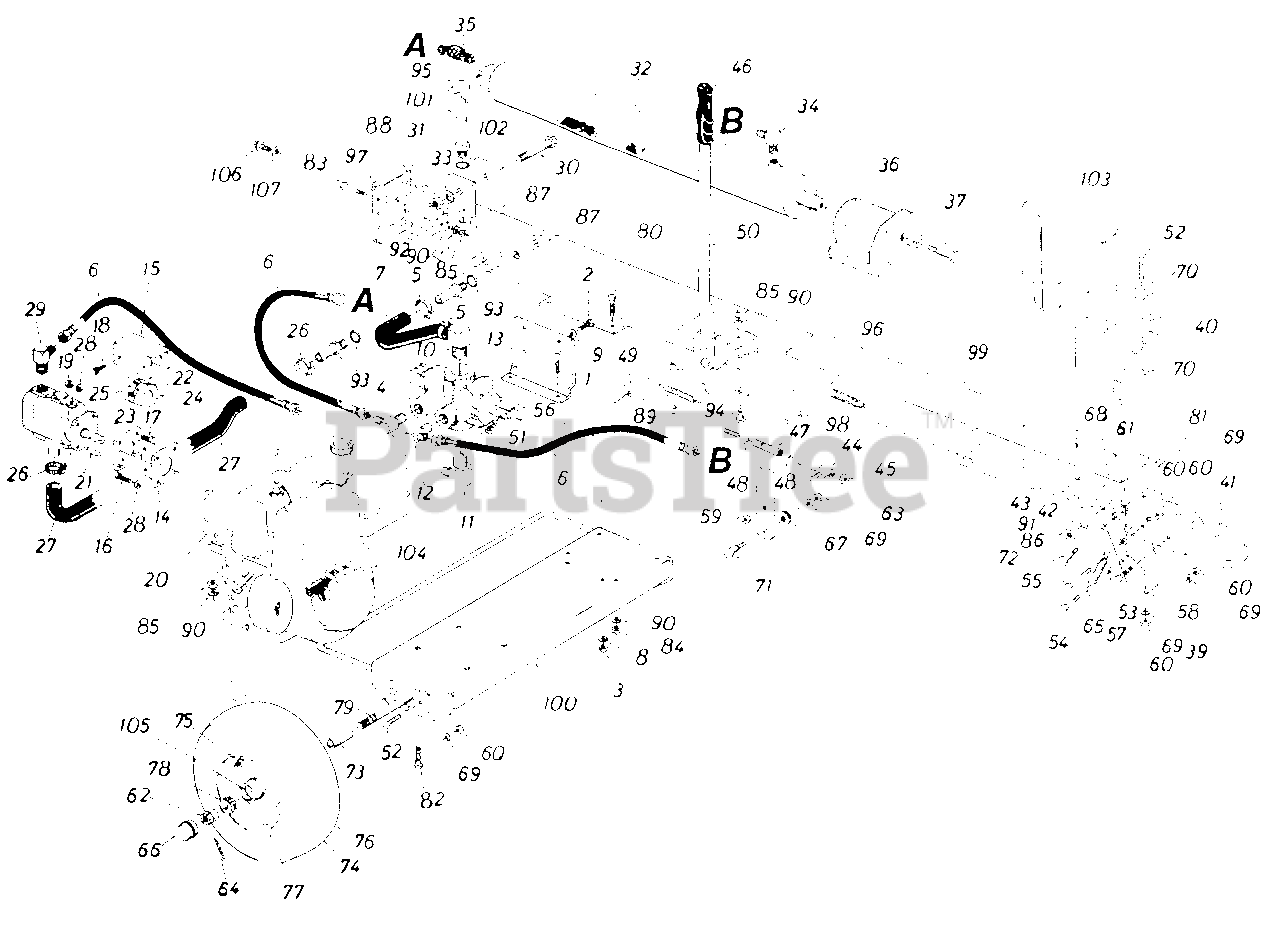

Log Splitter, 5 HP

Log Splitters Parts Diagram

  • Title

1

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0168

Hex Bolt 3/8-16 x .60" Lg.*

$3.99

$

Usually ships in 3-6 days

0

3

MTD 912-0267

Hex Nut5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

MTD 717-0407

Control Valve 400

Note: NLA

$

$

Currently unavailable

5

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

6

MTD 727-0297

High Pressure Hose Ass'y .38" I.D

Note: NLA

$

$

Currently unavailable

7

MTD 727-0299

R etu rn H ose-Valve to Tank 3/4" I.D.

Note: NLA

$

$

Currently unavailable

8

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

9

MTD 936-0169

L.-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

10

MTD 737-0153

Return Elbow

$57.99

$

Usually ships in 3-6 days

0

11

MTD 737-0171

90ø Solid Male Adapter

Note: NLA

$

$

Not available

12

MTD 737-0192

90ø Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

13

MTD 781-0035

Valve Mtg. Plate

Note: NLA

$

$

Currently unavailable

14

MTD 13295

Coupling Support Brkt Ass'y.

Note: NLA

$

$

Currently unavailable

15

MTD 14806

Coupling Shield

Note: NLA

$

$

Currently unavailable

16

MTD 710-0888

Hex Bolt 5/16-24 x 1.00"*

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.*

$4.49

$

In Stock, Qty 18

0

18

MTD 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg.

$4.49

$

In Stock, Qty 8

0

19

MTD 912-3057

Hex Nut 5/16-24 Thd.*

$6.99

$

In Stock, only 3 left!

0

20

MTD 714-0172

Sq. Key 1/4" x 1/4" x 2.25" Lg.

Note: NLA

$

$

Currently unavailable

21

MTD 717-0460

Pump with Woodruff Key - (642)

Note: NLA

$

$

Currently unavailable

21

MTD 717-0461

Pump with Woodruff Key - (645)

Note: NLA

$

$

Currently unavailable

22

MTD 735-0205

Spider L-0-90

Note: NLA

$

$

Not available

23

MTD 710-0419

SetScr. 1/4-20 x .25" Cup

Note: NLA

$

$

Currently unavailable

24

MTD 717-0479

Coupling Half 1.00" I.D.

Note: NLA

$

$

Not available

25

MTD 717-0498

Coupling Half .50" I.D.

Note: NLA

$

$

Currently unavailable

26

MTD 726-0132

Hose Clamp 5/8"

$15.99

$

Usually ships in 3-6 days

0

27

MTD 727-0298

Suction Hose 1.0" Dia

Note: NLA

$

$

Currently unavailable

28

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

29

MTD 737-0192

90ø Solid Male Adapter

$41.99

$

Usually ships in 3-6 days

0

30

MTD 710-0920

Hex Bolt 3/4" x 4.0" Lg.

Note: NLA

$

$

Currently unavailable

31

MTD 712-0301

Hex Nut 3/4" Thd.*

$7.99

$

In Stock, only 1 left!

0

32

MTD 717-0818

Hydraulic Cylinder 3-1/2" Dia. (642)

Note: NLA

$

$

Currently unavailable

32

MTD 717-0817

Hydraulic Cylinder 4" Dia. (645)

Note: NLA

$

$

Currently unavailable

33

MTD 936-0364

L.-Wash.3/4" I.D.*

$

$

Not available

34

MTD 737-0220

90ø Male Adapter 3/4-16 MJ 3/8-16 NPT

Note: NLA

$

$

Not available

35

MTD 737-0194

45ø Male Adapter 3/4-16 MJ 3/8-18 NP

Note: NLA

$

$

Not available

36

MTD 719-0269

Pusher Plate (642)

Note: NLA

$

$

Not available

36

MTD 719-0268

Pusher Plate (645)

Note: NLA

$

$

Currently unavailable

37

MTD 738-0601

Shoulder Bolt .62" Dia. x 4.75" Lg. (1/2-13 Thd.)

Note: NLA

$

$

Not available

39

MTD 15850

Flip Stand Bracket

Note: NLA

$

$

Currently unavailable

40

MTD 713-0338

Chain-Tow Hitch

Note: NLA

$

$

Currently unavailable

41

MTD 727-0289

Tow Hitch Ass'y. Comp

Note: NLA

$

$

Not available

42

MTD 781-0020

Stand Pivot Bracket

Note: NLA

$

$

Currently unavailable

43

MTD 781-0037

Tow Hitch Brk't. 2 x 3/16 x 10.25" Lg. I N

Note: NLA

$

$

Currently unavailable

44

MTD 13115

Ferrule Ass'y.

Note: NLA

$

$

Not available

45

MTD 912-0214

Hex Cent. L.-Nut 3/8-24 Thd.
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

46

MTD 920-0233

Grip-Black Vinyl

$

$

Not available

47

MTD 732-0324

Compression Spring

$12.99

$

Usually ships in 3-6 days

0

48

MTD 936-0206

Special Washer .378 x 1.00" x .125 Thd.*
(Superseded to 736-0258)

$4.49

$

In Stock, only 2 left!

0

49

MTD 747-0484

Engagement Rod 3/8" Dia. x 9.0" Lg.

Note: NLA

$

$

Not available

50

MTD 749-0622

Engagement Handle

Note: NLA

$

$

Not available

51

MTD 710-0106

Hex Bolt 1/4-20 x 1.75" Lg.*

$3.99

$

In Stock, Qty 12

0

52

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.*

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0180

HexBolt3/8-24x.75" Lg.*

$6.99

$

In Stock, only 3 left!

0

54

MTD 710-0299

Hex Bolt 1/4-28 x 1.00" Lg.*

$4.49

$

Usually ships in 3-6 days

0

55

MTD 710-0539

Hex Bolt 3/8-24 x 1.75" Lg. (Grade 5)

$4.99

$

In Stock, Qty 12

0

56

MTD 912-0107

Hex Patch L.-Nut 1/4-20 Thd .

$4.99

$

In Stock, only 1 left!

0

57

MTD 912-0117

Hex Cent. L.-Nut 1/4-28 Thd.

$2.49

$

In Stock, only 2 left!

0

58

MTD 912-0138

Hex Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

59

MTD 912-0158

Hex Cent L.-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

60

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

61

MTD 912-0267

Hex Nut 5/16-19 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 712-0299

Hex Castle Nut 3/4-16 Thd.

Note: NLA

$

$

Currently unavailable

63

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

64

MTD 714-0162

Cotter Pin 5/32" Dia. x 1.25" Lg.*

$4.99

$

In Stock, Qty 20+

0

65

MTD 932-0429A

Extension Spring .50" O.D. x 3.97." Lg.

$8.99

$

In Stock, Qty 20+

0

66

MTD 734-0873

Hub Cap

$11.99

$

In Stock, only 2 left!

0

67

MTD 735-0144

Rubber Washer

Note: NLA

$

$

Not available

68

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

69

MTD 936-0169

L.-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

70

MTD 736-0262

Fl.-Wash. .375" I.D. x .870" O.D. x .090

$3.99

$

In Stock, Qty 20+

0

71

MTD 738-0143

ShouIder Bolt .498" Dia. x x.340" Lg.

$4.49

$

In Stock, Qty 20+

0

72

MTD 938-0296

Shoulder Bolt .437" Dia. x .268" Lg.
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

73

MTD 750-0442

Spacer .75" I.D. x 1.12" O.D. x 1.56" Lg.

Note: NLA

$

$

Not available

74

MTD 634-0186

Wheel Ass'y. Comp. 16.0 x 4.0"

$363.99

$

Usually ships in 3-6 days

0

75

MTD 934-0255

Air Valve-Tubeless

$4.49

$

In Stock, Qty 20+

0

76

MTD 734-0872

Tire Only 16.0 x 4.0-2 Ply

$169.99

$

Usually ships in 3-6 days

0

77

MTD 634-0188

Wheel Rim Ass'y Only

$175.99

$

Usually ships in 3-6 days

0

78

MTD 941-0107

Roller Rearing 3/4" I.D

$47.99

$

In Stock, Qty 17

0

79

MTD 781-0018

Axle Ass'y. .75" Dia. x 35.25" Lg.

Note: NLA

$

$

Not available

80

MTD 710-0888

Hex Bolt 5/1 6-24 x 1 .00 0 Lg.*

$4.49

$

In Stock, Qty 20+

0

81

MTD 710-0298

Hex Bolt 5/8-18 x 3.50" La.*

$9.99

$

In Stock, only 2 left!

0

82

MTD 710-0409

Hex Bolt 5/16-24 x 1.75 0 Lg.*

$4.99

$

Usually ships in 3-6 days

0

83

MTD 710-0805

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

84

MTD 912-3057

Hex Nut 5/16-24 Thd.*

$6.99

$

In Stock, only 3 left!

0

85

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

86

MTD 712-0337

Hex Nut 5/8-18 Thd.*

$4.49

$

In Stock, only 4 left!

0

87

MTD 712-0338

Hex Nut 11/16-12Thd

Note: NLA

$

$

Not available

88

MTD 721-0203A

Gasket 2.62 x 5.12

$

$

Not available

89

MTD 732-0352

Extension Spring .50" O.D. x 4. 25" Lg.

Note: NLA

$

$

Not available

90

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

91

MTD 936-0158

L.-Wash 5/8" I.D.*

$4.49

$

In Stock, Qty 11

0

92

MTD 936-0275

Fl Wash. 341' I.D. x .68" 0. D . x .062 Thk.
(Superseded to 736-0275)

$

$

Not available

93

MTD 737-0191

Adapter 1.0" Tube 11/16-12 O Ring

Note: NLA

$

$

Not available

94

MTD 938-0140

Shoulder Bolt .437" Dia. x .180" Lg.
(Superseded to 738-0140)

$

$

Not available

95

MTD 745-0174

Oil Fill Cap

Note: NLA

$

$

Not available

96

MTD 781-0021

Strainer Tube Ass'y

Note: NLA

$

$

Not available

97

MTD 781-0023

End Plate

Note: NLA

$

$

Not available

98

MTD 781-0024

Engagement Brk't. 1.39 x 1 1.75" Lg.

Note: NLA

$

$

Currently unavailable

99

MTD 781-0025

Complete Oil Tank Ass'y.

Note: NLA

$

$

Currently unavailable

100

MTD 781-0033

Engine Frame Ass'y.

Note: NLA

$

$

Currently unavailable

101

MTD 781-0036

Filler Tube Ass'y

Note: NLA

$

$

Currently unavailable

102

MTD 721-0204

O-Ring 92" I.D. x 1.16" O.D. x .116 Dia

Note: NLA

$

$

Not available

103

MTD 781-0038

Wedge Ass'y

Note: NLA

$

$

Not available

104

5 H.P. Engine

Note: (642)

$

$

Not available

104

8 H.P. Engine

Note: (645)

$

$

Not available

105

MTD 921-0168

Bearing Seal

$9.49

$

In Stock, Qty 17

0

106

MTD 710-0604A

Hex H d. Tap Scr. 5/16 "

$4.49

$

In Stock, Qty 20+

0

107

MTD 721-0205

Gasket

Note: NLA

$

$

Not available
