245-315B000 - MTD Shredder Vacuum (1995) Wheel Pivot Bracket Assembly Parts Diagram

Shredder Vacuum

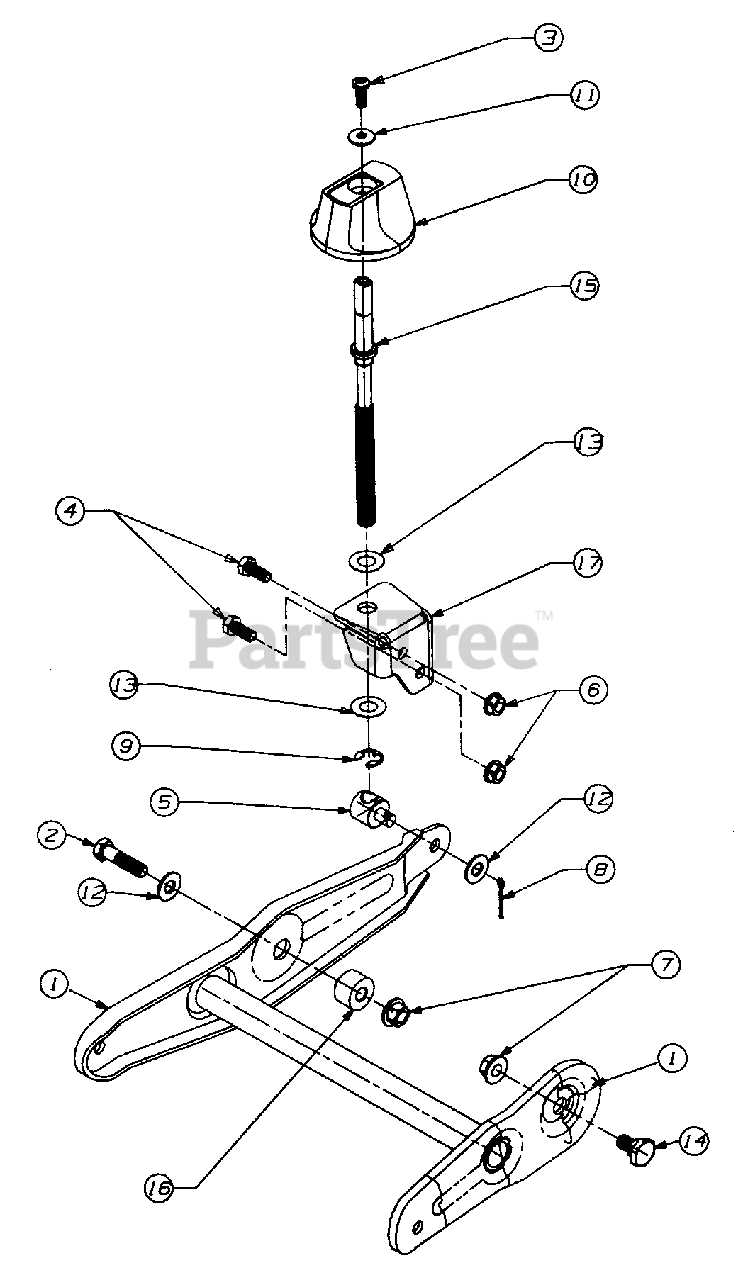

Wheel Pivot Bracket Assembly Parts Diagram

  • Title

1

MTD 681-0070

BRKT ASSY - WHEEL PIVOT

Variations

MTD 681-0070-0483

No Longer Available BRKT ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 681-0070-0498

No Longer Available BRKT ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 681-0070-0637

No Longer Available BRKT ASM- - POWDER BLACK (0637)

$

$

Not available

MTD 681-0070-0638

No Longer Available BRKT ASM- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0070-0662

No Longer Available BRKT ASM- - OYSTER GRAY (0662)

$

$

Not available

$

$

2

MTD 710-0520

SCREW - HEX

$4.49

$

In Stock, Qty 6

0

3

MTD 710-0924

SCREW - MACHINE PAN HD

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3008

SCREW - HEX

$4.49

$

In Stock, Qty 20+

0

5

MTD 711-1041

FERRULE - ADJUSTABLE

$

$

Not available

6

MTD 712-3004A

NUT - HEX FLANGE

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-3005

NUT - HEX FLANGE LOCK

$6.99

$

Usually ships in 3-6 days

0

8

MTD 714-0115

PIN - COTTER

$3.99

$

In Stock, only 2 left!

0

9

MTD 716-0104

RING - E
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

10

MTD 720-0236

KNOB - PLASTIC
(Superseded to 920-0236)

$18.99

$

Usually ships in 3-6 days

0

11

MTD 736-0270

WASHER - BELL

$3.99

$

In Stock, Qty 20+

0

12

MTD 736-0300

WASHER - FLAT

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0369

WASHER - FLAT

$4.49

$

In Stock, Qty 20+

0

14

MTD 738-0258

SCREW - SHOULDER
(Superseded to 938-0258)

$

$

Not available

15

MTD 747-0631

ROD - ADJUSTABLE

$

$

Not available

16

MTD 750-0985

SPACER

$

$

Not available

17

MTD 781-0605

BRACKET - HEIGHT ADJ

Variations

MTD 781-0605-0637

No Longer Available BRACKET-HG - POWDER BLACK (0637)

$

$

Not available

MTD 781-0605-0662

Bracket, Height Adj - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 788-0637

COLOR CODE - BLACK

$

$

Currently unavailable

MTD 788-0662

COLOR CODE - OYSTER GRAY

$

$

Currently unavailable
