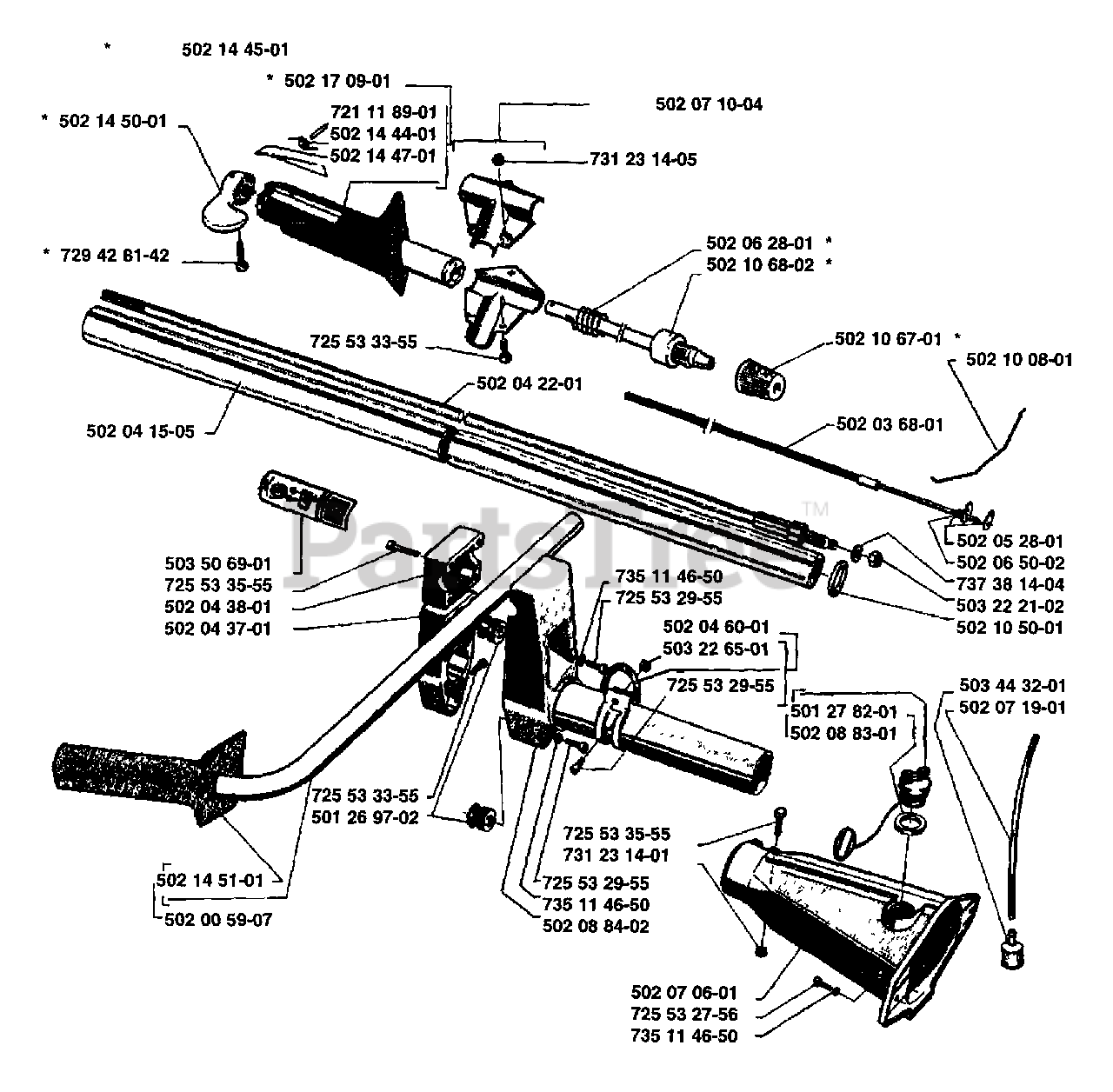

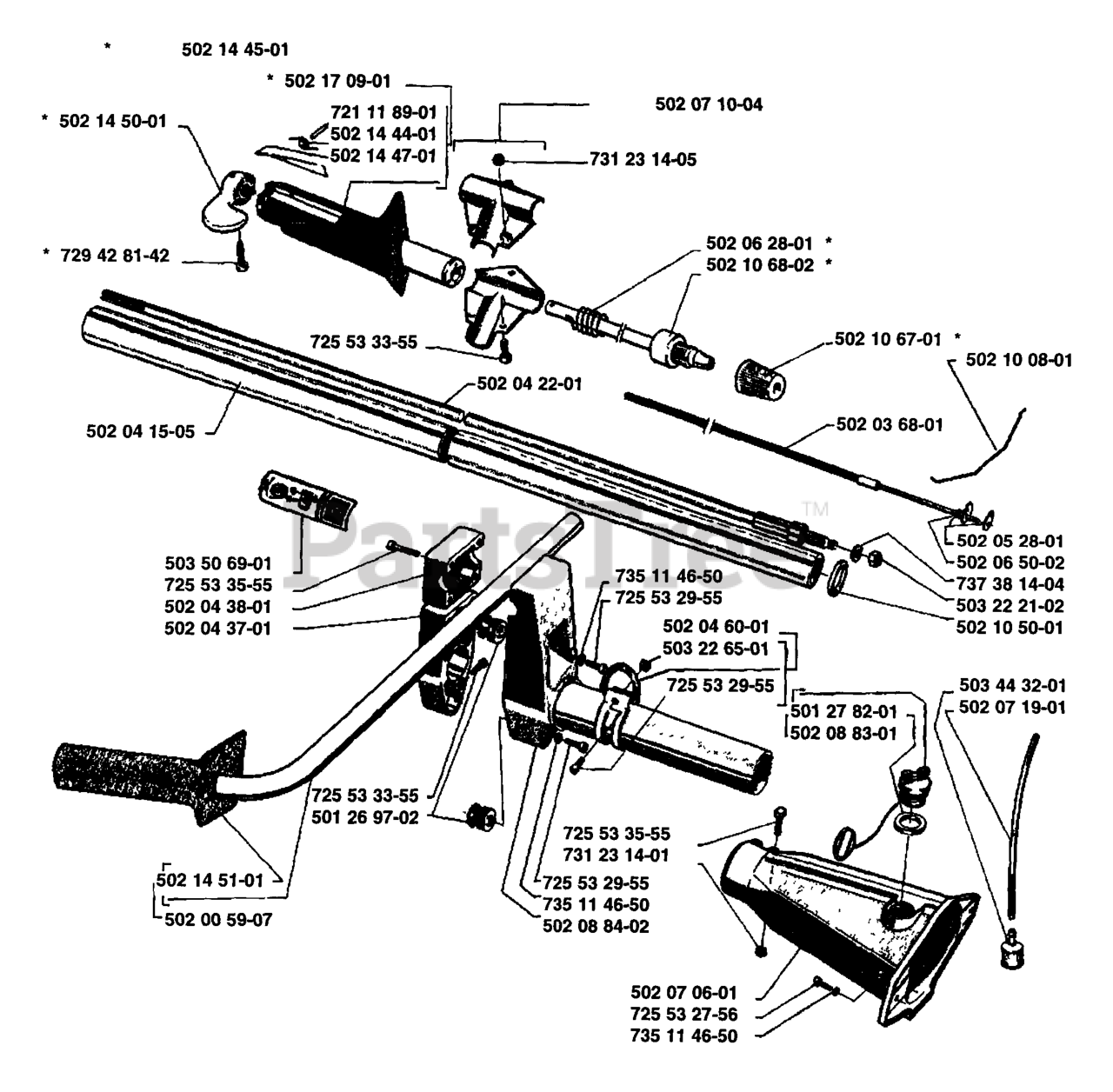

244 RX - Husqvarna String Trimmer (1989-02) Handle Assembly Parts Diagram

String Trimmer

Handle Assembly Parts Diagram

  • Title
502144501

Husqvarna 502144501

HANDLE RIGHT
(Superseded to 502144504)

$122.97

$

Usually ships in 3-10 days

0

502145001

$

$

Not available

502170901

Husqvarna 502170901

HANDLE RIGHT
(Superseded to 502170904)

$

$

Not available

721118901

Husqvarna 721118901

PIN
(Superseded to 720121220)

$

$

Not available

502144401

$4.99

$

In Stock, only 1 left!

0

$

$

Currently unavailable

731231405

Husqvarna 731231405

NUT M6M M5

$3.49

$

Usually ships in 3-10 days

0

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

502042201

Husqvarna 502042201

SHAFT
(Superseded to 502277501)

$

$

Not available

502041505

$

$

Not available

503506901

Husqvarna 503506901

DECAL
(Superseded to 503901301)

$

$

Not available

725533555

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

502043801

$30.18

$

Usually ships in 3-10 days

0

502043701

Husqvarna 502043701

BRACKET
(Superseded to 502262101)

$

$

Not available

501269702

Husqvarna 501269702

ANTIVIBE ELEMENT

$17.99

$

Usually ships in 3-10 days

0

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

502145101

Husqvarna 502145101

HANDLE
(Superseded to 502145103)

$17.99

$

Usually ships in 3-10 days

0

502005907

Husqvarna 502005907

HANDLE-LEFT
(Superseded to 502175005)

$56.99

$

Usually ships in 3-10 days

0

725533555

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

731231401

$2.49

$

In Stock, only 1 left!

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

502088402

Husqvarna 502088402

SUPPORTING TUBE

$

$

Not available

502070601

Husqvarna 502070601

TANK UNIT
(Superseded to 502070604)

$

$

Not available

725532756

Husqvarna 725532756

SCREW MC6S 5X12
(Superseded to 725532755)

$6.49

$

In Stock, only 3 left!

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

502046001

Husqvarna 502046001

MOUNTING LUG
(Superseded to 502267101)

$

$

Not available

$

$

Currently unavailable

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

501278201

$7.49

$

Usually ships in 3-10 days

0

502088301

Husqvarna 502088301

TANK CAP
(Superseded to 503828006)

$14.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

502071901

$

$

Not available

502062801

$6.49

$

In Stock, only 1 left!

0

502106802

Husqvarna 502106802

SHAFT
(Superseded to 502106803)

$51.92

$

Usually ships in 3-10 days

0

502106701

$

$

Not available

502100801

$

$

Not available

502036801

Husqvarna 502036801

FLEXIBLE SHAFT

$

$

Not available

729428142

$

$

Not available
