244 RX - Husqvarna String Trimmer (1985-10) Handle Assembly Parts Diagram

String Trimmer

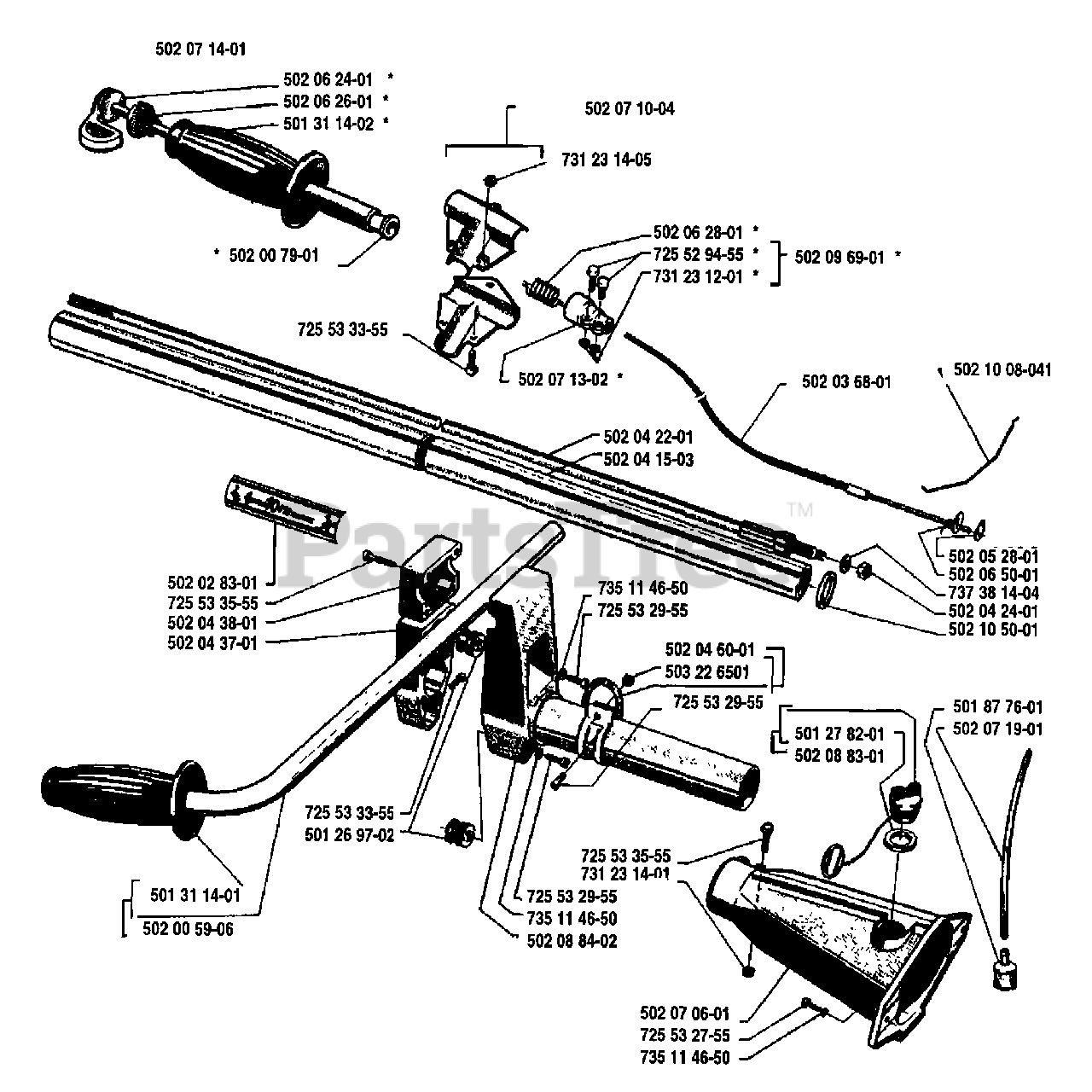

Handle Assembly Parts Diagram

  • Title
502071401

Husqvarna 502071401

HANDLE ASSY RH NLA

$

$

Not available

502062401

Husqvarna 502062401

TRIGGER W/ SHAFT

$

$

Not available

502062601

$

$

Not available

501311402

$

$

Not available

502007901

Husqvarna 502007901

BUSHING
(Superseded to 502007902)

$

$

Not available

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

502071004

Husqvarna 502071004

HOLDER RIGHT
(Superseded to 502071005)

$

$

Not available

731231405

Husqvarna 731231405

NUT M6M M5

$3.49

$

In Stock, only 3 left!

0

$

$

Currently unavailable

502062801

$6.49

$

In Stock, only 1 left!

0

725529455

Husqvarna 725529455

SCREW MC6S 4X18

$

$

Not available

731231201

Husqvarna 731231201

NUT M6M M4

$2.99

$

Usually ships in 3-10 days

0

502096901

Husqvarna 502096901

SLEEVE, SPRING NLA

$

$

Not available

502036801

Husqvarna 502036801

FLEXIBLE SHAFT

$

$

Not available

502042201

Husqvarna 502042201

SHAFT
(Superseded to 502277501)

$

$

Not available

502041503

Husqvarna 502041503

USE 502 041505 TUBE

$

$

Not available

$

$

Currently unavailable

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

502046001

Husqvarna 502046001

MOUNTING LUG
(Superseded to 502267101)

$

$

Not available

503226501

Husqvarna 503226501

SQUARE NUT M5
(Superseded to 503226504)

$6.49

$

In Stock, Qty 13

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

501278201

$7.49

$

Usually ships in 3-10 days

0

502088301

Husqvarna 502088301

TANK CAP
(Superseded to 503828006)

$14.99

$

Usually ships in 3-10 days

0

501877601

Husqvarna 501877601

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

502071901

$

$

Not available

502052801

Husqvarna 502052801

THROTTLE ROD & LEVER ARM 140R
(Superseded to 502152801)

$

$

Not available

$

$

Currently unavailable

737381404

Husqvarna 737381404

DISC SPRING

$

$

Not available

502042401

Husqvarna 502042401

LOCK NUT M8 NLA

$

$

Not available

502105001

$

$

Not available

725533555

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

731231401

$2.49

$

In Stock, only 1 left!

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

$

$

Currently unavailable

502070601

Husqvarna 502070601

TANK UNIT
(Superseded to 502070604)

$

$

Not available

725532755

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, only 3 left!

0

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

725533555

Husqvarna 725533555

SCREW MC6S 5X30

$3.49

$

In Stock, only 1 left!

0

502043801

$30.18

$

Usually ships in 3-10 days

0

502043701

Husqvarna 502043701

BRACKET
(Superseded to 502262101)

$

$

Not available

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

$

$

Currently unavailable

501311401

Husqvarna 501311401

NO LONGER AVAILABLE NLA

$

$

Not available

502005906

$

$

Not available

502088402

Husqvarna 502088402

SUPPORTING TUBE

$

$

Not available
