244 R - Husqvarna String Trimmer (1982-02) Starter Assembly Parts Diagram

String Trimmer

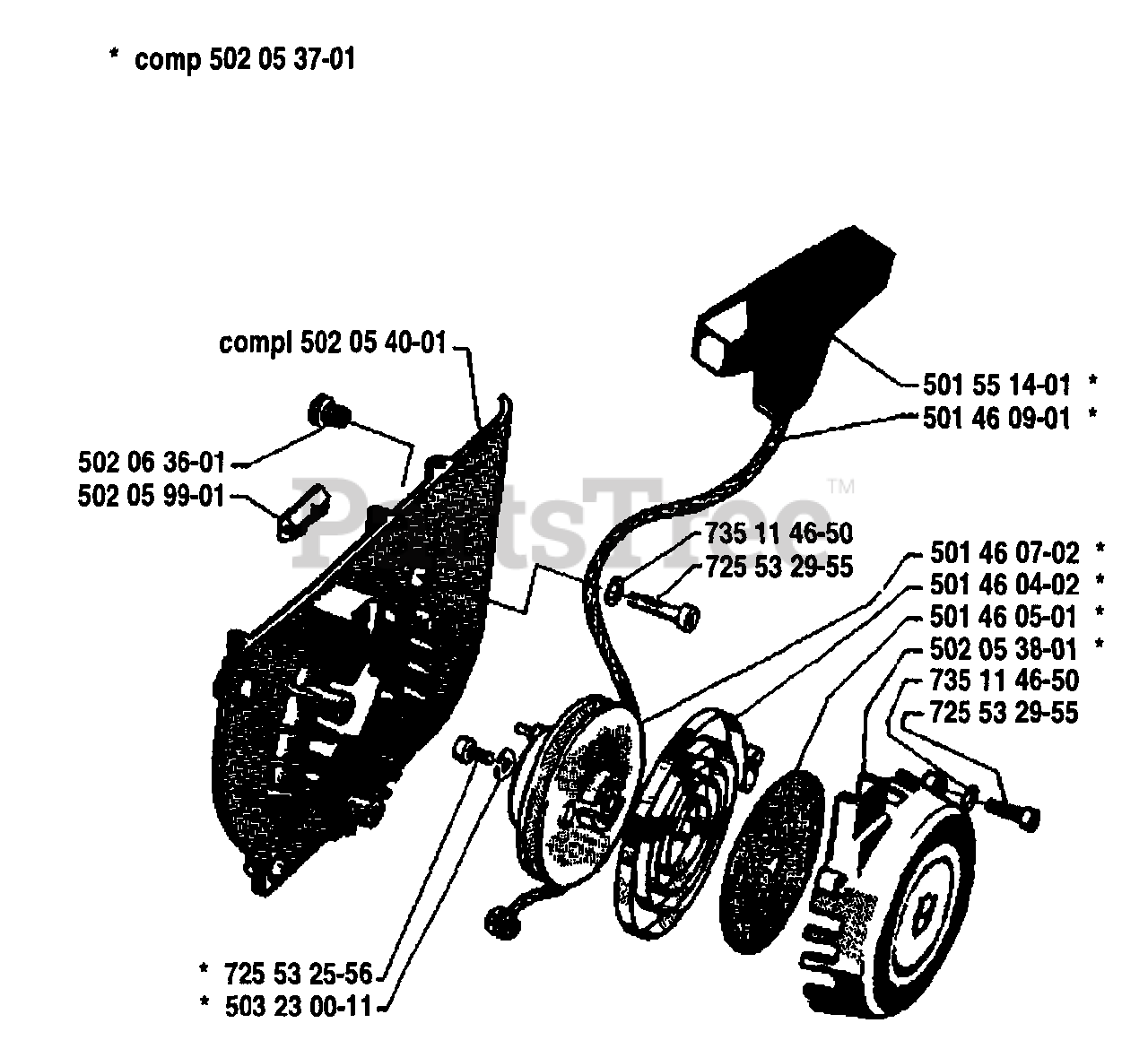

Starter Assembly Parts Diagram

  • Title

$

$

Currently unavailable

502054001

$

$

Not available

502063601

Husqvarna 502063601

USE 502 055401 BUSHING

$

$

Not available

502059901

$

$

Not available

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

725532556

Husqvarna 725532556

RP SCREW MC6S 5X10
(Superseded to 725532555)

$4.99

$

In Stock, only 4 left!

0

503230011

Husqvarna 503230011

WASHER 5.3X12

$6.49

$

In Stock, only 2 left!

0

501551401

Husqvarna 501551401

STARTING HANDLE
(Superseded to 503543901)

$11.99

$

In Stock, only 3 left!

0

$

$

Currently unavailable

501460702

Husqvarna 501460702

STARTER PULLEY
(Superseded to 502280701)

$

$

Not available

501460402

Husqvarna 501460402

RECOIL SPRING
(Superseded to 501630201)

$31.99

$

In Stock, only 1 left!

0

501460501

Husqvarna 501460501

DISC INNER

$

$

Not available

502053801

Husqvarna 502053801

HOUSING NLA

$

$

Not available

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0
