244 R - Husqvarna String Trimmer (1982-02) Piston/Cylinder Parts Diagram

String Trimmer

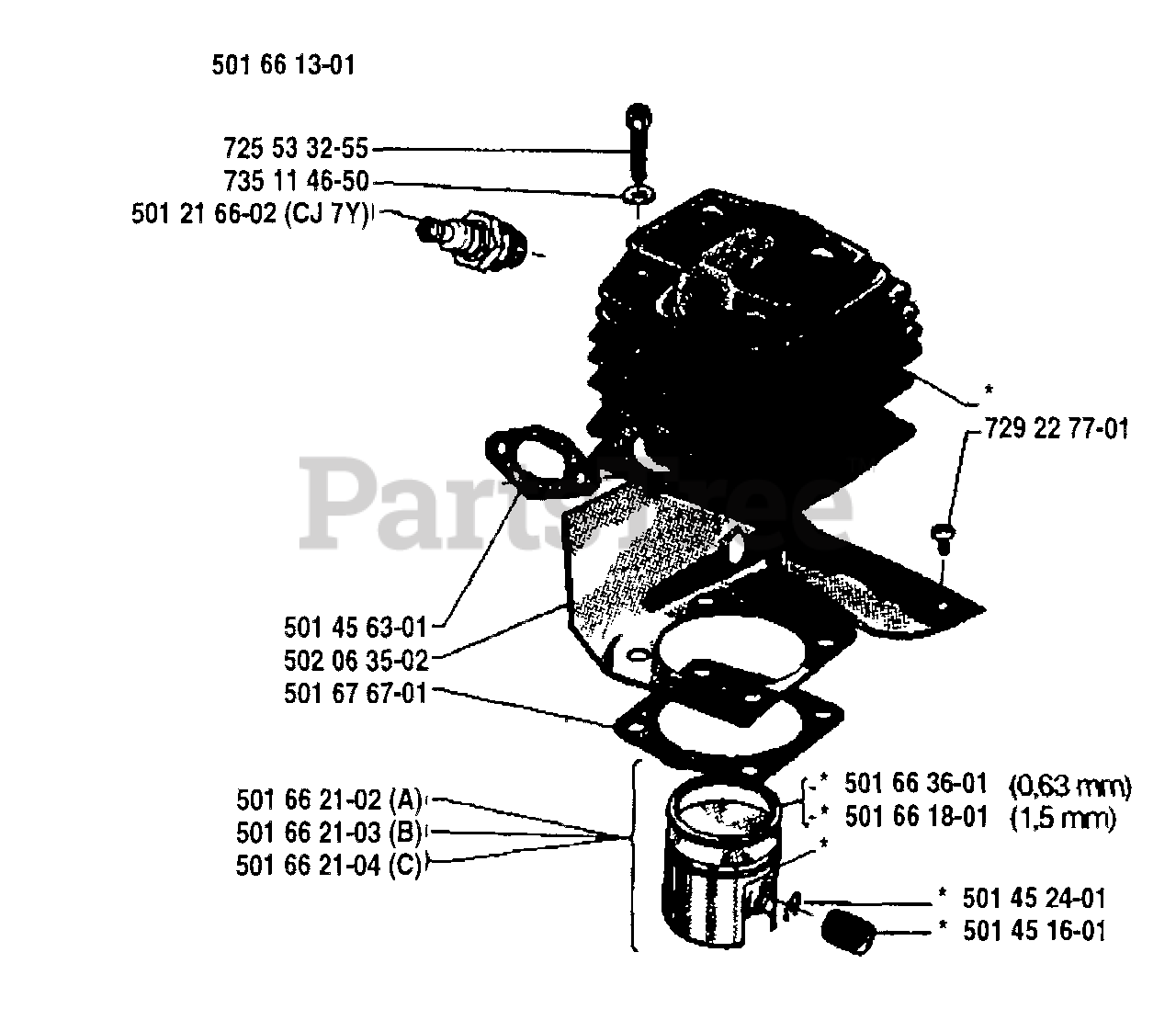

Piston/Cylinder Parts Diagram

  • Title

$

$

Currently unavailable

725533255

Husqvarna 725533255

SCREW MC6S 5X22

$

$

Not available

735114650

Husqvarna 735114650

SPRING WASHER 5.3X10

$2.49

$

In Stock, only 1 left!

0

501216602

Husqvarna 501216602

REPL BY 503 23 50-11
(Superseded to 503235111)

$3.99

$

In Stock, Qty 20+

0

501456301

Husqvarna 501456301

GASKET
(Superseded to 501456302)

$

$

Not available

502063501

Husqvarna 502063501

BAFFLE, CYLINDER, 140R

$

$

Not available

501676701

Husqvarna 501676701

CYL. GSKT
(Superseded to 501676703)

$

$

Not available

501662101

Husqvarna 501662101

USE 501 661503 PISTON B

$

$

Not available

501662103

Husqvarna 501662103

USE 501 661503 PISTON

$

$

Not available

501663601

Husqvarna 501663601

PISTON RING STEEL
(Superseded to 503289005)

$31.99

$

In Stock, only 3 left!

0

501661801

Husqvarna 501661801

PISTON RING
(Superseded to 503289005)

$31.99

$

In Stock, only 3 left!

0

501662104

Husqvarna 501662104

USE 501 661503 PISTON C

$

$

Not available

501452401

Husqvarna 501452401

LOCKING RING
(Superseded to 737441000)

$6.49

$

In Stock, only 1 left!

0

$

$

Not available

729227701

Husqvarna 729227701

SCREW CSK B6X8
(Superseded to 503212810)

$3.99

$

In Stock, Qty 20+

0
