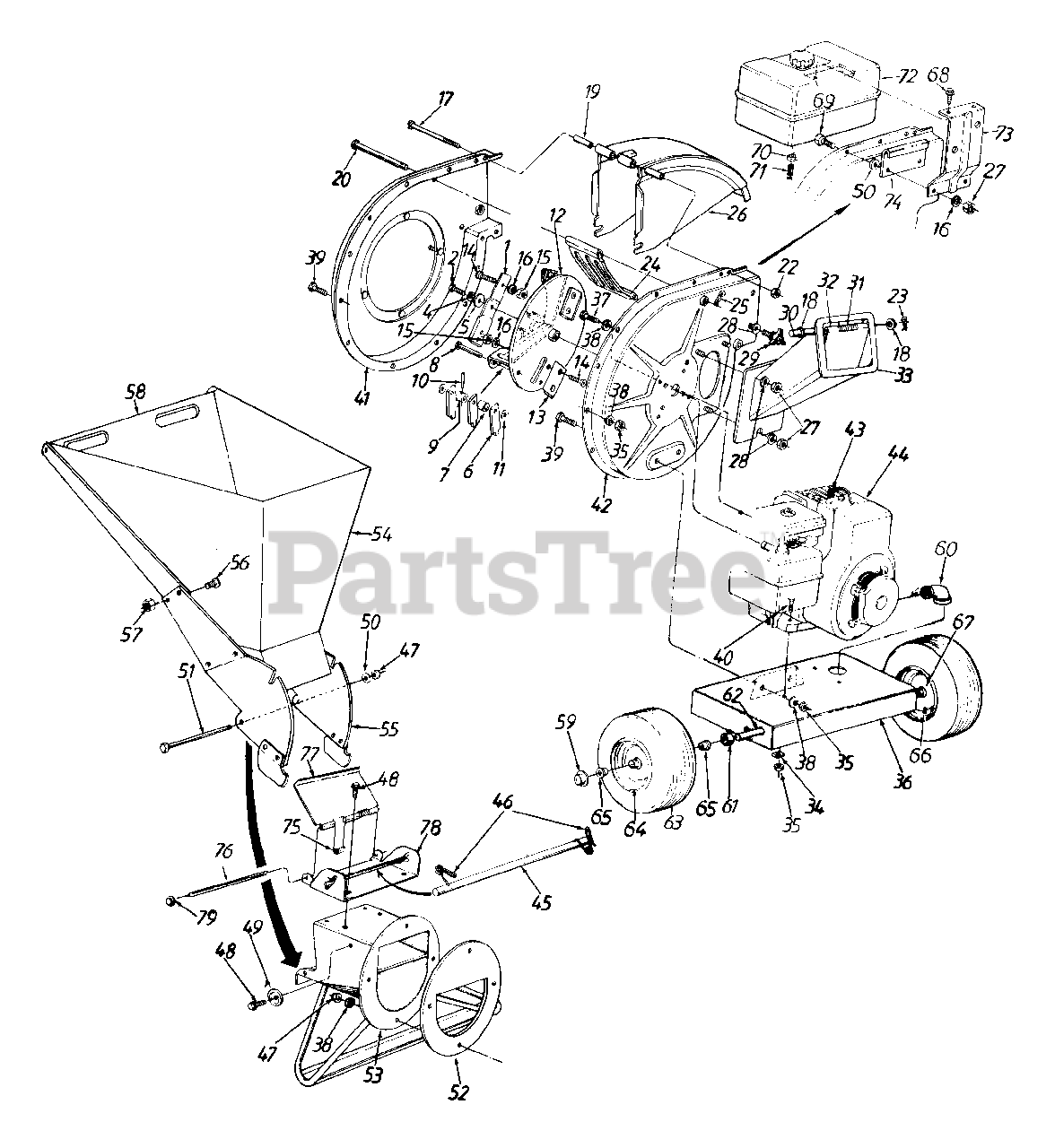

244-645C190 - White Outdoor Shredder (1994) Shredders Parts Diagram

Shredder

Shredders Parts Diagram

  • Title

1

White Outdoor 742-0571

Blade
(Superseded to 942-0571)

$37.99

$

In Stock, Qty 9

0

2

White Outdoor 710-1254

Hex Patch Bolt 3/8-24 x 2.25" (Gr. 8)

$7.99

$

In Stock, Qty 8

0

4

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 6

0

5

White Outdoor 736-0247

Fl-Wash. .406" I.D. x 1.25" O.D. Hdn.

$9.49

$

In Stock, Qty 12

0

6

White Outdoor 11459B

Flail
(Superseded to 91459B)

$21.99

$

In Stock, Qty 20+

0

7

White Outdoor 711-0564

Flail Spacer
(Superseded to 911-0564)

$16.99

$

In Stock, only 2 left!

0

8

White Outdoor 711-0833A

Clevis Pin .496" Dia.
(Superseded to 911-0833B)

$12.99

$

In Stock, only 4 left!

0

9

White Outdoor 711-0834

Flail Spacer w/.160" Dia. Hole
(Superseded to 911-0834A)

$

$

Not available

10

White Outdoor 715-0249

Spring Roll Pin 1.12" Lg.
(Superseded to 915-0249)

$6.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0192

Fl-Wash. .531" I.D. x .94" O.D.

$4.49

$

In Stock, Qty 16

0

12

White Outdoor 681-0032

Impeller Ass'y. Comp

Note: Incl. Ref. 1, 6, 7, 8, 9, 10, 11, 12, 13, 14, Code: N notates a new part (not previously existing).

$

$

Not available

13

White Outdoor 742-0544

Chipper Blade
(Superseded to 942-0544B)

$89.99

$

In Stock, Qty 6

0

14

White Outdoor 710-1054

Flat Hd. Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-0411

Hex Top L-Nut 5/16-24 (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 710-0825

Hex Bolt 1/4-20 x 3.75" Lg.

$5.49

$

In Stock, only 3 left!

0

18

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 750-0793

Chute Hinge Spacer 1.66" Lg.
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 12

0

20

White Outdoor 711-0835

Clevis Pin .5" Dia. x 4.62" Lg.
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

22

White Outdoor 712-0291

Hex Ctr. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

23

White Outdoor 714-3010

Cotter Pin

$4.99

$

In Stock, only 1 left!

0

24

White Outdoor 781-0457

Shredder Screen
(Superseded to 781-0457-0637)

Variations

White Outdoor 781-0457-0637

Shredder Screen, Black - POWDER BLACK (0637)

$41.99

$

In Stock, Qty 10

0

$41.99

$

In Stock, Qty 10

0

25

White Outdoor 714-0149B

Internal Cotter Pin 3/8" Dia.

$4.49

$

In Stock, Qty 18

0

26

White Outdoor 781-0480

Chute Deflector Ass'y.
(Superseded to 681-0094A)

Variations

White Outdoor 781-0480-0480

USE 681-0094-0637 CHUTE ASSY- - BRILLIANT GREEN (0480)

$129.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0483

USE 681-0094-0637 CHUTE ASSY- - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0637

USE 681-0094-0637 CHUTE ASSY- - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0638

CHUTE-DISCHARGE - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0662

USE 681-0094-0637 CHUTE ASSY- - OYSTER GRAY (0662)

$129.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0480-0498

CHUTE ASSY-DISCHARGE - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0480-0686

No Longer Available DEFLECTOR ASSY-CHU - SIMPLICITY ORANGE (0686)

$

$

Not available

$135.99

$

Usually ships in 3-6 days

0

27

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 720-0170

Hand Knob

$11.99

$

In Stock, only 2 left!

0

30

White Outdoor 747-0744A

Chipper Door Rod

$

$

Not available

31

White Outdoor 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)

$

$

Not available

32

White Outdoor 781-0489

Chipper Door

Variations

White Outdoor 781-0489-0483

No Longer Available DOOR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0489-0498

No Longer Available DOOR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0489-0629

No Longer Available DOOR - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 781-0489-0637

No Longer Available DOOR-CHIPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0489-0638

No Longer Available DOOR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0489-0662

No Longer Available DOOR - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0489-0665

No Longer Available DOOR - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

White Outdoor 781-0475

Chipper Chute Ass'y.

Variations

White Outdoor 781-0475-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 781-0475-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0475-0498

No Longer Available CHUTE CHIPPER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0475-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 781-0475-0637

No Longer Available CHUTE-CHIPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0475-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0475-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 781-0475-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 781-0475-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0475-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 781-0475-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 781-0475-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

34

White Outdoor 736-0170

Spec. L-Wash. 5/16" I.D.

$5.99

$

Usually ships in 3-6 days

0

35

White Outdoor 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 781-0510A

Shredder Frame
(Superseded to 681-0184C)

Variations

White Outdoor 781-0510A-0483

FRAME ASSY-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

White Outdoor 781-0510A-0689

FRAME ASSY-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

37

White Outdoor 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

38

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

41

White Outdoor 681-0004

Flail Housing Ass'y.- L.H
(Superseded to 681-0004A)

Variations

White Outdoor 681-0004-0498

HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$236.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0637

FLAIL HOUSING ASSY BLACK - POWDER BLACK (0637)

$236.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0638

HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$236.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0483

HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$219.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0662

HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$191.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0665

HOUSING ASSY-FLAIL - YARDMAN GREEN (0665)

$191.99

$

Usually ships in 3-6 days

0

White Outdoor 681-0004-0689

HOUSING ASSY-FLAIL - POLO GREEN (0689)

$219.99

$

Usually ships in 3-6 days

0

$191.99

$

Usually ships in 3-6 days

0

42

White Outdoor 781-0474A

Flail Housing Ass'y.- R.H.

Variations

White Outdoor 781-0474A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 781-0474A-0483

No Longer Available HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0474A-0498

No Longer Available HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0474A-0629

No Longer Available HOUSING ASSY-FLAIL - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 781-0474A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0474A-0638

No Longer Available HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0474A-0648

No Longer Available HOUSING ASSY-FLAIL - TECH GRAY (0648)

$

$

Not available

White Outdoor 781-0474A-0662

No Longer Available HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 781-0474A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 781-0474A-0674

No Longer Available HOUSING ASSY-FLAIL - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

White Outdoor 735-0639

Spark Plug Boot

Note: Optional

$

$

Not available

44

Engine

$

$

Not available

45

White Outdoor 747-0531A

Release Bar

$

$

Not available

46

White Outdoor 732-0546

Torsion Spring 1.06" Lg
(Superseded to 932-0546)

$4.99

$

Usually ships in 3-6 days

0

47

White Outdoor 712-0429

Elastic Lock Nut 5/16-18 Thd

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 710-0601

Hex Wash Hd Self-Tap Scr 5/16-18 x .75" Lg
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 11480

Stop Washer

$

$

Not available

50

White Outdoor 736-0264

Fl-Wash 5/16" I.D.

$6.99

$

In Stock, only 2 left!

0

51

White Outdoor 710-0542

Hex Bolt 5/16-18 x 8.38" Lg.

$

$

Not available

52

White Outdoor 781-0487B

Back-Up Plate

Variations

White Outdoor 781-0487B-0637

No Longer Available PLATE-BACK-UP POWD - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0487B-0638

No Longer Available PLATE-BACK-UP - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

53

White Outdoor 16522B

Inlet Guide Ass'y

Variations

White Outdoor 16522B-0483

No Longer Available GUIDE ASSY-INLET - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 16522B-0498

No Longer Available GUIDE ASSY-INLET - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 16522B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 16522B-0638

No Longer Available GUIDE ASSY-INLET - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16522B-0662

No Longer Available GUIDE ASSY-INLET - OYSTER GRAY (0662)

$

$

Not available

$

$

54

White Outdoor 781-0494

Pivot Hopper Hood

Variations

White Outdoor 781-0494-0483

No Longer Available HOOD-PIVOT HOPPER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0494-0498

No Longer Available HOOD-PIVOT HOPPER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0494-0499

No Longer Available HOOD-PIVOT HOPPER - CUB BEIGE (0499)

$

$

Not available

White Outdoor 781-0494-0638

No Longer Available HOOD-PIVOT HOPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0494-0662

No Longer Available HOOD-PIVOT HOPPER - OYSTER GRAY (0662)

$

$

Not available

$

$

55

White Outdoor 16524B

Upper Guide Assembly

Variations

White Outdoor 16524B-0483

No Longer Available GUIDE ASSY-UPR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 16524B-0498

No Longer Available GUIDE ASSY-UPR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 16524B-0638

No Longer Available GUIDE ASSY-UPR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16524B-0648

No Longer Available GUIDE ASSY-UPR - TECH GRAY (0648)

$

$

Not available

White Outdoor 16524B-0662

No Longer Available GUIDE ASSY-UPR - OYSTER GRAY (0662)

$

$

Not available

$

$

56

White Outdoor 710-0286

Truss Mach Scr 1/4-20 x .5"

$4.49

$

Usually ships in 3-6 days

0

57

White Outdoor 712-0107

Hex L-Nut 1/4-20 Thd
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

58

White Outdoor 11461B

Upper Leaf Ramp Section

Variations

White Outdoor 11461B-0483

No Longer Available RAMP SECTION-UPR - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 11461B-0498

No Longer Available RAMP SECTION-UPR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 11461B-0629

No Longer Available RAMP SECTION-UPR - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 11461B-0638

No Longer Available RAMP SECTION-UPR - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 11461B-0662

No Longer Available RAMP SECTION-UPR - OYSTER GRAY (0662)

$

$

Not available

$

$

59

White Outdoor 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

In Stock, Qty 5

0

60

White Outdoor 737-0195

Drain Elbow (645C)
(Superseded to 937-0195)

$16.99

$

Usually ships in 3-6 days

0

White Outdoor 737-0125

Drain Elbow (650C)

$

$

Not available

61

White Outdoor 750-0786

Spacer 64" I.D. x .38" Lg.
(Superseded to 950-0786)

$7.49

$

Usually ships in 3-6 days

0

62

White Outdoor 738-0813

Shredder Axle

$52.99

$

Usually ships in 3-6 days

0

63

White Outdoor 734-1597

Wheel Ass'y Comp
(Superseded to 934-04009)

Variations

White Outdoor 734-1597-0911

Wheel Assembly Complete, 10 - Carlisle Gray (0911)

$122.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1597-0931

Wheel Assembly Complete, 10 - Carlisle Beige (0931)

$122.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1597-0941

Wheel Assembly Complete, 10 - Carlisle Yellow (0941)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1598

Tire Only
(Superseded to 734-1598-0901)

Variations

White Outdoor 734-1598-0901

Tire, 648 4.10 /3.5 - Carlisle (0901)

$119.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1598-0902

Tire, 648 4.10 /3.5 - Dico (0902)

$119.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1598-0905

Tire, 648 4.10 /3.5 - Duro (0905)

$119.99

$

Usually ships in 3-6 days

0

$119.99

$

Usually ships in 3-6 days

0

64

White Outdoor 734-1455A

Rim Only

Variations

White Outdoor 734-1455A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 734-1455A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 734-1455A-0662

No Longer Available RIM - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 734-1455A-0674

No Longer Available RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

65

White Outdoor 741-0487A

Flange Bearing .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

66

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 737-0211

Grease Fitting
(Superseded to 737-0211A)

$10.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0895

Hex Hi-Low Scr 1/4" x .75" Lg.

Note: 650C

$6.49

$

In Stock, Qty 10

0

69

White Outdoor 710-3038

Hex Bolt 5/16-18 x .88" Lg.

Note: 650C

$4.99

$

In Stock, only 3 left!

0

70

White Outdoor 726-0205

Hose Clamp

Note: 650C

$3.99

$

In Stock, Qty 20+

0

71

White Outdoor 751-0535-7

Fuel Line - 7" Lg
(Superseded to 751-10349-13)

Note: 650C

$17.99

$

In Stock, only 3 left!

0

72

White Outdoor 751-0570

Fuel Tank Ass'y Comp
(Superseded to BS-691993)

Note: 650C

$166.99

$

In Stock, Qty 10

0

73

White Outdoor 781-0497

Fuel Tank Mtg. Brkt

Note: 650C

Variations

White Outdoor 781-0497-0483

BRACKET-TANK MOUNTING - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0497-0637

BRACKET-TANK MOUNTING - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0497-0638

BRACKET-TANK MOUNTING - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

74

White Outdoor 781-0498

Fuel Tank Support Brkt
(Superseded to 781-0498-0638)

Note: 650C

Variations

White Outdoor 781-0498-0483

BRACKET-TANK SUPPO - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0498-0637

BRACKET-TANK SUPPO - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0498-0638

BRACKET-TANK SUPPO - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

75

White Outdoor 732-0629

Torsion Spring
(Superseded to 932-0629)

$

$

Not available

76

White Outdoor 747-0747

Hopper Door Rod

$

$

Not available

77

White Outdoor 781-0492

Hopper - Pivot Door
(Superseded to 781-0492A)

Variations

White Outdoor 781-0492-0483

No Longer Available DOOR-HOPPER PIVOT - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0492-0498

No Longer Available DOOR-HOPPER PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0492-0637

DOOR-HOPPER PIVOT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0492-0638

DOOR-HOPPER PIVOT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0492-0648

No Longer Available DOOR-HOPPER PIVOT - TECH GRAY (0648)

$

$

Not available

White Outdoor 781-0492-0662

DOOR-HOPPER PIVOT - OYSTER GRAY (0662)

$

$

Not available

$

$

78

White Outdoor 781-0493

Hopper Lockout Brkt

Variations

White Outdoor 781-0493-0483

No Longer Available BRACKET-HOPPER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 781-0493-0498

No Longer Available BRACKET-HOPPER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 781-0493-0637

No Longer Available BRACKET-HOPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0493-0638

No Longer Available BRACKET-HOPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 781-0493-0662

No Longer Available BRACKET-HOPPER - OYSTER GRAY (0662)

$

$

Not available

$

$

79

White Outdoor 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

White Outdoor 764-0199A

Bag
(Superseded to 964-04022)

Note: Not shown

$74.99

$

In Stock, only 1 left!

0

White Outdoor 723-0400

Safety Glasses

Note: Not shown

$26.99

$

Usually ships in 3-6 days

0
