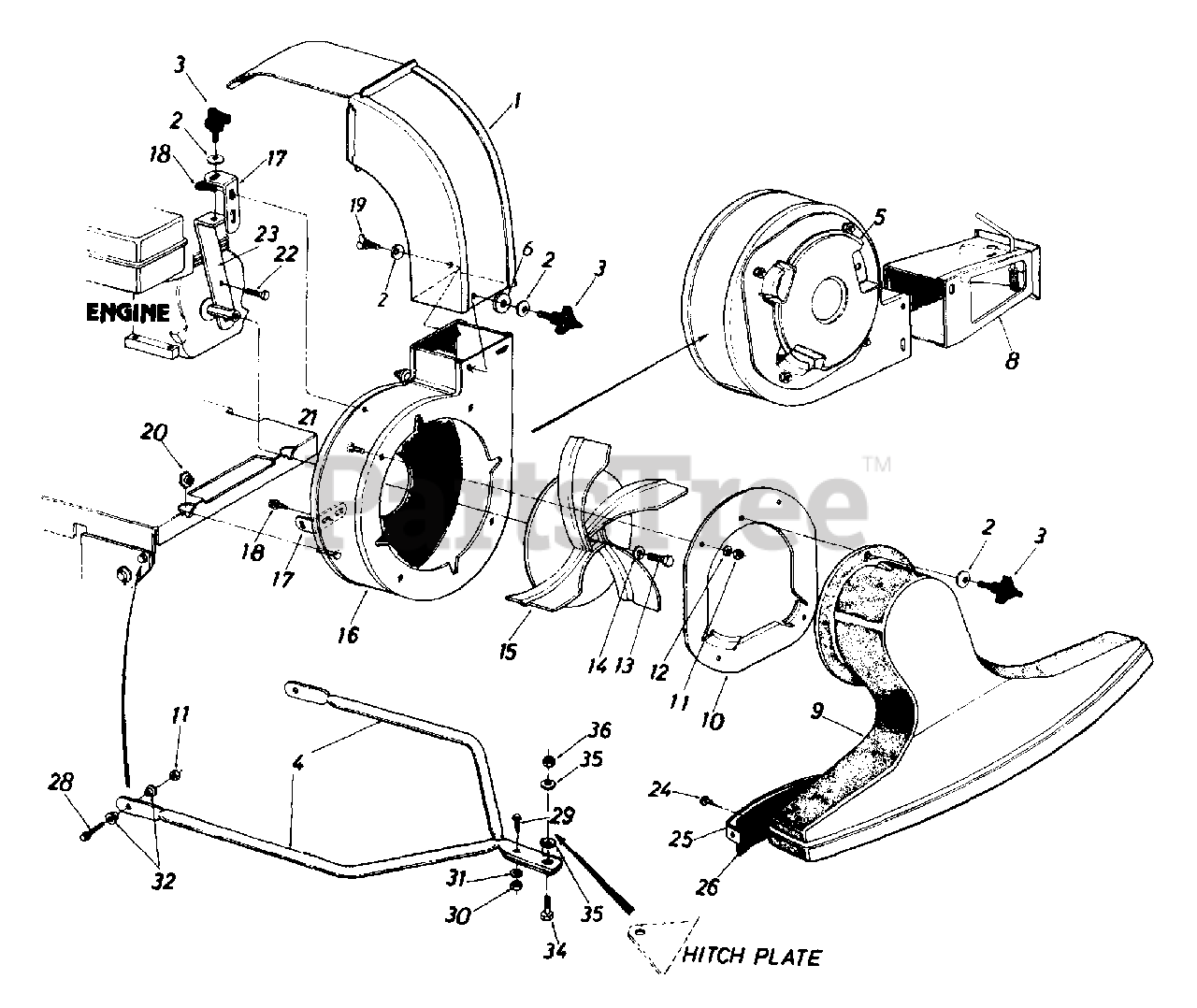

243-685-031 - MTD Walk-Behind Blower Vacuum (1993) (Our Own Hardware) Air Duct And Nozzle Assembly Parts Diagram

Walk-Behind Blower Vacuum

Air Duct And Nozzle Assembly Parts Diagram

  • Title

1

MTD 14532

Air Duct Assembly

Variations

MTD 14532-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14532-0637

No Longer Available DUCT-AIR - POWDER BLACK (0637)

$

$

Not available

MTD 14532-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14532-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

2

MTD T36-0242

Belleville Wash..34" I.D. x .87" O.D.

$

$

Currently unavailable

3

MTD 720-0170

Hand Knob

$11.99

$

In Stock, only 2 left!

0

4

MTD 749-0501

Tow Bar Half

Note: Optional Parts

Variations

MTD 749-0501-0637

No Longer Available TOW BAR-HA - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 731-0608

Impeller Guard

$

$

Not available

6

MTD 736-0231

Fl-Wash..344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

8

MTD 14479

Directional Discharge Ass'y.

Variations

MTD 14479-0483

No Longer Available DISCHARGEASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14479-0498

No Longer Available DISCHARGEASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14479-0637

No Longer Available DISCHARGEASM - POWDER BLACK (0637)

$

$

Not available

MTD 14479-0638

No Longer Available DISCHARGEASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14479-0665

No Longer Available DISCHARGEASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 14479-0691

No Longer Available DISCHARGE ASM - BLACK JACK (0691)

$

$

Not available

MTD 14479-0662

No Longer Available DISCHARGE - OYSTER GRAY (0662)

$

$

Not available

MTD 14479-0709

No Longer Available DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

9

MTD 14562B

Nozzle Ass'y. (Black)

$

$

Not available

MTD 731-1123

Nozzle Ass'y. (Beige)

$

$

Not available

10

MTD 14563

Nozzle Plate Ass'y.
(Superseded to 14563A)

$

$

Not available

11

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

14

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

15

MTD 14536

Air Vane Plate Ass'y.

Note: Model (675 and 677)

$

$

Not available

MTD 14557A

Air Vane Plate Ass'y. w/Pulley

Note: Model (685, 689 and 687)

Variations

MTD 14557A-0637

Air Vane Plate Ass'y. w/Pulley - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 14496A

Blower Housing Complete
(Superseded to 14496B)

Variations

MTD 14496A-0483

No Longer Available HOUSING AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14496A-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 14496A-0637

HOUSING ASM-BLOWER - POWDER BLACK (0637)

$

$

Not available

MTD 14496A-0638

HOUSING ASM-BLOWER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14496A-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

MTD 14496A-0665

No Longer Available HOUSING AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 14496A-0691

No Longer Available HOUSING AS - BLACK JACK (0691)

$

$

Not available

MTD 14496A-0709

No Longer Available HOUSING AS - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

17

MTD 14541

Right Angle Bracket
(Superseded to 14541-0637)

Variations

MTD 14541-0637

BRACKET-RIGHT ANGL - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0600

Hex Self-Tap Scr. 5/16-18 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

19

MTD 710-1258

Thumb Screw 5/16-18

$

$

Not available

20

711 0758

Hex Shoulder Nut.50 I.D.

$

$

Not available

21

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

22

710 0627

Hex Locking 8olt 5/16-24 x .75" Lg.

$

$

Not available

23

MTD 14539

Housing - Engine Brace Ass'y.
(Superseded to 14539-0637)

Variations

MTD 14539-0637

HOUSING-ENG BRACE - POWDER BLACK (0637)

$

$

Not available

$

$

24

728 0173

Pop Rivet

$

$

Not available

25

MTD 14569

Wiper Retaining Strip

Variations

MTD 14569-0637

No Longer Available WIPER RETA - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 735-0214

Nozzle Wiper

$34.99

$

Usually ships in 3-6 days

0

28

MTD 710-0602

Hex Bolt 5/16-18 x 1.00" Lg.

Note: Optional Parts

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

Note: Optional Parts

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

Note: Optional Parts

$4.99

$

In Stock, only 1 left!

0

31

MTD 736-0329

l -Wash. 1/4" I.D.
(Superseded to 936-0329)

Note: Optional Parts

$4.49

$

In Stock, Qty 11

0

32

748 0234

Shoulder Spacer

Note: Optional Parts

$

$

Not available

34

MTD 738-0143

Shld. Bolt .496 Dia.

Note: Optional Parts

$4.49

$

In Stock, Qty 20+

0

35

736 0219

Belleville Wash..39" I.D. x 1.12" O.D.

Note: Optional Parts

$

$

Not available

36

MTD 712-0181

Hex Jam L-Nut 3/8-26 Thd.

Note: Optional Parts

$4.49

$

In Stock, only 3 left!

0
