243-645C190 - White Outdoor Shredder, 5hp (1993) Shredder 645C Parts Diagram

Shredder, 5hp

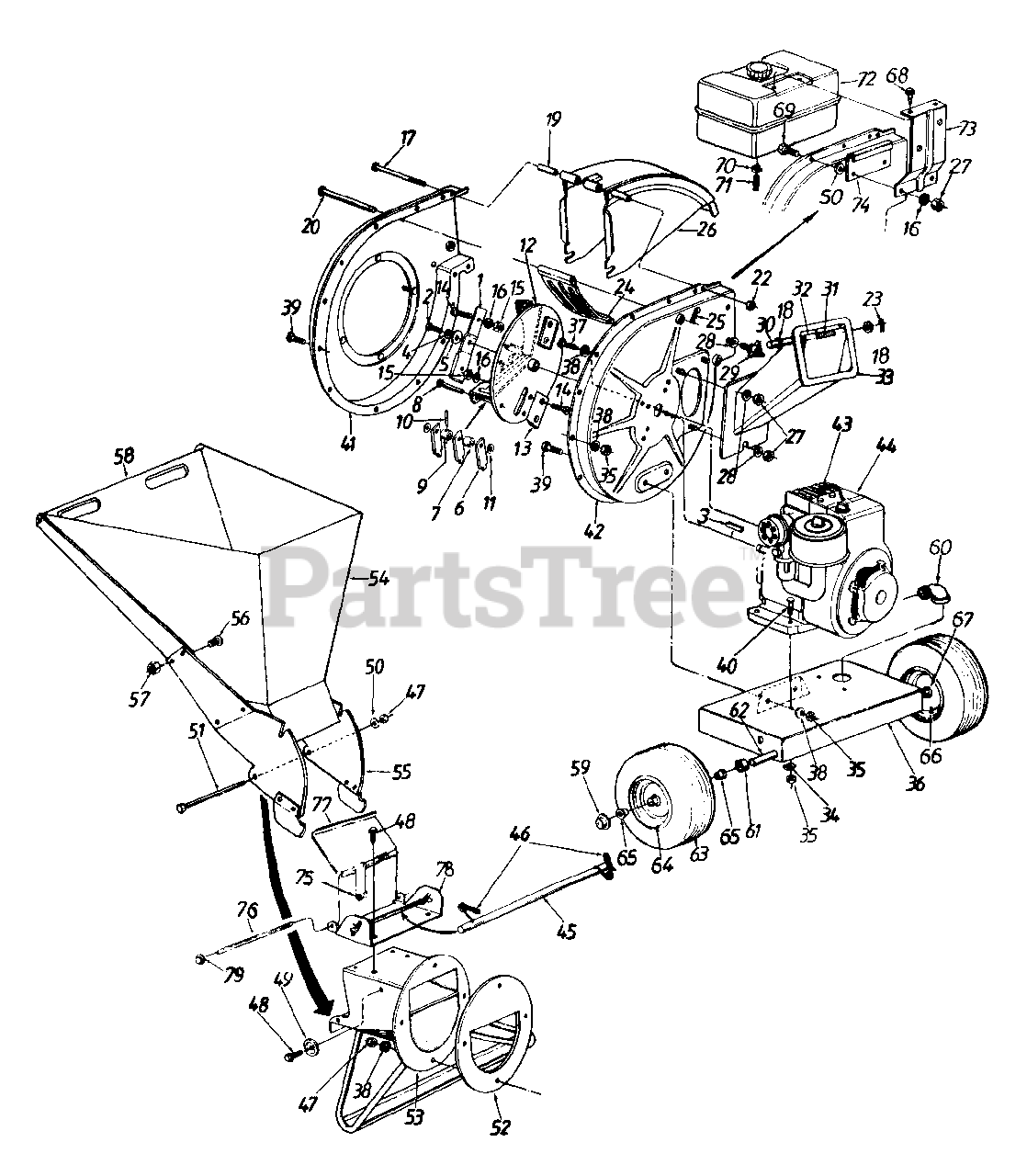

Shredder 645C Parts Diagram

  • Title

1

MTD 942-0571

Blade

$37.99

$

Usually ships in 3-6 days

0

2

MTD 710-0818

Hex Patch Bolt 3/8-24 x 2" Lg. (Gr. 8)

Note: Used with Keyed Engine Crankshaft

$6.99

$

Usually ships in 3-6 days

0

2

MTD 710-1254

Hex Patch Bolt 3/8-24 x 2.25" (Gr. 8)

Note: Used with Tapered Engine Crankshaft

$7.99

$

In Stock, Qty 9

0

3

MTD 914-0114

Sq. Key 1/4 x 2.0" Lg.

Note: Used with Keyed Engine Crankshaft

$4.49

$

In Stock, only 1 left!

0

4

MTD 936-0217

L-Wash. 3/8" I.D. H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 9

0

5

MTD 736-0247

Fl-Wash. .406" I.D. x 1.25" O.D. Hdn.

$9.49

$

In Stock, Qty 16

0

6

MTD 91459B

Flail

$21.99

$

In Stock, Qty 20+

0

7

MTD 911-0564

Flail Spacer

$16.99

$

In Stock, only 2 left!

0

8

MTD 911-0833B

Clevis Pin .496" Dia.

$12.99

$

In Stock, only 2 left!

0

9

MTD 911-0834A

Flail Spacer w/.160" Dia. Hole

$

$

Not available

10

MTD 915-0249

Spring Roll Pin 1.12" Lg.

$6.99

$

In Stock, only 2 left!

0

11

MTD 936-0192

Fl-Wash. .531" I.D. x .94" O.D.

$4.49

$

In Stock, Qty 18

0

12

MTD 681-0002

Impeller Ass'y. Comp.

Note: NLA (Incl. Ref. 1, 6, 7, 8, 9, 10, 11, 12, 13, 14) Used with Keyed Engine Crankshaft

$

$

Not available

12

MTD 981-04096

Impeller Ass'y. Comp.

Note: (Incl. Ref. 1, 6, 7, 8, 9, 10, 11, 12, 13, 14)Used with Tapered Engine Crankshaft

$600.99

$

Usually ships in 3-6 days

0

13

MTD 942-0544B

Chipper Blade

$89.99

$

In Stock, Qty 7

0

14

MTD 710-1054

Flat Hd. Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

15

MTD 912-0411

Hex Top L-Nut 5/16-24 (Gr. 5)
(Superseded to 712-0411)

$

$

Not available

16

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

17

MTD 710-0825

Hex Bolt 1/4-20 x 3.75" Lg.

$5.49

$

In Stock, only 1 left!

0

18

MTD 936-0142

Fl-Wash. .281" I.D. x .5" O.D.
(Superseded to 736-0142)

$4.99

$

In Stock, only 4 left!

0

19

MTD 950-0793

Chute Hinge Spacer 1.66" Lg.

$3.99

$

In Stock, only 2 left!

0

20

MTD 911-0835

Clevis Pin .5" Dia. x 4.62" Lg.

$12.99

$

Usually ships in 3-6 days

0

22

MTD 912-0291

Hex Ctr. L-Nut 1/4-20 Thd.
(Superseded to 712-0291)

$

$

Not available

23

MTD 714-3010

Cotter Pin 3/32" x 5/8"

$4.99

$

In Stock, only 1 left!

0

24

MTD 781-0457-0637

Shredder Screen

$41.99

$

In Stock, Qty 5

0

25

MTD 914-0149B

Internal Cotter Pin 3/8" Dia.
(Superseded to 714-0149B)

$

$

Not available

26

MTD 781-0480

Chute Deflector Ass'y.
(Superseded to 681-0094A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0480-0480

CHUTE-DISCHARGE - BRILLIANT GREEN (0480)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0662

CHUTE-DISCHARGE - OYSTER GRAY (0662)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0480-0686

No Longer Available DEFLECTOR - SIMPLICITY ORANGE (0686)

$

$

Not available

$135.99

$

Usually ships in 3-6 days

0

27

MTD 912-3010

Hex Nut 5/16-18 Thd. (Gr. 5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

29

MTD 720-0170

Hand Knob

$11.99

$

In Stock, only 2 left!

0

30

MTD 747-0744A

Chipper Door Rod

$

$

Not available

31

MTD 932-0542

Torsion Spring 1.14" Lg.

$

$

Not available

32

MTD 781-0489

Chipper Door

Note: NLA

Variations

MTD 781-0489-0483

No Longer Available DOOR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0489-0498

No Longer Available DOOR - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0489-0629

No Longer Available DOOR - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0489-0637

No Longer Available DOOR-CHIPP - POWDER BLACK (0637)

$

$

Not available

MTD 781-0489-0638

No Longer Available DOOR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0489-0662

No Longer Available DOOR - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0489-0665

No Longer Available DOOR - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

MTD 781-0475

Chipper Chute Ass'y.

Note: NLA

Variations

MTD 781-0475-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0475-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0475-0498

No Longer Available CHUTE CHIP - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0475-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0475-0637

No Longer Available CHUTE-CHIP - POWDER BLACK (0637)

$

$

Not available

MTD 781-0475-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0475-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 781-0475-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 781-0475-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0475-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0475-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 781-0475-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

34

MTD 936-0170

Spec. L-Wash. 5/16" I.D.
(Superseded to 736-0170)

$

$

Not available

35

MTD 912-3010

Hex Nut 5/16-18 Thd. (Gr. 5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 681-0184

Shredder Frame - (645C)
(Superseded to 681-0184C)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0184-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$117.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0691

FRAME ASM-SHREDDER - BLACK JACK (0691)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0709

FRAME ASM-SHREDDER - MASTERCRAFT GREEN (0709)

$102.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

36

MTD 781-0459A

Shredder Frame - (650C)

Note: NLA

Variations

MTD 781-0459A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0459A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0459A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0459A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

37

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

38

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

39

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 15

0

41

MTD 681-0004A

Flail Housing Ass'y. - L.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0004A-0498

HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0637

HOUSING ASSY-FLAIL - POWDER BLACK (0637)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0638

HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0483

HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0662

HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0665

HOUSING ASSY-FLAIL - YARDMAN GREEN (0665)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0668

HOUSING ASSY-FLAIL - MOSS GREEN (0668)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0689

HOUSING ASSY-FLAIL - POLO GREEN (0689)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0691

HOUSING ASSY-FLAIL - BLACK JACK (0691)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0709

HOUSING ASSY-FLAIL - MASTERCRAFT GREEN (0709)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0721

HOUSING ASSY-FLAIL - SEARS RED (0721)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-4044

HOUSING ASSY-FLAIL - CRAFTSMAN RED (4044)

$219.99

$

Usually ships in 3-6 days

0

$191.99

$

Usually ships in 3-6 days

0

42

MTD 781-0474A

Flail Housing Ass'y. - R.H.

Note: NLA

Variations

MTD 781-0474A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0474A-0483

No Longer Available HOUSING AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0474A-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0474A-0629

No Longer Available HOUSING AS - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0474A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0474A-0638

No Longer Available HOUSING AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0474A-0648

No Longer Available HOUSING AS - TECH GRAY (0648)

$

$

Not available

MTD 781-0474A-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0474A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0474A-0674

No Longer Available HOUSING AS - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

MTD 735-0639

Spark Plug Boot

$

$

Not available

44

Engine

$

$

Not available

45

MTD 747-0531A

Release Bar

Note: NLA

$

$

Not available

46

MTD 932-0546

Torsion Spring 1.06" Lg.

$4.99

$

In Stock, only 2 left!

0

47

MTD 912-0429

Elastic Lock Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-1260A

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

49

MTD 11480

Stop Washer

$

$

Not available

50

MTD 936-0264

Fl-Wash. 5/16" I.D.

$6.99

$

In Stock, only 3 left!

0

51

MTD 710-0542

Hex Bolt 5/16-18 x 8.38" Lg.

$

$

Not available

52

MTD 781-0487B

Back-Up Plate

Note: NLA

Variations

MTD 781-0487B-0637

No Longer Available PLATE-BACK - POWDER BLACK (0637)

$

$

Not available

MTD 781-0487B-0638

No Longer Available PLATE-BACK - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

53

MTD 16522B

Inlet Guide Ass'y.

Note: NLA

Variations

MTD 16522B-0483

No Longer Available GUIDE ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16522B-0498

No Longer Available GUIDE ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16522B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 16522B-0638

No Longer Available GUIDE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16522B-0662

No Longer Available GUIDE ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

54

MTD 781-0494

Pivot Hopper Hood

Note: NLA

Variations

MTD 781-0494-0483

No Longer Available HOOD-PIVOT - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0494-0498

No Longer Available HOOD-PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0494-0499

No Longer Available HOOD-PIVOT - CUB BEIGE (0499)

$

$

Not available

MTD 781-0494-0638

No Longer Available HOOD-PIVOT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0494-0662

No Longer Available HOOD-PIVOT - OYSTER GRAY (0662)

$

$

Not available

$

$

55

MTD 16524B

Upper Guide Assembly

Note: NLA

Variations

MTD 16524B-0483

No Longer Available GUIDE ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16524B-0498

No Longer Available GUIDE ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16524B-0638

No Longer Available GUIDE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16524B-0648

No Longer Available GUIDE ASM - TECH GRAY (0648)

$

$

Not available

MTD 16524B-0662

No Longer Available GUIDE ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

56

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5"

$4.49

$

Usually ships in 3-6 days

0

57

MTD 912-0107

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

58

MTD 11461B

Upper Leaf Ramp Section

Note: NLA

Variations

MTD 11461B-0483

No Longer Available RAMP SECTI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 11461B-0498

No Longer Available RAMP SECTI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 11461B-0629

No Longer Available RAMP SECTI - SILVER FLAKE (0629)

$

$

Not available

MTD 11461B-0638

No Longer Available RAMP SECTI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 11461B-0662

No Longer Available RAMP SECTI - OYSTER GRAY (0662)

$

$

Not available

$

$

59

MTD 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

In Stock, only 3 left!

0

60

MTD 937-0195

Drain Elbow (5 HP B&S)

$16.99

$

Usually ships in 3-6 days

0

60

MTD 737-0125

Drain Elbow (8 HP B&S)

$

$

Not available

61

MTD 950-0786

Spacer .64" I.D. x .38" Lg.

$7.49

$

Usually ships in 3-6 days

0

62

MTD 738-0813

Shredder Axle

$52.99

$

Usually ships in 3-6 days

0

63

MTD 934-04009

Wheel Ass'y. Comp.

$122.99

$

Usually ships in 3-6 days

0

63

MTD 734-1598-0901

Tire Only

$119.99

$

Usually ships in 3-6 days

0

64

MTD 734-1455

Rim Only

Note: NLA

$

$

Not available

65

MTD 741-0487C

Flange Bearing .632" I.D.

$7.49

$

Usually ships in 3-6 days

0

66

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

67

MTD 937-0280

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

68

MTD 710-0895

Hex Hi-Low Scr. 1/4 x .75" (650C)

$6.49

$

In Stock, Qty 5

0

69

MTD 710-3038

Hex Bolt 5/16-18 x .88" Lg. (650C)

$4.99

$

In Stock, only 3 left!

0

70

MTD 726-0205

Hose Clamp (650C)

$3.99

$

In Stock, Qty 18

0

71

MTD 751-10349-13

Fuel Line - 7 in.(650C)

$17.99

$

In Stock, only 3 left!

0

72

MTD BS-691993

Fuel Tank Ass'y. Comp.(650C)

$166.99

$

In Stock, Qty 10

0

73

MTD 781-0497

Fuel Tank Mtg. Brkt.(650C)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0497-0483

BRACKET-TANK MTG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0497-0637

BRACKET-TANK MTG - POWDER BLACK (0637)

$

$

Not available

MTD 781-0497-0638

BRACKET-TANK MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

74

MTD 781-0498-0638

Fuel Tank Support Brkt.(650C)

$

$

Not available

75

MTD 932-0629

Torsion Spring

$

$

Not available

76

MTD 747-0747

Hopper Door Rod

$

$

Not available

77

MTD 781-0492A

Hopper-Pivot Door

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0492A-0483

No Longer Available DOOR-HOPPE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0492A-0637

No Longer Available DOOR-HOPPER PIVOT - POWDER BLACK (0637)

$

$

Not available

MTD 781-0492A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0492A-0689

No Longer Available DOOR-HOPPER PIVOT - POLO GREEN (0689)

$

$

Not available

$

$

78

MTD 781-0493

Hopper Lockout Brkt.

Note: NLA

Variations

MTD 781-0493-0483

No Longer Available BRACKET-HO - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0493-0498

No Longer Available BRACKET-HO - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0493-0637

No Longer Available BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

MTD 781-0493-0638

No Longer Available BRACKET-HO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0493-0662

No Longer Available BRACKET-HO - OYSTER GRAY (0662)

$

$

Not available

$

$

79

MTD 926-0106

Cap Speed Nut 1/4" Rod
(Superseded to 726-0106)

$

$

Not available

MTD 964-04022

Bag
(Superseded to 664P04022A)

Note: (Not shown)

$74.99

$

In Stock, only 2 left!

0

MTD 723-0400

Safety Glasses

Note: (Not shown)

$26.99

$

Usually ships in 3-6 days

0
