242A641-190 - White Outdoor Shredder, 4hp (1992) Shredders 4HP Parts Diagram

Shredder, 4hp

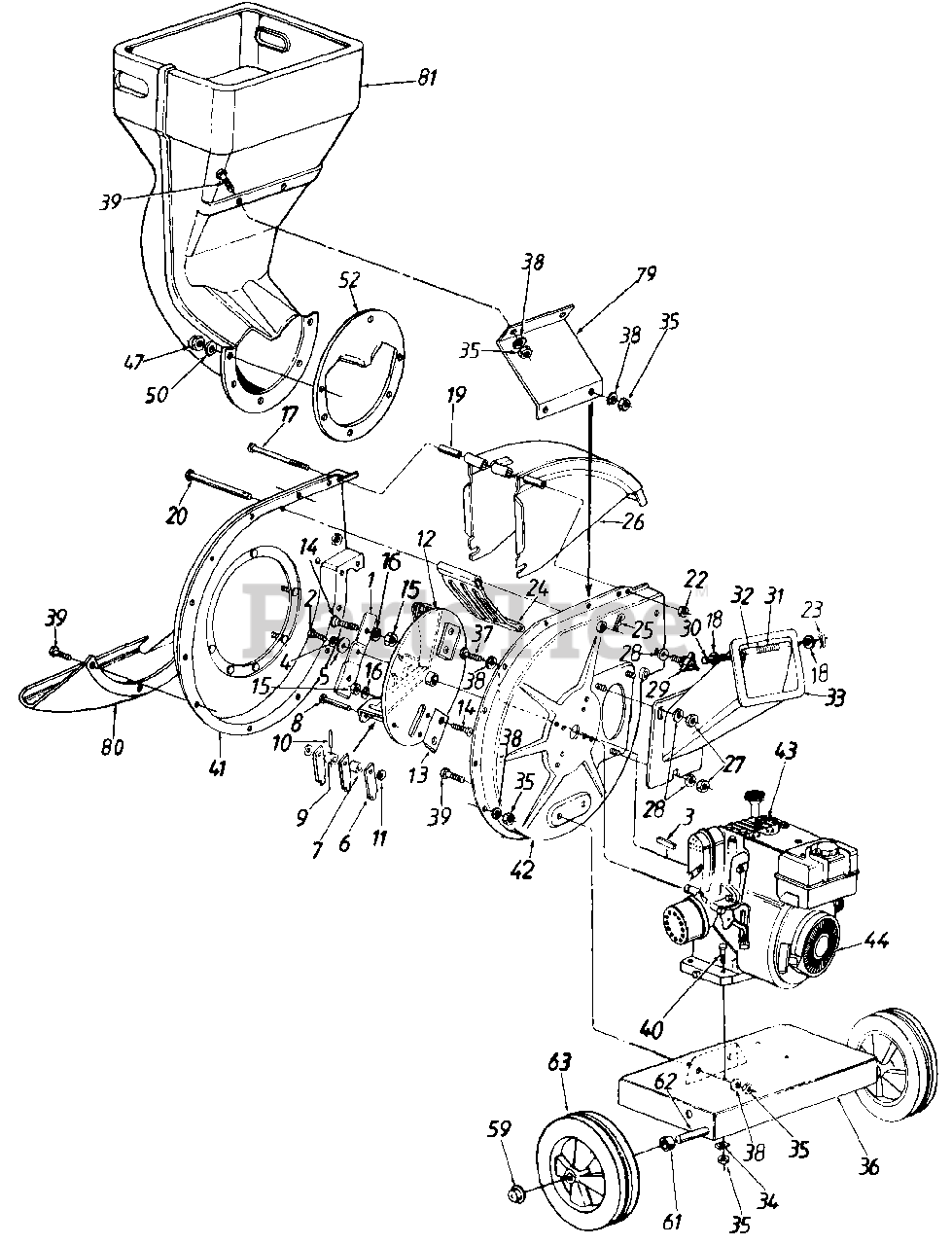

Shredders 4HP Parts Diagram

  • Title

1

MTD 942-0571

Blade

Note: For model 242A641 Only

$37.99

$

In Stock, Qty 10

0

1

MTD 13431-0637

Blade

Note: For model 242-641 Only

$

$

Not available

2

MTD 710-0818

Hex Patch Bolt 3/8-24 x 2" Lg. (Gr. 8)

$6.99

$

Usually ships in 3-6 days

0

3

MTD 914-0114

Sq. Key 1/4 x 2.0" Lg.

$4.49

$

In Stock, only 1 left!

0

4

MTD 936-0217

L-Wash. 3/8" I.D. H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

5

MTD 736-0247

Fl-Wash. .406" I.D. x 1.25" O.D. Hdn.

$9.49

$

In Stock, Qty 14

0

6

MTD 91459B

Flail

$21.99

$

In Stock, Qty 20+

0

7

MTD 911-0564

Flail Spacer

$16.99

$

In Stock, only 2 left!

0

8

MTD 911-0833B

Clevis Pin .496" Dia.

$12.99

$

In Stock, Qty 5

0

9

MTD 911-0834A

Flail Spacer w/.160" Dia. Hole

$

$

Not available

10

MTD 915-0249

Spring Roll Pin 1.12" Lg.

$6.99

$

In Stock, only 2 left!

0

11

MTD 936-0192

Fl-Wash. .531" I.D. x .94" O.D.

$4.49

$

In Stock, Qty 18

0

12

MTD 681-0002

Impeller Ass'y. Comp.

Note: NLA - For model 242A641 Only

$

$

Not available

12

MTD 781-0484

Impeller Ass'y. Comp.

Note: NLA - For model 242-641 Only

$

$

Not available

13

MTD 981-0490

Chipper Blade

$30.99

$

In Stock, Qty 9

0

14

MTD 710-1054

Flat Hd. Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

15

MTD 912-0411

Hex Top L-Nut 5/16-24 (Gr. 5)
(Superseded to 712-0411)

$

$

Not available

16

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

17

MTD 710-0825

Hex Bolt 1/4-20 x 3.75" Lg.

$5.49

$

In Stock, only 3 left!

0

18

MTD 936-0142

Fl-Wash. .281" I.D. x .50" O.D.
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

19

MTD 950-0793

Chute Hinge Spacer 1.66" Lg.

$3.99

$

In Stock, Qty 12

0

20

MTD 911-0835

Clevis Pin .5" Dia. x 4.62" Lg.

$12.99

$

In Stock, only 3 left!

0

22

MTD 912-0291

Hex Ctr. L-Nut 1/4-20 Thd.
(Superseded to 712-0291)

$

$

Not available

23

MTD 714-3010

Cotter Pin

$4.99

$

In Stock, only 1 left!

0

24

MTD 781-0457-0637

Shredder Screen

$41.99

$

In Stock, Qty 11

0

25

MTD 914-0149B

Internal Cotter Pin 3/8" Dia.
(Superseded to 714-0149B)

$

$

Not available

26

MTD 781-0480

Chute Deflector Ass'y.
(Superseded to 681-0094A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0480-0480

CHUTE-DISCHARGE - BRILLIANT GREEN (0480)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0662

CHUTE-DISCHARGE - OYSTER GRAY (0662)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$129.99

$

Usually ships in 3-6 days

0

MTD 781-0480-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0480-0686

No Longer Available DEFLECTOR - SIMPLICITY ORANGE (0686)

$

$

Not available

$135.99

$

Usually ships in 3-6 days

0

27

MTD 912-3010

Hex Nut 5/16-18 Thd. (Gr. 5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

29

MTD 720-0170

Hand Knob

$11.99

$

In Stock, only 2 left!

0

30

MTD 747-0744A

Chipper Door Rod

$

$

Not available

31

MTD 932-0542

Torsion Spring 1.14" Lg.

$

$

Not available

32

MTD 781-0489

Chipper Door

Note: NLA

Variations

MTD 781-0489-0483

No Longer Available DOOR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0489-0498

No Longer Available DOOR - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0489-0629

No Longer Available DOOR - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0489-0637

No Longer Available DOOR-CHIPP - POWDER BLACK (0637)

$

$

Not available

MTD 781-0489-0638

No Longer Available DOOR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0489-0662

No Longer Available DOOR - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0489-0665

No Longer Available DOOR - YARDMAN GREEN (0665)

$

$

Not available

$

$

33

MTD 781-0475

Chipper Chute Ass'y.

Note: NLA

Variations

MTD 781-0475-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0475-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0475-0498

No Longer Available CHUTE CHIP - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0475-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0475-0637

No Longer Available CHUTE-CHIP - POWDER BLACK (0637)

$

$

Not available

MTD 781-0475-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0475-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 781-0475-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 781-0475-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0475-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0475-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 781-0475-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

34

MTD 936-0170

Spec. L-Wash. 5/16" I.D.
(Superseded to 736-0170)

$

$

Not available

35

MTD 912-3010

Hex Nut 5/16-18 Thd. (Gr. 5)
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 681-0184

Shredder Frame
(Superseded to 681-0184C)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0184-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$117.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0691

FRAME ASM-SHREDDER - BLACK JACK (0691)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184-0709

FRAME ASM-SHREDDER - MASTERCRAFT GREEN (0709)

$102.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

37

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

38

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

39

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 11

0

41

MTD 681-0004A

Flail Housing Ass'y. - L.H.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0004A-0498

HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0637

HOUSING ASSY-FLAIL - POWDER BLACK (0637)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0638

HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0483

HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0662

HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0665

HOUSING ASSY-FLAIL - YARDMAN GREEN (0665)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0668

HOUSING ASSY-FLAIL - MOSS GREEN (0668)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0689

HOUSING ASSY-FLAIL - POLO GREEN (0689)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0691

HOUSING ASSY-FLAIL - BLACK JACK (0691)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0709

HOUSING ASSY-FLAIL - MASTERCRAFT GREEN (0709)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0721

HOUSING ASSY-FLAIL - SEARS RED (0721)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-4044

HOUSING ASSY-FLAIL - CRAFTSMAN RED (4044)

$219.99

$

Usually ships in 3-6 days

0

$191.99

$

Usually ships in 3-6 days

0

42

MTD 781-0474A

Flail Housing Ass'y. - R.H.

Note: NLA

Variations

MTD 781-0474A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0474A-0483

No Longer Available HOUSING AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0474A-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0474A-0629

No Longer Available HOUSING AS - SILVER FLAKE (0629)

$

$

Not available

MTD 781-0474A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0474A-0638

No Longer Available HOUSING AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0474A-0648

No Longer Available HOUSING AS - TECH GRAY (0648)

$

$

Not available

MTD 781-0474A-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0474A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0474A-0674

No Longer Available HOUSING AS - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

MTD 735-0639

Spark Plug Boot

$

$

Not available

44

Engine

$

$

Not available

47

MTD 912-0429

Elastic Lock Nut 5/16-18 Thd.
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

50

MTD 936-0264

Fl-Wash. 5/16" I.D.

$6.99

$

In Stock, only 3 left!

0

52

MTD 781-0521

Back-Up Plate

Note: NLA

$

$

Currently unavailable

59

MTD 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

Usually ships in 3-6 days

0

61

MTD 950-0786

Spacer .64" I.D. x .38" Lg.

$7.49

$

Usually ships in 3-6 days

0

62

MTD 738-0814

Shredder Axle

$44.99

$

In Stock, only 1 left!

0

63

MTD 734-1603

Wheel Ass'y. Comp.

Note: NLA

$

$

Not available

79

MTD 781-0519

Hopper Support Brkt.

Note: NLA

Variations

MTD 781-0519-0637

No Longer Available BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

MTD 781-0519-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0519-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

$

$

80

MTD 781-0515

Front Support Brkt.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0515-0483

BRACKET-SUPPORT-FR - CHARCOAL GRAY (0483)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0638

BRACKET-SUPPORT-FR - MTD/TROY-BILT RED (0638)

$49.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0637

BRACKET-SUPPORT-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0662

BRACKET-SUPPORT-FR - OYSTER GRAY (0662)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0665

BRACKET-SUPPORT-FR - YARDMAN GREEN (0665)

$53.99

$

Usually ships in 3-6 days

0

MTD 781-0515-0691

BRACKET-SUPPORT-FR - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

MTD 781-0515-4044

BRKT-FRNT SUPPORT - CRAFTSMAN RED (4044)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

81

MTD 731-1307

Leaf Hopper

Note: NLA

$

$

Not available

MTD 964-04022

Bag
(Superseded to 664P04022A)

Note: (Not shown)

$74.99

$

Usually ships in 3-6 days

0

MTD 723-0400

Safety Glasses

Note: (Not shown)

$26.99

$

Usually ships in 3-6 days

0
