2424 (9024200) - Simplicity Chipper Shredder 23HP Rotor Group - Models 2020, 2024, 20 PTO & 24 PTO Parts Diagram

Chipper Shredder

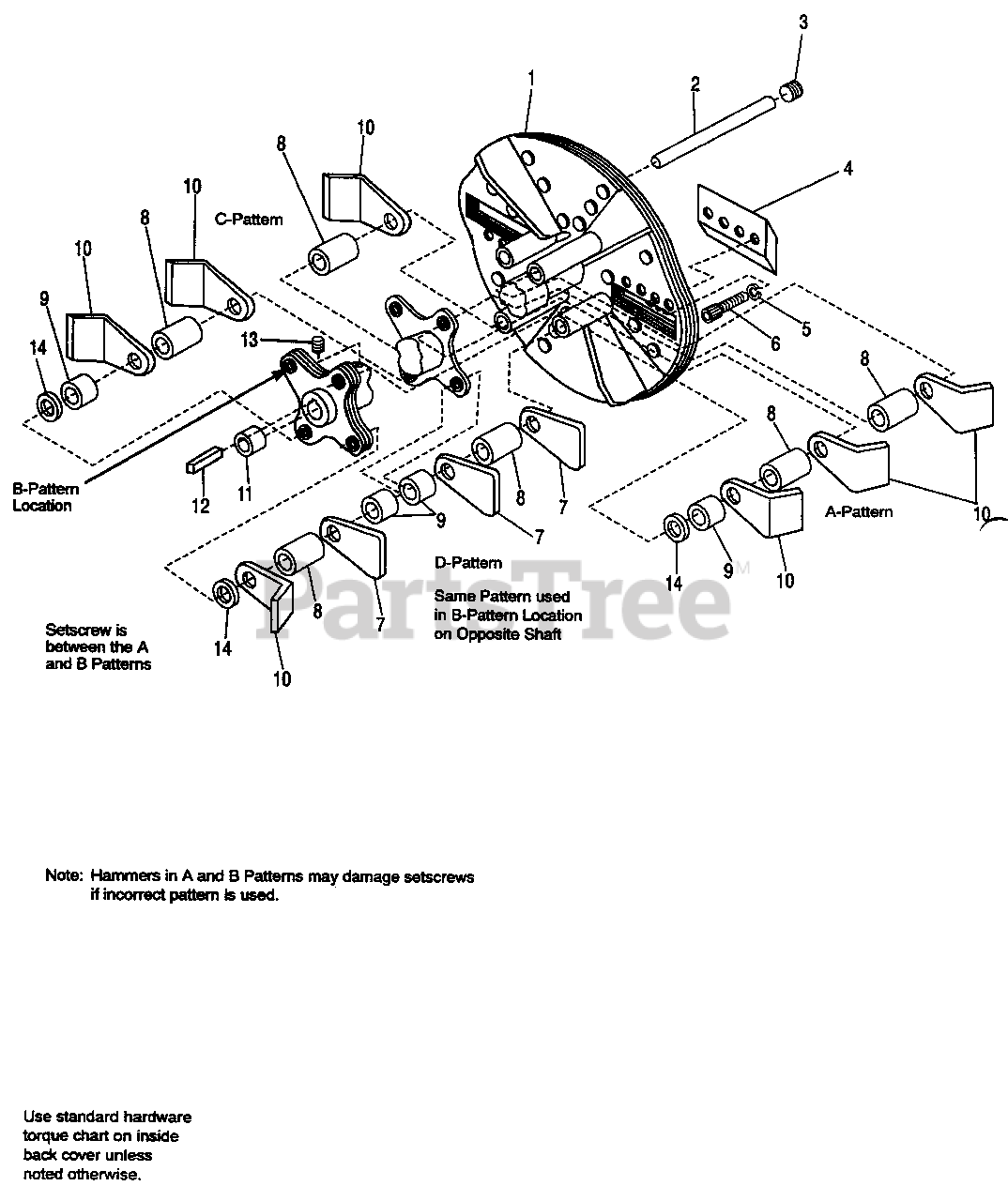

23HP Rotor Group - Models 2020, 2024, 20 PTO & 24 PTO Parts Diagram

  • Title

1

Simplicity 1729133SM

ROTOR (PTO)

$

$

Not available

1

Simplicity 1729135SM

ROTOR (Trailer)

$

$

Not available

2

Simplicity 1709575SM

SHAFT, Hammer

$44.99

$

Usually ships in 2-12 days

0

3

Simplicity 917970

PIPE Plug, Socket Head, 1/2"

$

$

Not available

4

Simplicity 1729146SM

KNIFE, 6"

$547.99

$

Usually ships in 2-12 days

0

5

Simplicity 1916966SM

LOCKWASHER, 1/2"
(Superseded to 703341)

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 1729213SM

CAPSCREW, Socket Hd., 1/2-20 x 1-5/8

$6.99

$

Usually ships in 2-12 days

0

7

Simplicity 1729136SM

HAMMER, Triangular

$37.99

$

Usually ships in 2-12 days

0

8

Simplicity 1709568SM

SPACER, Long, 1-7/8"

$21.99

$

Usually ships in 2-12 days

0

9

Simplicity 1709567SM

SPACER, Short, 1"

$47.99

$

Usually ships in 2-12 days

0

10

Simplicity 1729149SM

J HAMMER

$41.99

$

Usually ships in 2-12 days

0

11

Simplicity 1729219SM

SPACER, (PTO)

$

$

Not available

12

Simplicity 1729211SM

KEY, 3/8 x 3 3/8 (Trailer)

$

$

Not available

12

Simplicity 1729210SM

KEY, 8 mm x 56 mm (PTO)

$

$

Not available

13

Simplicity 1729218SM

SCREW, Set, 1/2-20 x 1/2 (Apply Loctite)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 1960160SM

WASHER, 3/4 I.D. x 1-39/64 O.D. x 3/64 THK.

$4.99

$

In Stock, Qty 11

0
