242012x00A - Murray 17 cu. ft. Utility Dump Cart (2003) Utility Dump Cart - 17 Cubic Foot Parts Diagram

17 cu. ft. Utility Dump Cart

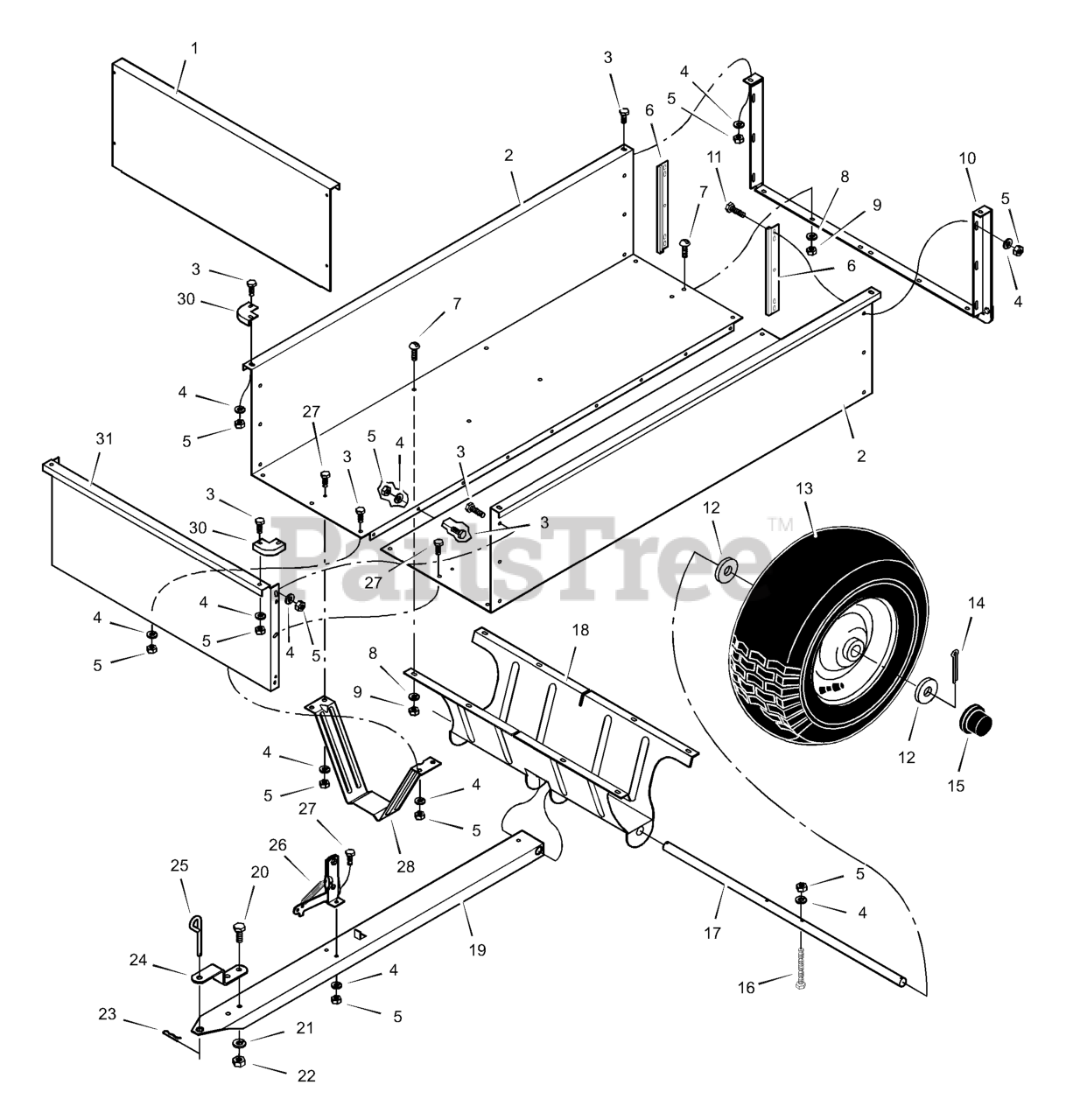

Utility Dump Cart - 17 Cubic Foot Parts Diagram

  • Title

1

Murray 7101314

Tailgate
(Superseded to 7101314YP)

$6.99

$

In Stock, only 1 left!

0

2

Murray 7101319

Panels, Body

$

$

Currently unavailable

3

Murray 7101322

Bolt (M6x13)
(Superseded to 7101322AYP)

$18.99

$

Usually ships in 2-12 days

0

4

Murray 7101331

Lockwasher (Size 6)

$

$

Currently unavailable

5

Murray 7101328

Nut (M6)

$

$

Currently unavailable

6

Murray 7101308

Guides, Tailgate

$

$

Currently unavailable

7

Murray 7101327

Screw (M8x20)

$

$

Currently unavailable

8

Murray 7101332

Lockwasher (Size 8)
(Superseded to 7101669YP)

$866.99

$

Usually ships in 2-12 days

0

9

Murray 7101329

Nut (M8)

$

$

Currently unavailable

10

Murray 7101313

Brace, Tailgate
(Superseded to 7101313YP)

$3.99

$

Usually ships in 2-12 days

0

11

Murray 7101324

Bolt (M6x20)

$

$

Currently unavailable

12

Murray 7101334

Washer (Size 25)

$

$

Currently unavailable

13

Murray 7101320

Wheel & Tire
(Superseded to 7067012YP)

$93.99

$

Usually ships in 2-12 days

0

14

Murray 7101335

Pin, Cotter
(Superseded to 7101335MA)

$5.49

$

Usually ships in 2-12 days

0

16

Murray 7101325

Bolt (M6x45)

$

$

Currently unavailable

17

Murray 7101317

Axle

$

$

Currently unavailable

18

Murray 7101316

Support, Axle

$

$

Currently unavailable

19

Murray 7101318

Drawbar

$

$

Currently unavailable

20

Murray 7101326

Bolt (M10x25)

$

$

Currently unavailable

21

Murray 7101333

Lockwasher (Size 10)

$

$

Currently unavailable

22

Murray 7101330

Nut (M10)
(Superseded to 7101330YP)

$16.99

$

In Stock, only 1 left!

0

23

Murray 7101336

Pin, Hair

$

$

Currently unavailable

24

Murray 7101311

Bracket, Hitch Pin

$

$

Currently unavailable

25

Murray 7101337

Pin, Hitch

$

$

Currently unavailable

26

Murray 7101310

Latch, Release
(Superseded to 7101310YP)

$25.99

$

Usually ships in 2-12 days

0

27

Murray 7101323

Bolt (M6x16)
(Superseded to 7600073YP)

$341.99

$

Usually ships in 2-12 days

0

28

Murray 7101312

Support, Drawbar
(Superseded to 7101312YP)

$128.99

$

In Stock, only 1 left!

0

30

Murray 7101309

Braces, Corner

$

$

Currently unavailable

31

Murray 7101315

Panel, Front

$

$

Currently unavailable

--

Murray F-030902C

Book, Instruction

$

$

Currently unavailable

Murray 7101321

Bail
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0
