242009x00A - Murray 10 cu. ft. Utility Dump Cart (2003) Utility Dump Cart - 10 Cubic Foot Parts Diagram

10 cu. ft. Utility Dump Cart

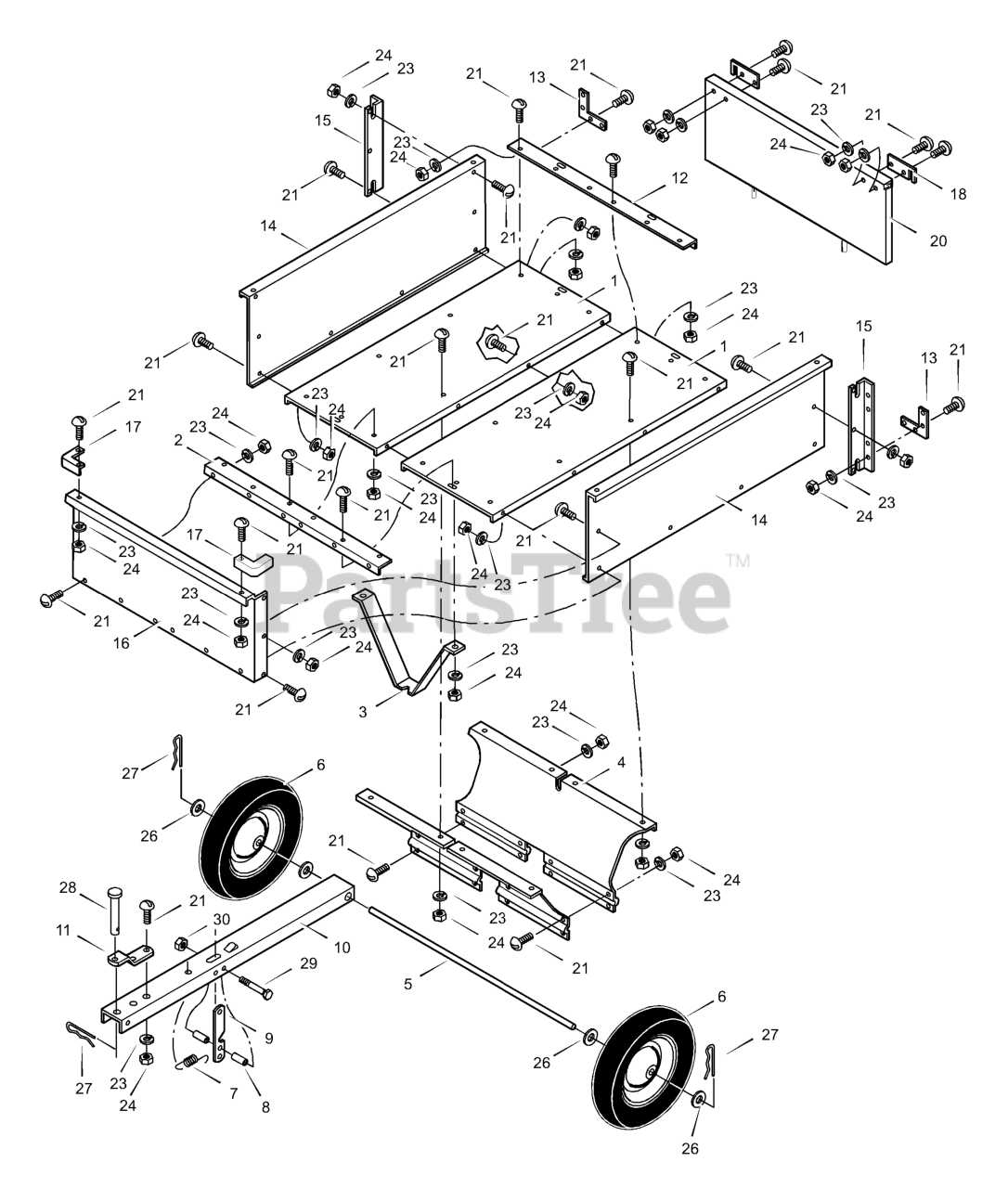

Utility Dump Cart - 10 Cubic Foot Parts Diagram

  • Title

1

Murray 7101297

Panel, Bottom

$

$

Currently unavailable

2

Murray 7101298

Brace, Front Cross

$

$

Currently unavailable

3

Murray 7101259

Support, Tongue

$

$

Currently unavailable

4

Murray 7101260

Support, Wheel Axle

$

$

Currently unavailable

5

Murray 7101261

Axle, Wheel

$

$

Currently unavailable

6

Murray 7101262

Assembly, Wheel / Tire

$

$

Currently unavailable

7

Murray 7101263

Spring, Latch

$1.99

$

Usually ships in 2-12 days

0

8

Murray 7101264

Spacer, Latch

$1.99

$

Usually ships in 2-12 days

0

9

Murray 7101265

Latch, Tongue

$

$

Currently unavailable

10

Murray 7101266

Tongue, Hitch

$

$

Currently unavailable

11

Murray 7101267

Bracket, Hitch Pin

$1.99

$

Usually ships in 2-12 days

0

12

Murray 7101268

Brace, Rear Cross

$6.49

$

Usually ships in 2-12 days

0

13

Murray 7101269

Bracket, Rear Corner

$6.49

$

Usually ships in 2-12 days

0

14

Murray 7101270

Panel, Side
(Superseded to 7101270YP)

$5.49

$

In Stock, only 2 left!

0

15

Murray 7101271

Brace, Rear Corner
(Superseded to 7101271YP)

$68.99

$

Usually ships in 2-12 days

0

16

Murray 7101272

Panel, Front

$

$

Currently unavailable

17

Murray 7101273

Brace, Front Corner

$4.99

$

Usually ships in 2-12 days

0

18

Murray 7101274

Latch, Tailgate

$

$

Currently unavailable

20

Murray 7101276

Tailgate

$

$

Currently unavailable

21

Murray 7101277

Bolt, Truss Head - M8x16

$

$

Not available

23

Murray 7101279

Washer, Lock - 8mm

$1.99

$

Usually ships in 2-12 days

0

24

Murray 7101280

Nut, Hex - 8mm

$1.99

$

Usually ships in 2-12 days

0

26

Murray 7101282

Washer, Flat - 20mm

$

$

Not available

27

Murray 7101283

Pin, Cotter - 3mm

$

$

Not available

28

Murray 7101284

Pin, Hitch - 12.5x64

$

$

Not available

29

Murray 7101285

Bolt, Hex Head - M6x9
(Superseded to 7101285SM)

$5.99

$

Usually ships in 2-12 days

0

30

Murray 7101286

Nut, Nylon - 6mm

$

$

Not available

--

Murray F-030906C

Book, Instruction

$

$

Currently unavailable
