2420 (31CS6KN2B66) - Troy-Bilt Storm 24" Snow Thrower (2023) Handle Panel Parts Diagram

Storm 24" Snow Thrower

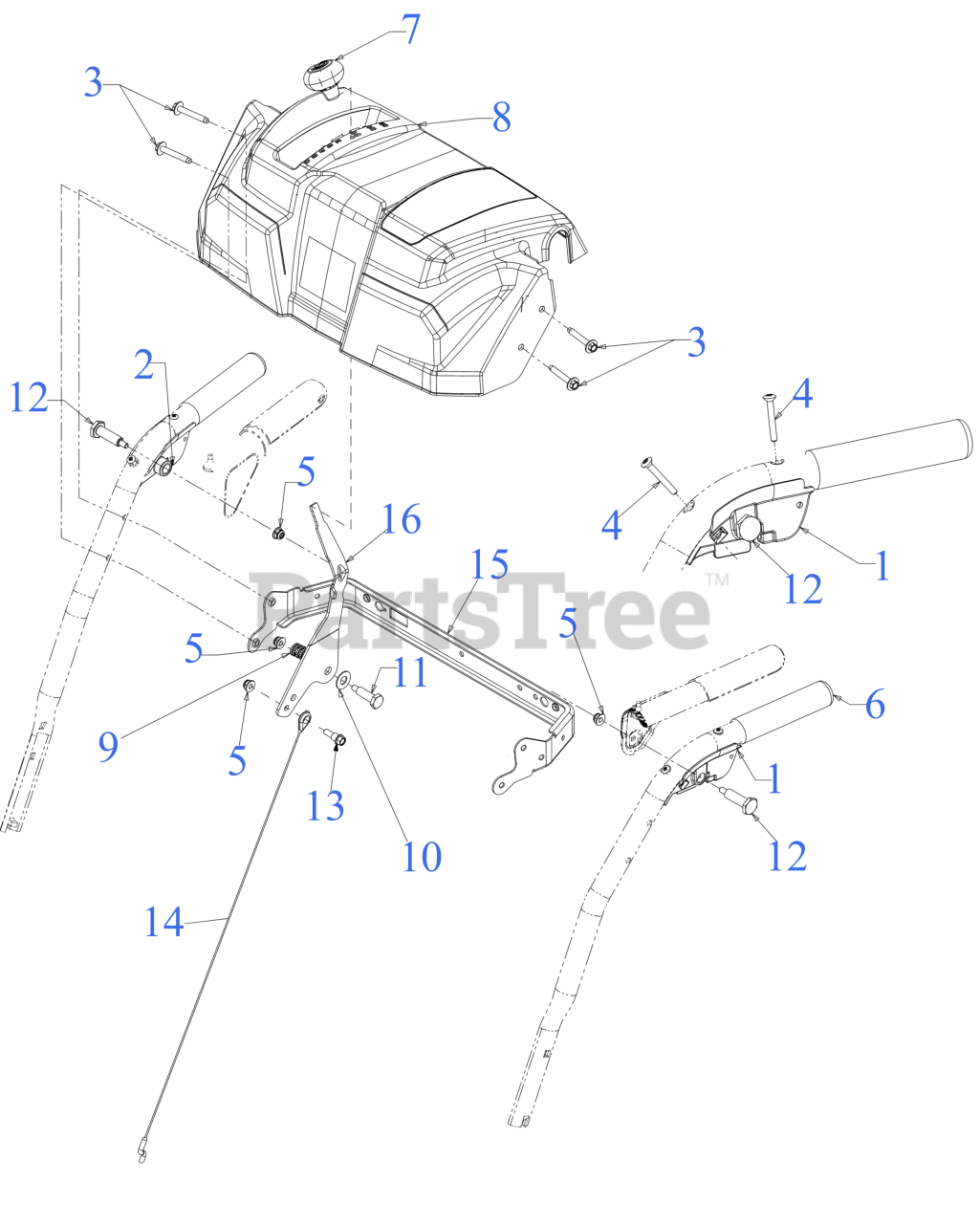

Handle Panel Parts Diagram

  • Title

1

Troy-Bilt 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 8

0

1

Troy-Bilt 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

5

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 720-0274

GRIP

$11.99

$

In Stock, Qty 11

0

7

Troy-Bilt 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 731P05334C

HANDLE PANEL (TROY-BILT)

$72.99

$

In Stock, Qty 5

0

9

Troy-Bilt 732-04756

COMPRESSION SPRING

$3.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 736-05080

FLAT WASHER .401X.88

$3.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 3 left!

0

12

Troy-Bilt 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 738-05149A

SHOULDER SCREW .342X.335X1/4-20

$6.49

$

In Stock, only 2 left!

0

14

Troy-Bilt 746P06984

SELECTION CABLE

$5.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 790-00248E

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00248E-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 5

0

$24.99

$

In Stock, Qty 5

0

16

Troy-Bilt 790-00311C-0637

SHIFT LEVER

$27.99

$

In Stock, only 4 left!

0
