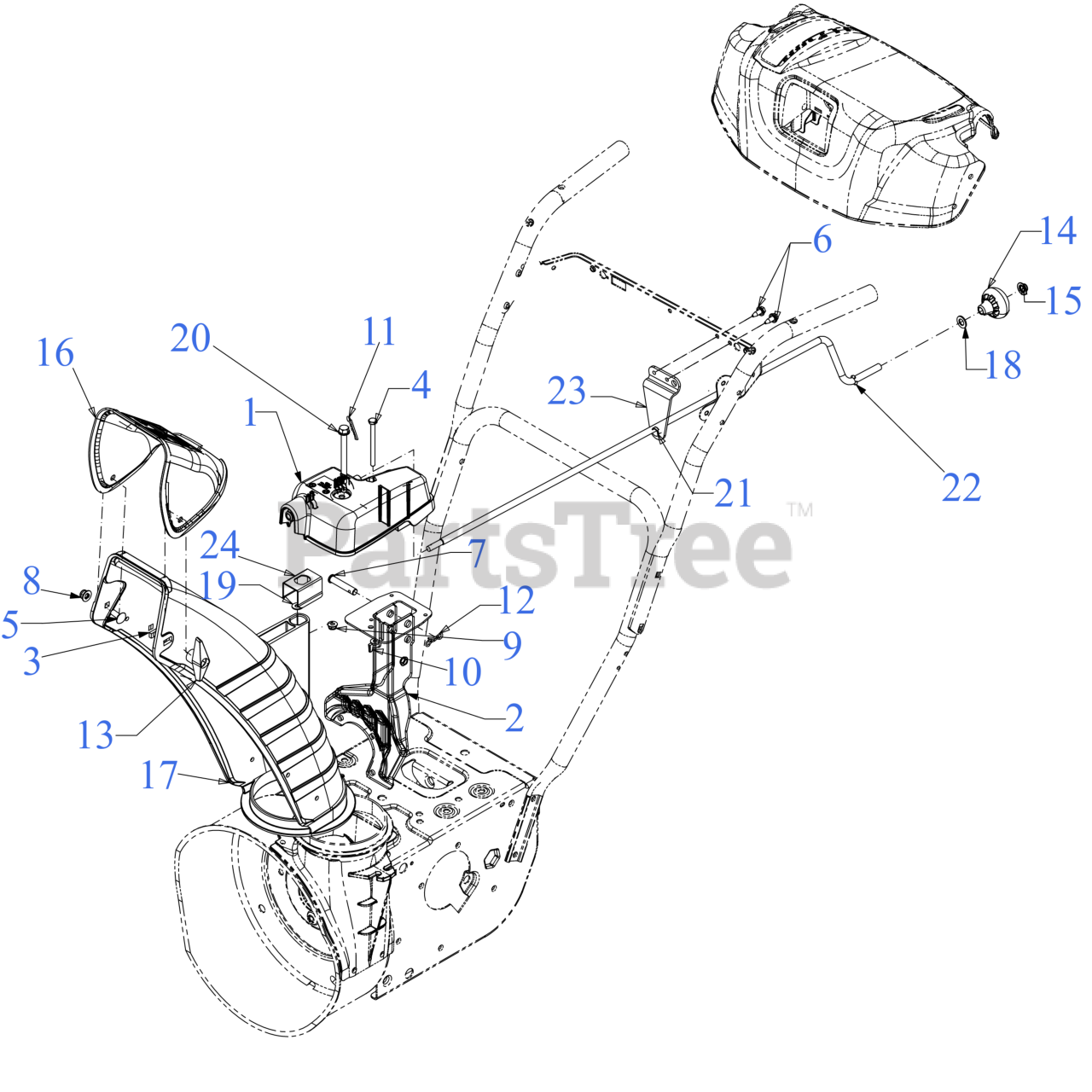

2420 (31AS6KN2B23) - Troy-Bilt Storm 24" Snow Thrower (2022) Chute Parts Diagram

Storm 24" Snow Thrower

Chute Parts Diagram

  • Title
1

Troy-Bilt 618P09920

2-WAY CHUTE ROTATE GEARBOX

Note: (See Separate Breakdown)

$55.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 684-06676

CHUTE SUPPORT ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$27.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 790-00330C

CHUTE SUPPORT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 790-00330C-0637

BRKT-CHUTE SUPPORT - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00330C-4021

BRKT-CHUTE SUPPORT - CUB YELLOW 2 (4021)

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 790-00330C-0606

BRKT-CHUTE SUPPORT - MAJESTIC ORANGE (0606)

$28.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04071

CARRIAGE BOLT 5/16-18 x 1

$4.49

$

In Stock, Qty 10

0

4

Troy-Bilt 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, Qty 8

0

5

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-3087

WING NUT 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 714-0101

INTERNAL COTTER PIN

$4.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 920-0284

WING KNOB NUT
(Superseded to 720-0284)

$

$

Not available

13

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 720-04102

SHIFT KNOB

$6.99

$

In Stock, Qty 17

0

15

$4.49

$

In Stock, Qty 18

0

16

Troy-Bilt 731-04426C

UPPER CHUTE (W/LBL MANUAL TILT)

$19.99

$

In Stock, Qty 9

0

17

Troy-Bilt 731-06440A

LOWER CHUTE 5"

$51.99

$

In Stock, Qty 14

0

18

Troy-Bilt 736-0185

FLAT WASHER

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-04446

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 738-04367

SHOULDER SCREW

$4.99

$

In Stock, Qty 8

0

21

Troy-Bilt 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 747-11530

CHUTE CRANK .375 DIA x 31"

$11.99

$

In Stock, Qty 10

0

23

Troy-Bilt 790-00341-0637

ROD SUPPORT BRACKET

$16.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 790-00503

CHUTE BRACKET

$6.49

$

In Stock, only 3 left!

0
