242 - Husqvarna Chainsaw (SN: 20013500001 & Above) FUEL TANK Parts Diagram

Chainsaw

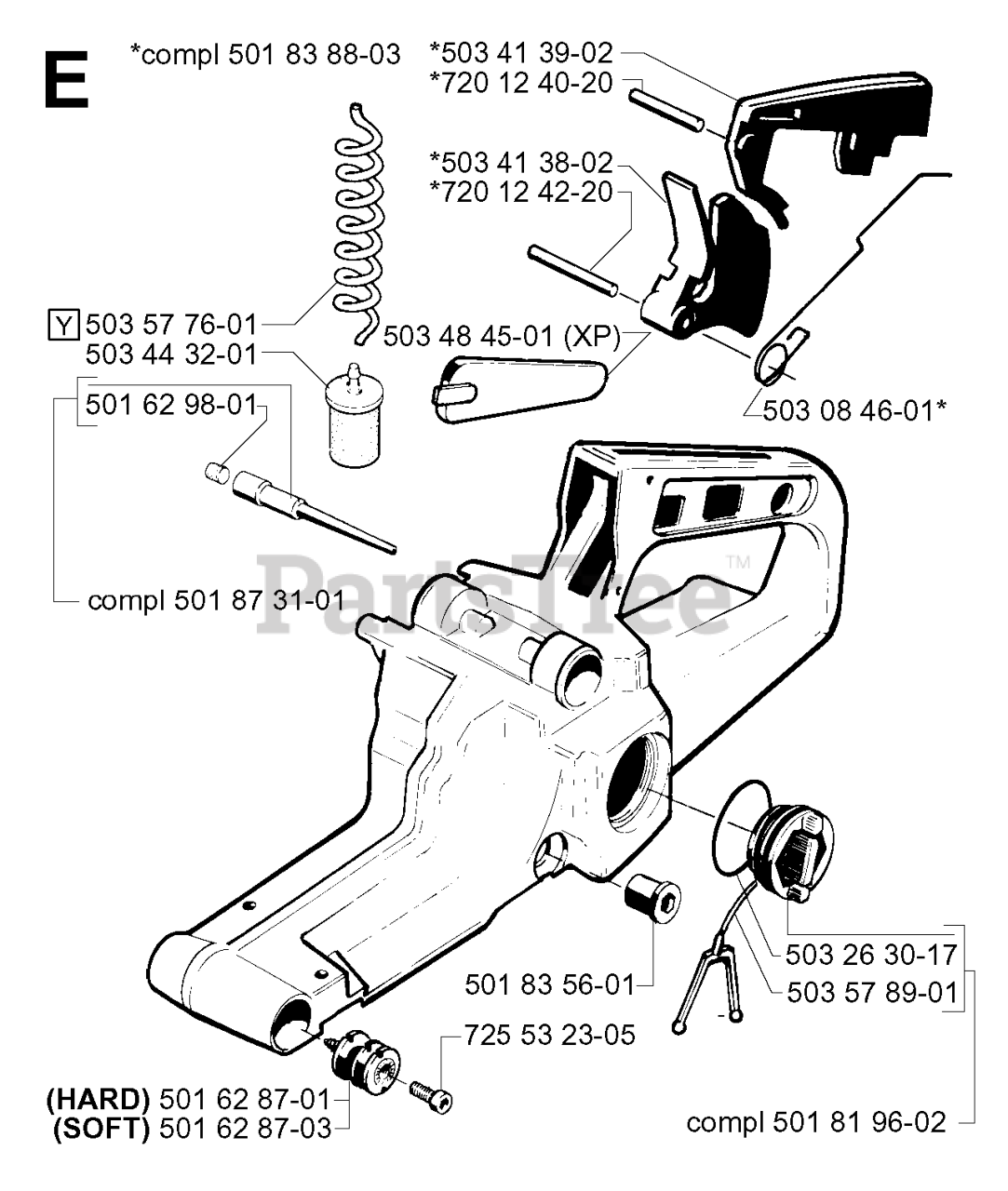

FUEL TANK Parts Diagram

  • Title

503 41 39-02

Husqvarna 503413902

THROTTLE LOCK

$

$

Not available

501 62 87-03

Husqvarna 501628703

ANTIVIBE ELEMENT

$

$

Not available

501 87 31-01

Husqvarna 501873101

FUEL TANK VENT

$13.99

$

In Stock, only 2 left!

0

503 57 76-01

Husqvarna 503577601

FUEL HOSE
(Superseded to 544325001)

$9.99

$

Usually ships in 3-10 days

0

501 81 96-02

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$11.99

$

In Stock, Qty 10

0

501 83 56-01

Husqvarna 501835601

ANTIVIBE ELEMENT

$6.99

$

In Stock, only 1 left!

0

503 57 89-01

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

503 08 46-01

Husqvarna 503084601

SPRING

$

$

Not available

503 48 45-01

Husqvarna 503484501

HANDLE FILLER
(Superseded to 537033401)

Note: XP

$9.49

$

In Stock, Qty 7

0

501 62 98-01

Husqvarna 501629801

VALVE PLUG

$7.49

$

In Stock, only 1 left!

0

501 83 88-03

Husqvarna 501838803

TANK UNIT CPL

$

$

Not available

503 44 32-01

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

720 12 42-20

Husqvarna 720124220

PIN 3X30

$

$

Not available

725 53 23-05

Husqvarna 725532305

SCREW MC6S 5X8
(Superseded to 725532555)

$4.99

$

In Stock, only 4 left!

0

503 26 30-17

Husqvarna 503263017

O-RING

$8.99

$

In Stock, Qty 14

0

503 41 38-02

Husqvarna 503413802

THROTTLE LEVER

$

$

Not available

501 62 87-01

Husqvarna 501628701

ANTIVIBE ELEMENT

Note: HARD

$24.99

$

In Stock, only 1 left!

0

720 12 40-20

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0
