242 - Husqvarna Chainsaw (SN: 19981800001 - 20013500000) SERVICE UPDATES Parts Diagram

Chainsaw

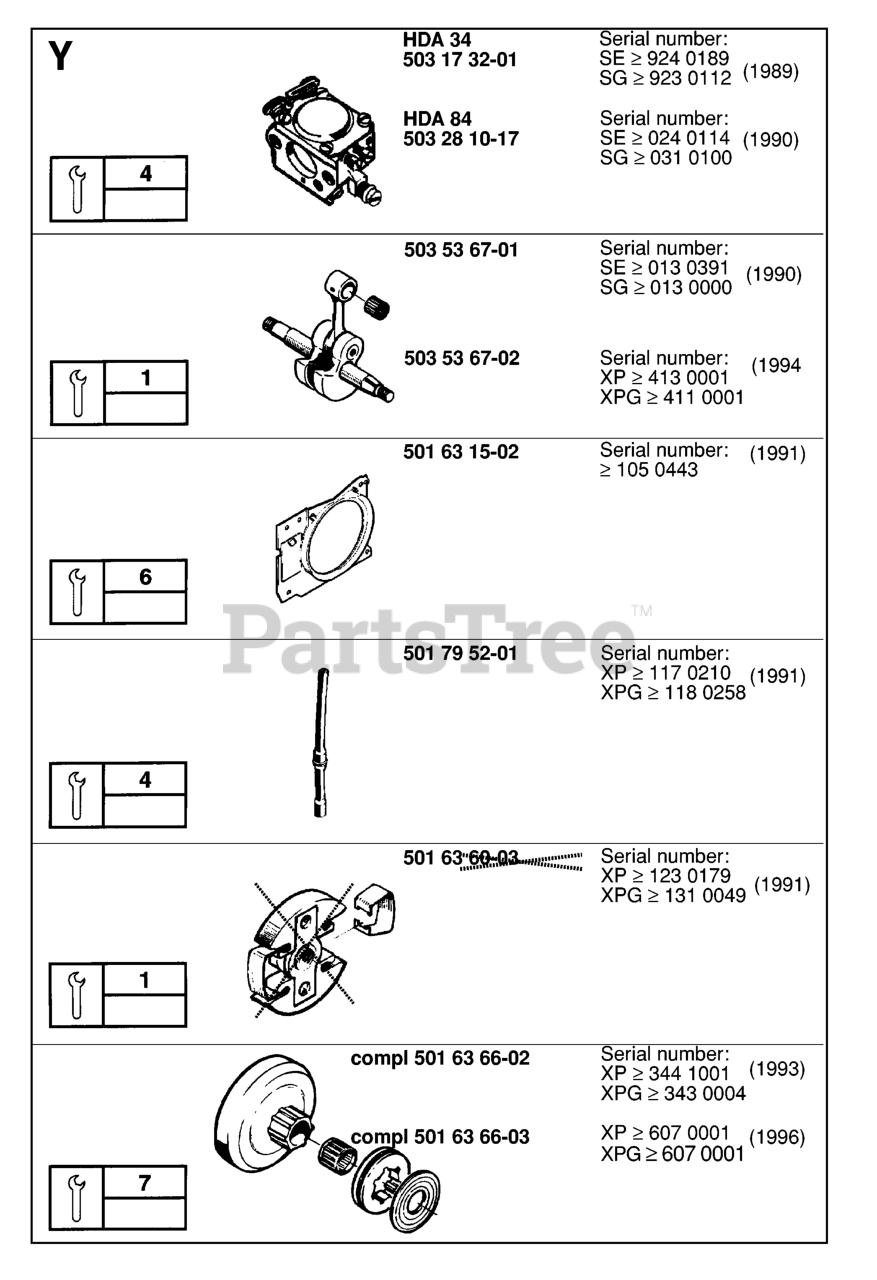

SERVICE UPDATES Parts Diagram

  • Title

503 53 67-02

Husqvarna 503536702

CRANKSHAFT CPL
(Superseded to 503536704)

Note: SERIAL NUMBER: XP GREATER THAN OR EQUAL TO 413 0001 XPG GREATER THAN OR EQUAL TO 411 0001 (1994

$

$

Not available

501 63 15-02

Husqvarna 501631502

AIR CONDUCTOR

Note: SERIAL NUMBER: GREATER THAN OR EQUAL OR 105 0443 (1991)

$

$

Not available

501 79 52-01

Husqvarna 501795201

FUEL HOSE

Note: SERIAL NUMBER: XP GREATER THAN OR EQUAL TO 117 0210 XPG GREATER THAN OR EQUAL TO 118 0258 (1991)

$6.99

$

Usually ships in 3-10 days

0

501 63 66-02

Husqvarna 501636602

CLUTCH DRUM
(Superseded to 501636604)

Note: SERIAL NUMBER: XP GREATER THAN OR EQUAL TO 344 1001 XPG GREATER THAN OR EQUAL TO 343 0004 (1993)

$

$

Not available

503 28 10-17

Husqvarna 503281017

CARBURETOR CPL
(Superseded to 503281019)

Note: HDA 84 SERIAL NUMBER: SE GREATER THAN OR EQUAL TO 024 0114 SG GREATER THAN OR EQUAL TO 031 0100 (1990)

$198.48

$

Usually ships in 3-10 days

0

503 53 67-01

Husqvarna 503536701

CRANKSHAFT CPL
(Superseded to 503536703)

Note: SERIAL NUMBER: SE GREATER THAN OR EQUAL TO 013 0391 SG GREATER THAN OR EQUAL TO 013 0000 (1990)

$

$

Not available

503 17 32-01

Husqvarna 503173201

REPL BY 503 28 10-17
(Superseded to 503281019)

Note: HDA 34 SERIAL NUMBER: SE GREATER THAN OR EQUAL TO 924 0189 SG GREATER THAN OR EQUAL TO 923 0112 (1989)

$198.48

$

Usually ships in 3-10 days

0

501 63 66-03

Husqvarna 501636603

CLUTCH DRUM
(Superseded to 501636605)

Note: XP GREATER THAN OR EQUAL TO 607 0001 XPG GREATER THAN OR EQUAL TO 607 0001 (1996)

$

$

Not available

501 63 60-03

Husqvarna 501636003

CLUTCH ASS'Y
(Superseded to 503657101)

Note: SERIAL NUMBER: XP GREATER THAN OR EQUAL TO 123 0179 XPG GREATER THAN OR EQUAL TO 131 0049 (1991)

$

$

Not available
